www.ti.com
EVM User's Guide: LP5890EVM
LP5890 48x16 Common Cathode Matrix LED Display
Driver Evaluation Module
Description

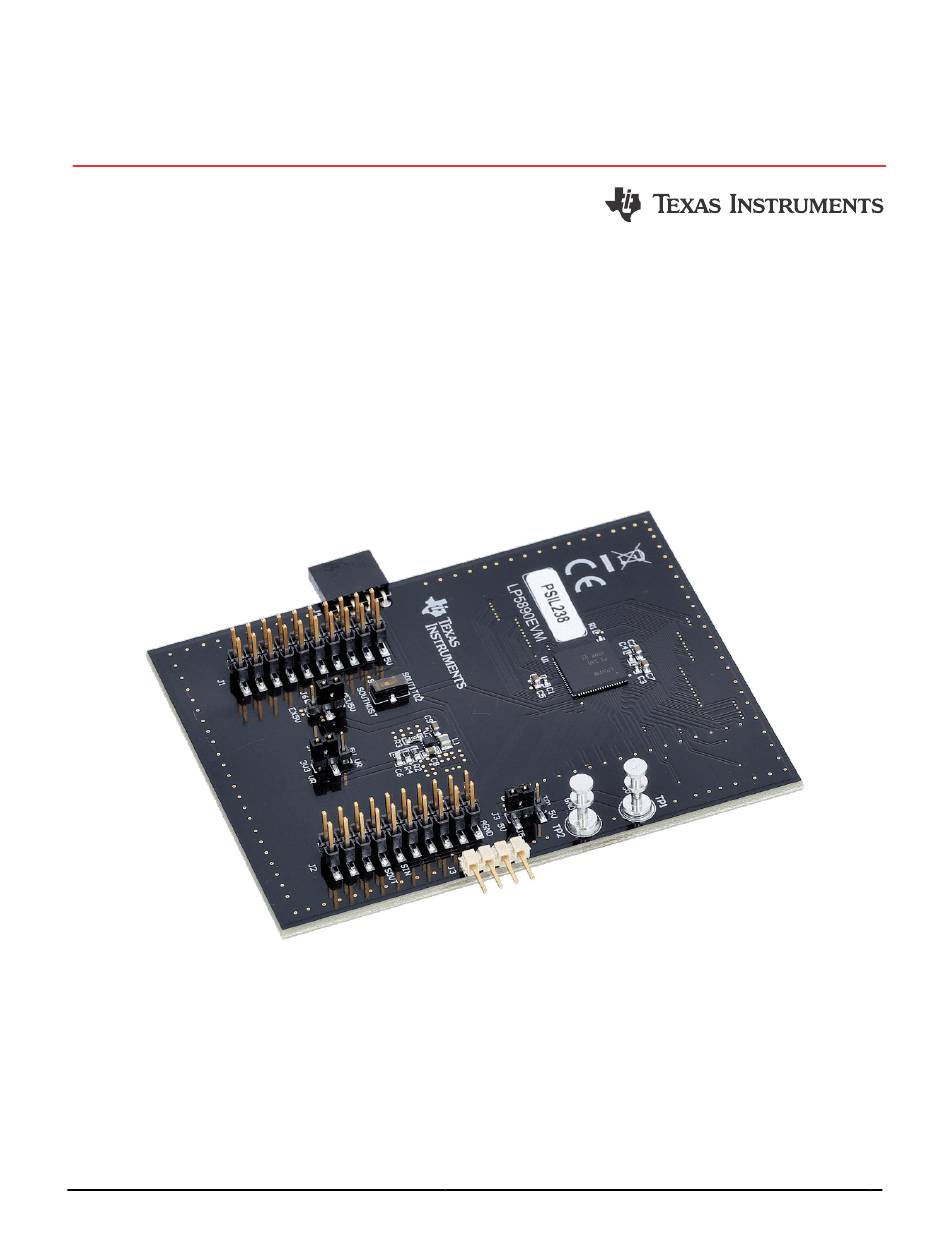

The LP5890 evaluation module (EVM) is used to
evaluate the characteristics, operation, and usage
for matrix LED display driver LP5890. The LP5890
is a highly integrated, common cathode matrix LED
display driver with 48 constant current sources and 16
scanning FETs.
Features
48 current source channels from 0.2mA to 20mA
16 scan line switches with 190mΩ RDS(ON)
SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024
Submit Document Feedback
Ultra-low power consumption
High-speed and low EMI continuous clock series
interface (CCSI)
Applications
LED digital signage
Keyboard and
Major and smart home appliances
Smart
Audio
Access equipment, switches, and servers
LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation
Copyright © 2024 Texas Instruments Incorporated
gaming accessories
speaker, wired and
wireless speaker
mixer,
DJ
equipment, and
Description
broadcast
1
Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP5890 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LP5890

  • Page 1 Access equipment, switches, and servers • 16 scan line switches with 190mΩ RDS(ON) SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    The LP5890 is a highly integrated, common cathode matrix LED display driver with 48 constant current sources and 16 scanning FETs. One LP5890 is capable of driving 16 × 16 RGB LED pixels, while stacking two LP5890 can drive 32 × 32 RGB LED pixels, which simplifies component placement and control. With the common cathode structure, the device supports separated power supplies for the red, green, and blue LEDs to achieve low power consumption.
  • Page 3 The LED side of the LP5890EVM board is shown in Figure 2-2. Figure 2-1. Driver IC Side of the LP5890EVM Board SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 TP1 (+5 V) External power supply that can be selected for VLEDG/VLEDB and DC/DC. TP2 (GND) Supply ground. LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Test Setup

    If the switch is set towards "SOUTHOST", the serial data output from LP5890 chip is sent back to the host controller. • If the switch is set towards "SOUT1TO2", the serial data output from the first LP5890 chip is sent to J4 port, which is further sent to the second chip if several LP5890EVM are cascaded. •...
  • Page 6 Power the TMS320F280039C LaunchPad through the USB cable. e. Connect TP1 and TP2 to 5V/GND power source. Power on 5V/GND power supply. LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback Copyright ©...
  • Page 7 2.2.3 Hardware Setup for Dual Cascaded Devices The LP5890EVM can be cascaded in a daisy chain. In such case, each LP5890 works in the independent mode (compared to the stackable mode). The host TMS320F280039C LaunchPad sends the serial data to the first LP5890 through the 40-pin BoosterPack Header.
  • Page 8 . This user's guide also provides guidance on software setup for LED fault diagnostics, multiple CCSI buses, cascading devices, and animation control. LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback Copyright ©...
  • Page 9 TMM-103-01-G-S-SM TMM-103-01-G-S-SM TMM-103-01-G-S-SM PPPC041LGBN-RC TSW-104-08-G-S-RA CAS-120TA Figure 4-2. LP5890EVM Schematic (2 of 4) SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 R21C G31C CAS-120TA CAS-120TA CAS-120TA CAS-120TA Figure 4-3. LP5890EVM Schematic (3 of 4) LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 EAST1616RGBA8 Line15 Figure 4-4. LP5890EVM Schematic (4 of 4) SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation Submit Document Feedback Module Copyright © 2024 Texas Instruments Incorporated...
  • Page 12: Pcb Layout

    Figure 4-5. LP5890EVM Top Layer Figure 4-6. LP5890EVM Signal Layer 1 Figure 4-7. LP5890EVM Signal Layer 2 Figure 4-8. LP5890EVM Bottom Layer LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback...
  • Page 13: Bill Of Materials

    2A High Efficiency Synchronous Buck TPS62825DMQT Texas Instruments Converter, DMQ0006A (VSON-HR-6) 5 Additional Information 5.1 Additional Resources More information about the LP5890 can be found at: • LP5890 data sheet, product information and support | TI.com • LP5890EVM Evaluation board | TI.com •...
  • Page 14: Revision History

    Changed instructions to use LAUNCHXL-F280039C instead of MSP430F5529 LaunchPad......• Changed instructions to use LP589x(-Q1)/TLC698x Sample Code User's Guide ..........LP5890 48x16 Common Cathode Matrix LED Display Driver Evaluation SLVUCJ6A – NOVEMBER 2022 – REVISED AUGUST 2024 Module Submit Document Feedback...
