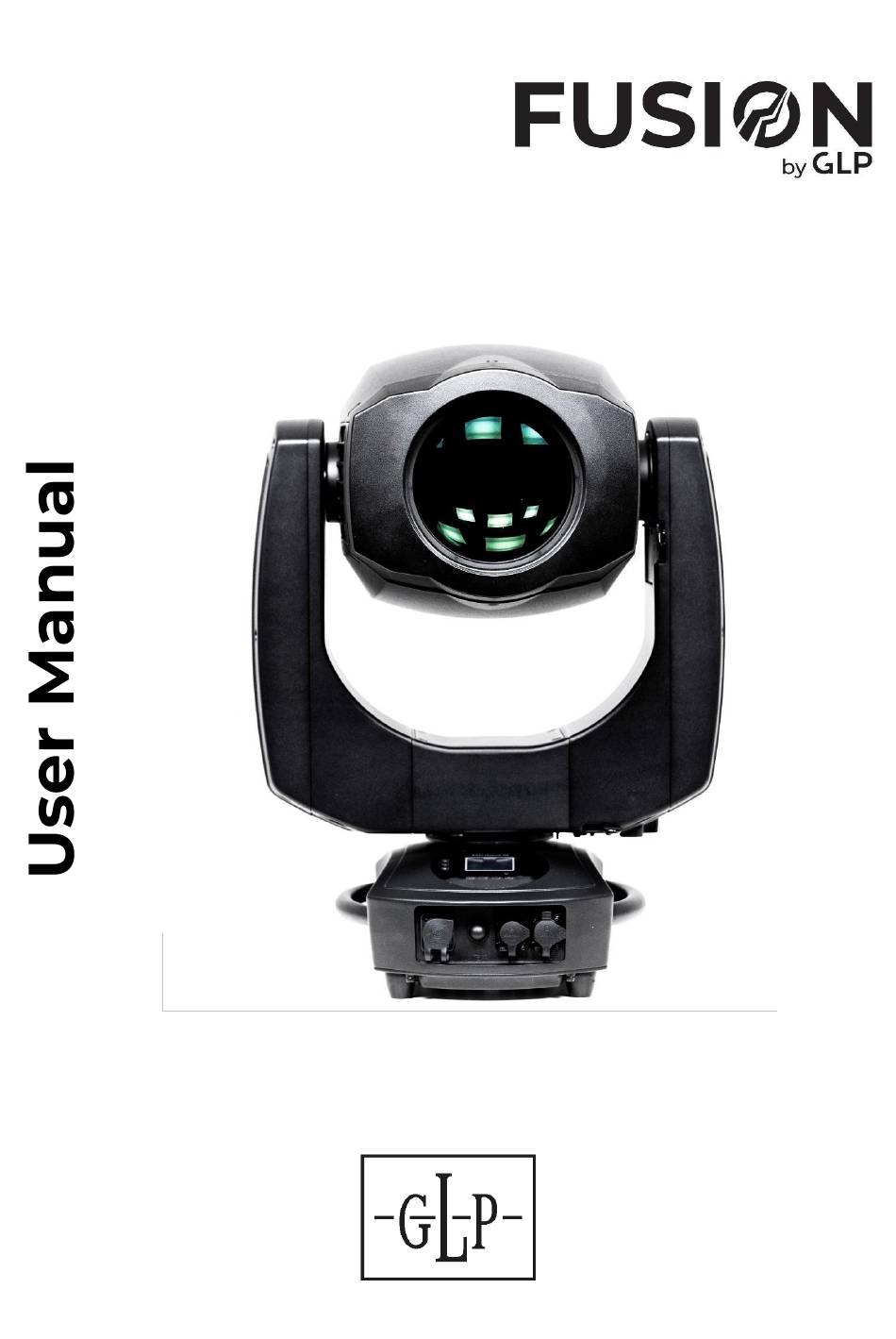

- Page 1 Exo Hybrid 40 Document revision: 20241028-02 Fixture software version 0.2.2...
-
Page 2: Document Revisions
GLP® Fusion Exo Hybrid 40 User Manual © 2023-24 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries. -
Page 3: Table Of Contents
Safety............................4 Key to symbols ......................4 GLP Service and Support ..................5 Avoiding damage to the fixture ................ 5 Fusion Exo Hybrid 40 overview ................6 Features ..........................7 Control options ......................7 User setting presets ....................7 Pan and Tilt ........................7 Fixture performance (speed) options ............ -
Page 4: Safety
If you have any doubts or questions about how to use the GLP® Fusion Exo Hybrid 40 lighting fixture safely, contact your GLP supplier for assistance. Your GLP supplier will be happy to help. -
Page 5: Glp Service And Support
German Light Products® The Fusion Exo Hybrid 40 is intended for use by experienced professionals with the knowledge and skills to set up, operate, and maintain high-powered, remotely controlled lighting equipment safely and efficiently. These operations require expertise that may not be provided in this manual. -
Page 6: Fusion Exo Hybrid 40 Overview
2. Fusion Exo Hybrid 40 overview Figure 1. Fusion Exo Hybrid 40 overview A - Head B – Tilt Lock C - Pan Lock D - Control panel with backlit display and NFC sensor E - AC mains power IN (powerCON TRUE1 TOP) -
Page 7: Features
(Fixture Settings → Load Settings and Service → Advanced → Save Settings). Pan and Tilt The Fusion Exo Hybrid 40 has motorized pan and tilt movement with coarse and fine (16 bit) control channels. Direction of movement With the fixture standing on the ground: •... -
Page 8: Fixture Performance (Speed) Options
The PWM frequency of the LED dimming can be adjusted if you have problems with camera flicker using the Fixture Settings → PWM Frequency option. The PWM Frequency is shown on the top line of the screen. Higher PWM frequencies will reduce the dimming performance / resolution. Fusion Exo Hybrid 40 User Manual... -
Page 9: Shutter
Special/Control DMX channel are also available via RDM. Zoom The Fusion Exo Hybrid 40 has motorized zoom control that lets you vary the beam angle from narrow to wide as the DMX value increases. The “Performance” Setting allows you to limit the Zoom speed to control the noise made by the zoom movement. -
Page 10: Color Mix / Color Wheel / Ctc
It is possible to rotate the full gobo wheel through all gobos. 0: open (not shown) 1: Round stairs 2: Little dots 3: Shattered 4: Zebra 5: Center Mark 6: Crossed lines 7: Block of lines 8: Ornament Gobos are interchangeable. Fusion Exo Hybrid 40 User Manual... -
Page 11: Gobo Wheel 2 (Static)
German Light Products® Gobo Wheel 2 (static) Gobo Wheel 2 is a fixed wheel with 11 positions. A gobo shake effect may be added and it is possible to continuously rotate the wheel through all gobos. 0: open (not shown) 1: large dot 2: medium dot 3: small dot... -
Page 12: Control Panel
See Figure 3. The top line of the default information screen shows: ● DMX Mode ● LED Dimming PWM (top right) ● Input control source Fusion Exo Hybrid 40 User Manual... -
Page 13: Using The Control Panel
Pressing UP or DOWN three times calls up an overview of all main fixture information, signal quality and settings. This can be useful if you are troubleshooting or if you are in contact with GLP Service. Toggle Display Orientation Pressing and releasing UP and DOWN together rotates the display through 180°. -
Page 14: Error Messages
The display flashes if the DMX signal is lost (the fixture will then behave according to its No Signal setting. Service and maintenance See the separate Fusion Exo Hybrid 40 Quick Start and Safety Manual supplied with the fixture and available for download from www.glp.de for information on service and maintenance. -
Page 15: Control Menu Structure
Calls up overview of all main Live Diagnostic fixture information, signal quality and settings. Enables connectivity to the iQ.Service Connect >>>Connect<<< GLP iQ.Service App for 5 minutes. User Setting >>>Confirm<<< Preset 1 User Setting >>>Confirm<<< Loads custom user settings... -
Page 16: Main Menu
Main menu The following menus and commands are available in the Fusion Exo Hybrid 40 control panel. Options may also be set by RDM. Some options can be changed while operating using the Control/Settings channel. Menus Notes DMX Address Set fixture’s DMX start... - Page 17 German Light Products® Menus Notes 9600Hz 25000Hz Fixture blacks out if no Blackout DMX signal received Fixture continues to Hold display current effect if no No Signal Mode DMX signal received Plays the stored captured No Signal scene (see next menu Scene item) if no DMX signal received...
- Page 18 Zoom (Press and Note: This function is not hold for 3 … fixture calibration! secs.) Lamp Hours Power Cycles Press Enter for 3 seconds Reset counters LED Hours to confirm Max Temperature Service Timer Fusion Exo Hybrid 40 User Manual...
- Page 19 German Light Products® Menus Notes Confirm 2 Preset 1 seconds Saves current fixture Confirm 2 Save User Settings Preset 2 settings as user settings seconds preset Confirm 2 Preset 3 seconds Load factory defaults Reloads all factory default settings and default fixture configuration >>>Confirm by pressing Enter<<<...
