Unitron Z10 Series Supplemental Assembly Instructions

Dual-discussion head zoom stereo microscope
Hide thumbs Also See for Z10 Series:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
73 Mall Drive • Commack, NY 11725 • www.accu-scope.com • Phone (631) 864-1000 • Fax (631) 543-8900
Dual-Discussion Head Zoom Stereo Microscope
SUPPLEMENTAL ASSEMBLY INSTRUCTIONS

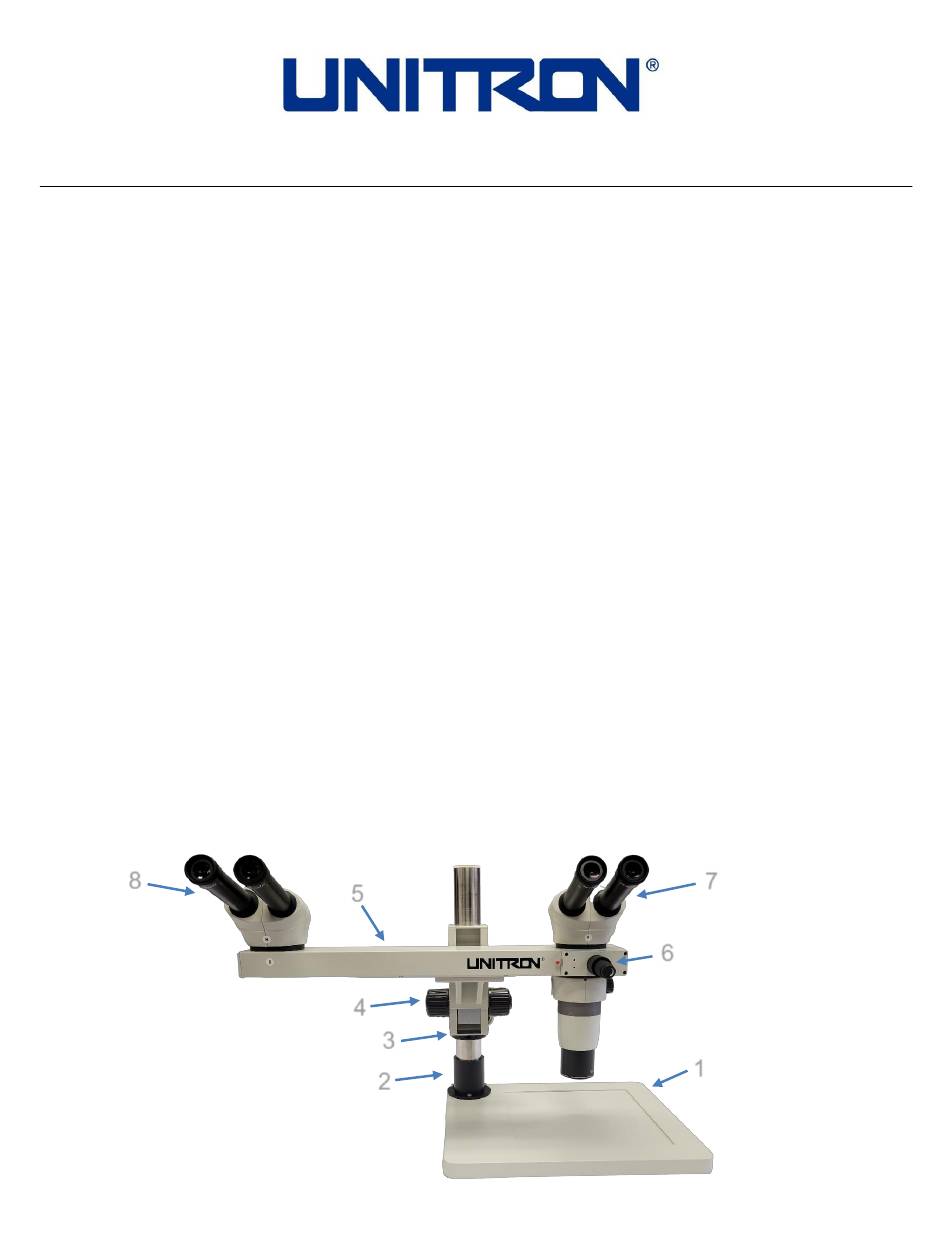

Quick Assembly Diagram
1 Base
2 Support Column
3 Safety Collar
4 Focus Assembly
5 Optical Bridge
6 LED Pointer Unit
7 Primary Viewing Head & Eyepieces
8 Secondary Viewing Head & Eyepieces
8
7
5
6
4
3
1
2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z10 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Unitron Z10 Series

Summary of Contents for Unitron Z10 Series

  • Page 1 73 Mall Drive • Commack, NY 11725 • www.accu-scope.com • Phone (631) 864-1000 • Fax (631) 543-8900 Dual-Discussion Head Zoom Stereo Microscope SUPPLEMENTAL ASSEMBLY INSTRUCTIONS Quick Assembly Diagram 1 Base 2 Support Column 3 Safety Collar 4 Focus Assembly 5 Optical Bridge 6 LED Pointer Unit 7 Primary Viewing Head &...

  • Page 2: Detailed Setup

    Dual-Discussion Head Zoom Stereo Microscope SUPPLEMENTAL ASSEMBLY INSTRUCTIONS Detailed Set Up Set-up on a sturdy, level surface with a minimum space requirement of 18(d) x 36(w) inches for the side-by-side orientation, or 30(d) x 20(w) inches for the front-to-back orientation. Assembly The instructional steps below will act as a guide for step-by-step assembly.
  • Page 3 3. Insert the locking handle into the focus assembly. 4. Secure on the post. The distance between the safety collar and the base should be set at 60mm for standard configurations. Depending on your set-up, you may need to adjust this height after assembly.
  • Page 4 6. You will need to remove the indicated dust caps as you assemble the following steps. Leave each cap until you are ready to install that component. 7. Secure the Magnification Changer to the bottom of the Primary Viewing Head side indicated by the LED Pointer Unit.
  • Page 5 9. Attach the Primary Viewing Head marked “A” to the correspondingly labeled slot. You will need to use the 2mm Hex wrench on the highlighted set screw. 10. Attached the Secondary Viewing Head marked “B” to the correspondingly labeled slot. You will need to use the 2mm Hex wrench on the highlighted set screw.
  • Page 6 LED Pointer Unit On/Off LED Pointer Unit power cable plugs in here Ring Light attaches Glass insert plate rests here if applicable here if applicable Adjusting the Pointer Brightness NOTE: If the pointer is not in the field of view, rotate the pointer controller to move the pointer to the center of the field of view.
