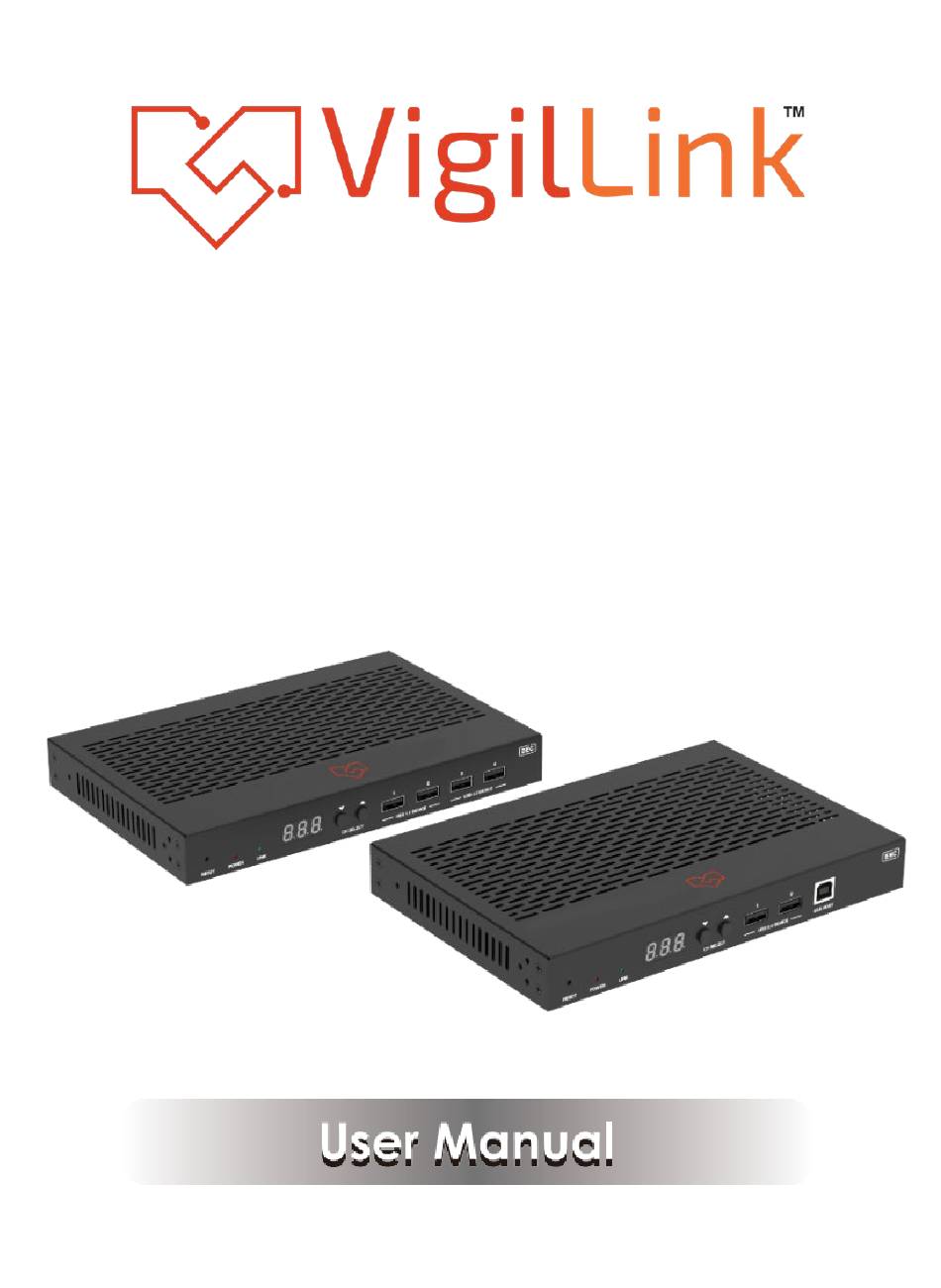

- Page 1 4K60 over IP 1GbE with Video Wall Processing VLIP-JP4K6K_ED VLIP-JP4K6K_DC VER 2.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended. This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This product is based on JPEG2000 technology. It integrates Copper port and Fiber port within a single box. Encoder input supports up to 4K60 4:4:4, audio embedding or extracting. Decoder output supports up to 4K60 4:4:4, audio extracting. The product supports ARC/eARC/SPDIF/Analog audio return function, also supports USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS- 232, two-way IR and POE function. -
Page 4: Package Contents
☆ Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9) ☆ Intelligent video wall class management ☆ Support MJPEG Substream real-time preview ☆ 1G Ethernet Switch ☆ Support POE function ☆ Built-in web page configuration and control, Telnet and SSH as well ☆... -
Page 5: Specifications
4. Specifications Technical HDMI Compliant HDMI 2.0b HDCP Compliant HDCP 2.2 Video Bandwidth 18Gbps Video Compression JPEG2000 Standard Video Network Bandwidth Video Resolution Up to 4K@60Hz 4:4:4 Input: 8/10/12-bit Color Depth Output: 8-bit Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD HDMI Audio Formats... - Page 6 Input: 1 x SPDIF IN [Optical audio connector] 1 x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] Output: 1 x HDMI OUT [Type A, 19-pin female] 1 x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] Control: 1 x RS-232 [3.81mm Phoenix connector] 1 x LAN (POE) [RJ45 jack] 1 x FIBER [Optical fiber slot] Decoder...
-
Page 7: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Encode r Pa ne l 20 19 17 18 16 Name Function Description After powering on the device, press and hold the RESET button until the POWER LED and LINK LED flash at the same RESET time, release the button to reset the device to factory settings. - Page 8 IR signal input port. The IR level can be set to 5V or 12V IR IN (default) through the panel buttons. VCC: Power output (12V or 5V configurable), maximum to 12V @50mA, 5V@ 100mA loading. The default output is 12V. RELAYS: 2 channel low-voltage relay ports, each group is independent and isolated, maximum to 1A 30VDC loading.
- Page 9 1G LAN port, connect network Switch to form a distributed system. LAN (POE) Note: When network switch delivers POE power supply, DC 12V adapter doesn't need to apply on the unit. Data Signal ▪ Light flashing: There is data transmission. Indicator lamp ▪...
- Page 10 seconds to confirm the setting and stop flashing. Note: The device ID can not be modified in Controller Box mode. 5. EDID settings: After entering the configuration mode, press the UP/DOWN button to enter the second page with “E00” (in which “E” refers to EDID, “00”...
- Page 11 and hold UP + DOWN buttons for 5 seconds to confirm the setting and stop flashing. The corresponding IR mode options are as follows: IR1: 5V IR wire IR2: 12V IR wire 7, Audio return mode settings: After entering the configuration mode, press the UP/ DOWN button to enter the fourth page with “ARC/SPD/ANA”...
-
Page 12: Decoder Panel
IP1: Static IP mode IP2: DHCP IP mode IP3: Auto IP mode Note: (1) The IP mode can not be modified in Controller Box mode. (2) After entering various setting modes, you can hold down the DOWN button to exit the current interface quickly, or if you do not perform any operation within 5 seconds, it will automatically return to the previous interface. - Page 13 Shows the selected Encoder ID as default. Displays the corresponding options of configuration functions during setting LED screen Decoder configurations. CH SELECT Used to set Decoder ID and other settings. USB 1.1 Connect to USB 1.1 devices, such as Keyboard or Mouse. DEVICE Connect to USB 2.0 devices, such as USB flash disk or USB USB 2.0...
- Page 14 SPDIF signal input port. SPDIF IN HDMI signal output port, connected to an HDMI display device HDMI OUT such as TV or monitor. Connect with optical fiber module, and receive signals from the FIBER Encoder with an optical fiber cable directly or through a Switch. 1G LAN port, connect network Switch to form a distributed system.
- Page 15 for 5 seconds, then release to enter the ID settings mode, in which the ID number (e.g. 001) on the LED screen will flash at 1Hz, then press the UP/DOWN button to select the device ID you desired (ID range: 000~767), then press and hold UP + DOWN buttons for 5 seconds to confirm the setting and stop flashing.
- Page 16 7, Audio return mode settings: After entering the configuration mode, press the UP/ DOWN button to enter the fourth page with “ARC/SPD/ANA” displaying on the LED screen. Press and hold UP + DOWN buttons for 5 seconds, then release to enter the audio return mode settings mode, in which the audio return mode (ARC/SPD/ANA) on the LED screen will flash at 1Hz, then press the UP/DOWN button to select the mode, then press and hold UP + DOWN buttons for 5 seconds to confirm the setting and stop...
-
Page 17: Ir Pin Definition
1.3 IR Pin De finit ion IR RECEIVER IR BLASTER IR BLASTER IR RECEIVER Power 12V 17/29... -
Page 18: Rack Mounting Instruction
6. Rack Mounting Instruction 6.1 6U V2 Ra ck Mount ing This product can be mounted in a standard 6U V2 rack (Please contact your supplier for 6U V2 rack sale). The mounting steps are as follows: Step 1: Use included screws to fix two mounting ears on the product, as shown in the figure below: Step 2: Insert the product with mounting ears into a 6U V2 rack (6/8/10 units can be installed vertically), as shown in the figure below:... - Page 19 Step 3: Use screws to fix mounting ears on the rack to complete the mounting, as shown in the figure below: 19/29...
- Page 20 6.2 1U V2 Ra ck Mount ing This product also can be mounted in a standard 1U V2 rack (2 units can be installed horizontally). The mounting steps are as follows: Step 1: Use included screws to fix two 1U V2 rack brackets on two products respectively, as shown in the figure below: Step 2: Use screws to fix two 1U V2 rack brackets together, as shown in the figure below:...
-
Page 21: Mjpeg Substream Operation Introduction
7. MJPEG Substream Operation Introduction 7.1 MJPEG Subs t re a m Pre vie w / Configura t ion via We b Pa ge The product supports playing MJPEG Substream on computer through the corresponding software such as VLC media player, simultaneously you can access the Web page to configure the MJPEG Substream. - Page 22 Note: (1) The window in the lower left corner displays the Host names of all devices in the current network. (2) The window in the lower right corner displays the Host name, IP address and Port number of the device. (3) The Host name of Encoder starts with AST-ENC;...
- Page 23 Step 4: According to the IP address of the Encoder/Decoder found through the bonjour protocol checking tool, input “http://IP:PORT/?action=stream” into the web browser on PC. The MJPEG Substream will be displayed with the default resolution, as shown in the figure below. Step 5: Change the resolution of the obtained Encoder/Decoder IP address in the following format.
-
Page 24: Vlc Media Player Instruction
After changing, input the new Encoder/Decoder IP address into the web browser on PC, the MJPEG Substream will be displayed with the desired resolution, as shown in the figure below. 7.2VLC Me dia Pla yer Ins t ruct ion Firstly, perform the step 1~3 as described in Chapter 7.1, then open the VLC media player on PC. - Page 25 Click “Media > Open Network Stream” After clicking the “Open Network Stream” option, the following page will appear. 25/29...
- Page 26 Enter the MJPEG Substream network URL, then click “Play” button. Choose “Tools>Codec information”, a pop-up window will display and show you Stream information, as shown in the figure below. 26/29...
-
Page 27: Switch Model
Choose “Tools>Codec information>Statistics” to check current Bitrate. Please see the following picture. Note: The Bitrate is floating up and down when you check it. This is a normal phenomenon. 8. Switch Model A network Switch used to set up the system should support below features: 1. -
Page 28: K Over Ip System Control
9. 4K over IP System Control This product can be controlled by Controller Box or third-party controller. details of 4K over IP system control, please refer to the user manual of “Video over IP Controller”. 10. Application Example Controller Box M C U IR I N IO LEVEL... - Page 29 Note: (1) For the default IP mode of Control LAN port of the Controller Box is DHCP, the PC also needs to be set to “Obtain an IP address automatically” mode, and a DHCP server (e.g. network router) is required in the system. (2) If there is no DHCP server in the system, 192.168.0.225 will be used as the IP address of Control LAN port.
