Summary of Contents for VigilLink VLPT-82HT70V

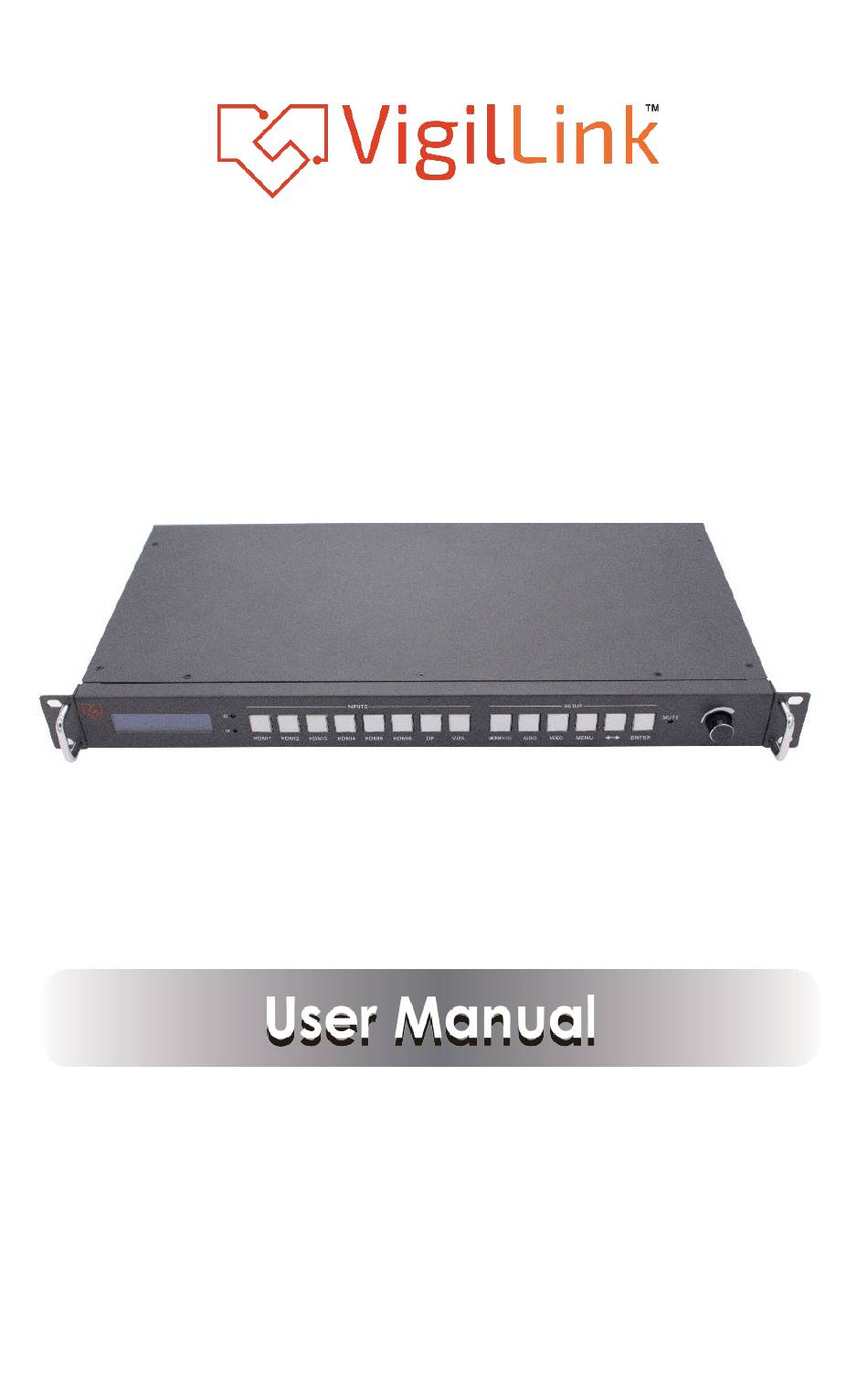

  • Page 1 8x2 HDMI 2.0 Presentation Switcher VLPT-82HT70V VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3: Introduction

    1. Introduction The 18Gbps 8x2 seamless UHD presentation switcher supports multi-format signal processing. Supported video resolution is up to 4K@60Hz 4:4:4. The product can scale the video, extract or embed the audio, and output the signal through 1 HDMI port and 1 HDBaseT port. For Audio output, there are 2x20W speaker output and balanced stereo audio output.
  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 DP Version DP 1.2 Video Bandwidth 18Gbps Video Resolution 800x600@60Hz,1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz,1280x1024@60Hz,1360x768@60Hz, 1366x768@60Hz,1400x1050@60Hz,1440x900@60Hz, 1600x1200@60Hz,1680x1050@60Hz, 1920x1200@60Hz. Input Video Resolution 480p,576p,720p,1920x1080i,1920x1080p,3840x2160@ 24Hz/25Hz/30Hz/50Hz/60Hz, 4096x2160@24Hz/25Hz/ 30Hz/50Hz/60Hz. Note: This device does not support 4:2:0 color space Auto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@ 30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1280x720@ Output Video Resolution...
  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Switcher Panel Front Panel MUTE HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 MICROPHONE AUDIO VIDEO MENU ENTER Name Function Description Display EDID, output resolution, audio configuration and so LCM screen When the product is powered on, the red LED will be on;...
  • Page 6 Rear Panel AUDIO INPUTS RS-232 CTL MICROPHONE IN SPKR LINE OUT RS-232 RS-232 BP MIC 48V LINE I1 I2 O1 O2 HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 SERVICE HDMI HDBaseT Name Function Description LAN port: Connect to a router. PC control RS-232 CTL: Connect to a PC or control system.
  • Page 7: Hdbaset Receiver Panel

    5.2 HDBaseT Receiver Panel Name Function Description Plug the DC 12V/1A power cord into this port and connect DC 12V the adapter to AC wall outlet. Connect to IR receiver cable, the IR signal will emit to IR IR IN OUT port of the switcher.
  • Page 8: Microphone Connection

    6. Microphone Connection - 6 -...
  • Page 9: Rs-232 And Lan Control

    7. RS-232 and LAN Control 7.1 RS-232 Connector RS-232 control, baud rate 9600, 3-pin Phoenix connector. Pins configuration is as bellow. 7.2 Ethernet Control and Connection Note:Factory default network setting: 7.3 PC Tool 7.3.1 RS-232 Control Step 1. Connect the device to PC through the RS-232 port. Step 2.
  • Page 10 User can do the following operations on the above page: ① EDID MANUAL User can read the EDID of displays or open one existing EDID file and write to input ports . This EDID data will be stored in device as manual EDID data. ②...
  • Page 11 ④ IO Configure This is used for some special control To get I1 level as below steps. To set O1 level to low as below steps. 7.2.2 LAN/WEB Control Step 1. Connect the device to PC through the LAN port, then set the IP address of PC to be in the same network segment with the switcher.
  • Page 12: Connection Diagram

    8. Connection Diagram Speaker MIC Cable Receiver Audio Cable CAT Cable HDMI Cable VGA Cable HDMI Cable DP Cable HDMI Source × 6 TV BOX APPLE TV Desktop PC - 10 -...
