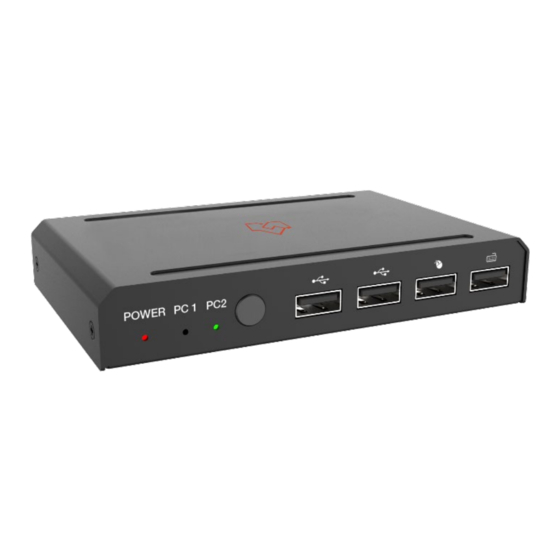

- Page 1 VLKV-HDU21 HDMI/USB-C 2x1 KVM Switcher VER 1.02...
- Page 2 Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
- Page 3 1. Introduction This video switcher can switch HDMI or USB-C input device signals (such as PC, laptop, Mac) to 1 HDMI display device (such as TV, projector, LED display) and realize 2 signal source devices to share 1 display device. It supports video resolution up to 4K2K@60Hz 4:4:4.
- Page 4 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 / 1.x Video Bandwidth 18Gbps Video Resolution 4Kx2K@24/30Hz, 4K2K@60Hz Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) HDMI Audio Formats PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio HDR, HDR 10, HDR 10+, and Dolby vision USB2.0 (Data transfer rate up to 480MB/S)
- Page 5 5. Operation Controls and Functions 5.1 Front Panel Name Function Description When the product is powered on, a red LED will be on. POWER LED Input status indicators. When the input source is PC 1/2 LED selected, the corresponding PC 1/2 LED will be on. Press the button to select the input signal source, and the corresponding PC 1/2 LED will be on.
- Page 6 Connect to mouse or keyboard for KVM control. ▪ Mouse operation： 1. Slide the mouse beyond the upper and left interface of the screen to select the last input port. 2. Slide the mouse beyond the bottom and the proper interface of the screen to determine the next input port.
- Page 7 5.2 Rear Panel Name Function Description DC 5V DC 5V-12V power input port. HDMI signal output port. Connect to HDMI display HDMI OUT device with HDMI cable. USB HOST USB signal input port. Connect to PC with USB cable. HDMI signal input port. Connect to HDMI source device HDMI IN with HDMI cable.
- Page 8 6. Application Example HDMI and HDMI High-Definition Multimedia interface and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
