Enwork Stealth Conference Table Installation Manual page 4

3) ASSEMBLIES/SUB ASSEMBLIES AND PROCESS

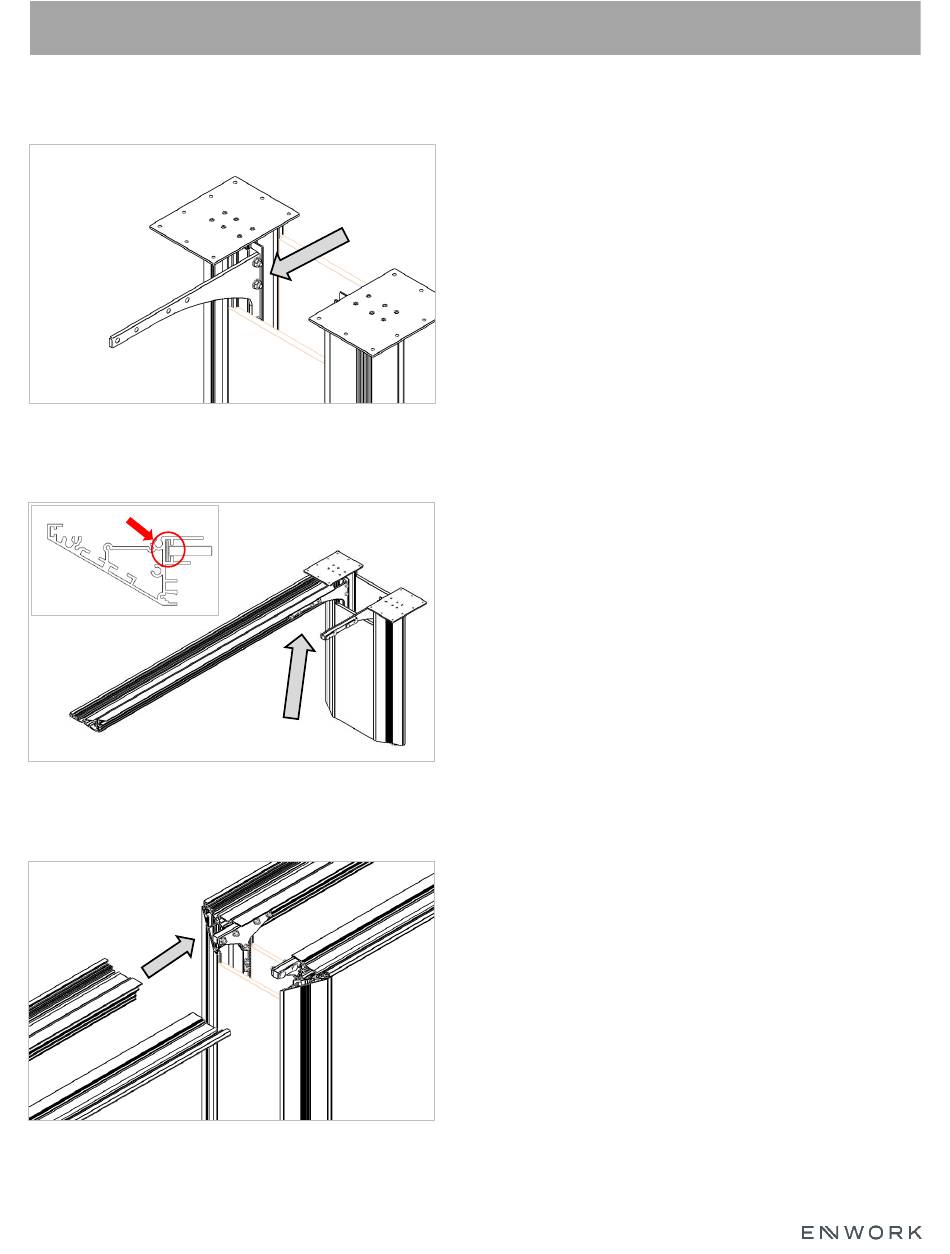

Fig 3.1
Fig 3.2
Fig 3.3
TI0084 Stealth Installation Guide REV a
Attach brackets to end base using the large spacer
blocks, LY.MTPs and 5/16-18 flange nuts.
Repeat on other side.
Attach brackets to beams using large spacer
blocks, LY.MTPs and 5/16-18 flange nuts.
Repeat on other side.
Note: LY.MTPs are installed into the slot as shown
be the solid red arrow.
Attach mid base to beams using mid base
brackets, a large spacer block, a small spacer
block, LY.MTPs, and 5/16-18 flange nuts.
Note: Only in mid base application.
DATE: 07/11/23
