INSTALLATION INSTRUCTIONS
Rem
®
Pressure Balance
Shower Valve Trim Kit
Model D35100500
To be used with D35000500.191
Pressure Balanced Shower Valve
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has

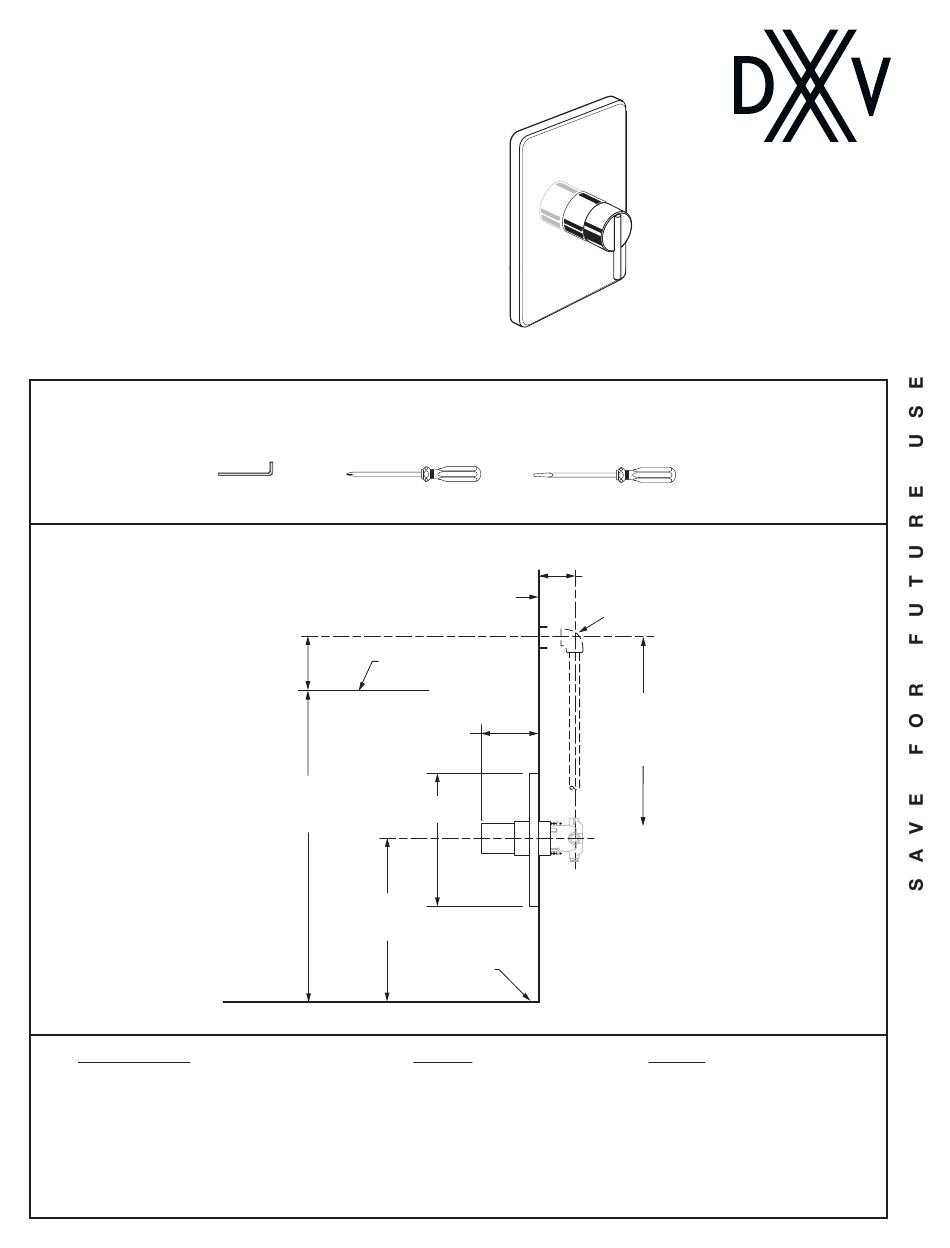

ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Hex Wrench
Phillips Screwdriver
(Supplied)
BOTTOM OF
SHOWER HEAD
(76 TO 102 mm)
74" FOR HEAD
CLEARANCE
(OPTIONAL)
(1880 mm)
48" TO 54"
(1219 TO 1372 mm)
OPTIONAL
Flat Blade Screwdriver
FINISHED WALL
3" TO 4"
8-3/8"
(213 mm)
BOTTOM OF TUB
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
1-5/8" TO 3-1/4"
(41 TO 83 mm)
1/2" (13 mm) I.P.S.
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
80'' & 86''
(2032 & 2184 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965493 Rev. 1.6 (5/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Rem D35100500
Summary of Contents for DXV Rem D35100500
- Page 1 Shower Valve Trim Kit Model D35100500 To be used with D35000500.191 Pressure Balanced Shower Valve Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL VALVE TRIM Figure 1. Turn off hot and cold water CAUTION supplies before beginning. VALVE CARTRIDGE • When finished tiling the wall, remove PLASTER GUARD (1). • Figure 1. Push CAP (2) over VALVE CARTRIDGE until seated against stop. •...
- Page 3 ADJUST HOT LIMIT STOP (MUST BE DONE PRIOR TO TRIM INSTALLATION) By restricting HANDLE rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1) reduces risk of accidental scalding. To set the maximum hot water temperature of your faucet, all you need to do is adjust the setting on the HOT LIMIT SAFETY STOP (1).
