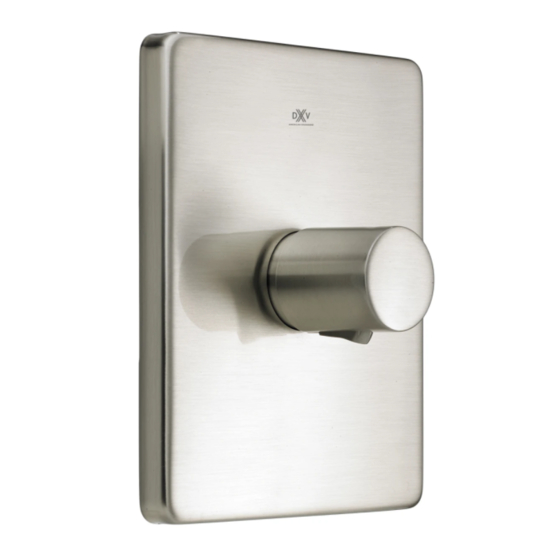

INSTALLATION INSTRUCTIONS

®
Rem
1/2" (13 mm) & 3/4" (19 mm)
Thermostatic Mixing Valve Trim Kit
Model D35100510
To be used with
D35000510.191 - 1/2" Thermostatic Mixing Valve
D35000530.191 - 3/4" Thermostatic Mixing Valve
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.

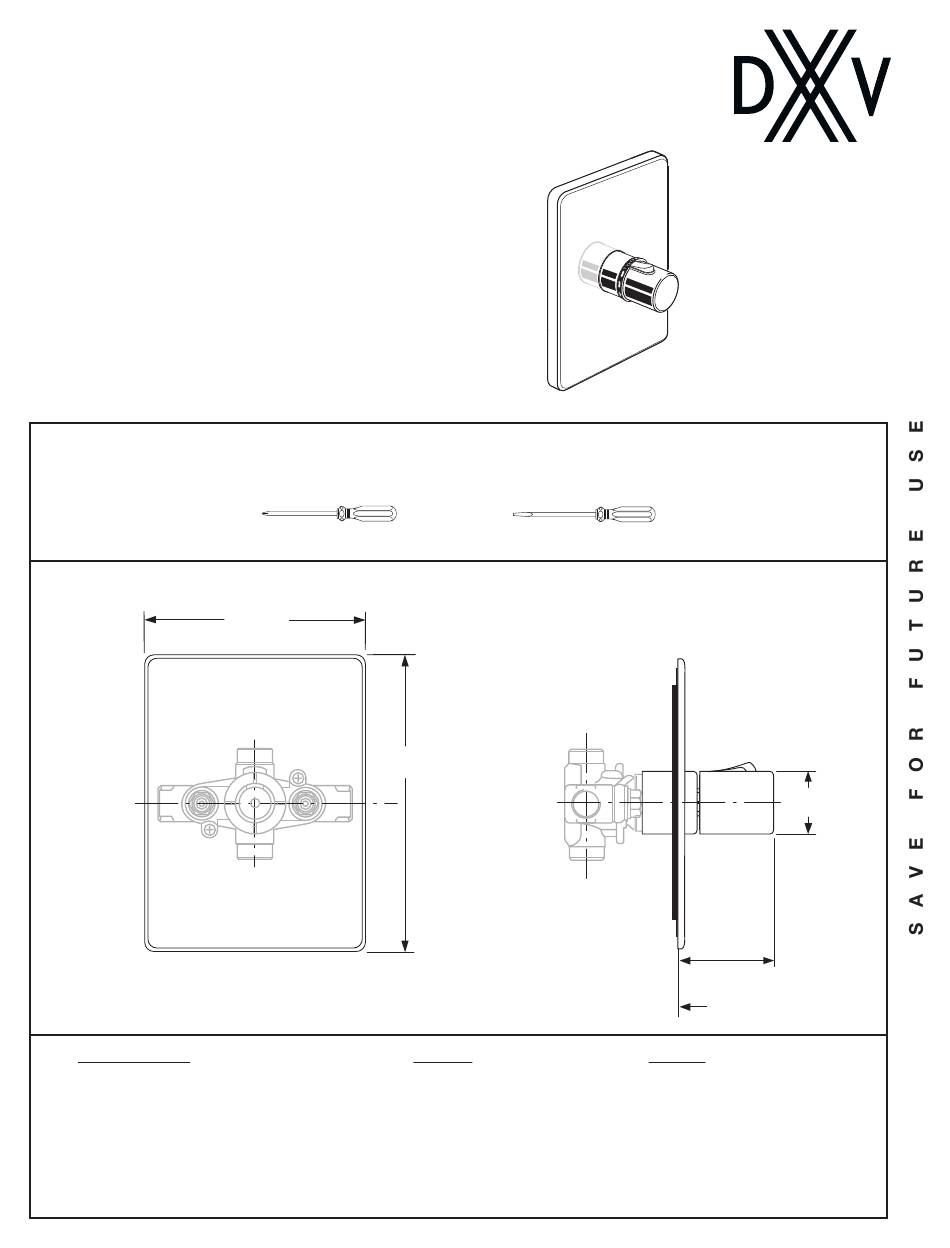

ROUGHING-IN DIMENSIONS:

• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Phillips Screwdriver
6-5/8"
(168 mm)
8-3/8"
(213 mm)
Flat Blade Screwdriver
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
1-7/8"
(48 mm)
2" to 3"
(51 mm to 76 mm)
FINISHED WALL
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965498 Rev. 1.3 (5/17)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rem D35100510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DXV Rem D35100510

Summary of Contents for DXV Rem D35100510

  • Page 1: Installation Instructions

    To be used with D35000510.191 - 1/2" Thermostatic Mixing Valve D35000530.191 - 3/4" Thermostatic Mixing Valve Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
  • Page 2 TEMPERATURE CALIBRATION • Unscrew PLASTER GUARD SCREWS and remove PLASTER GUARD. • Check that arrow marking “B” points vertically upwards. If not, push the BLACK CLAMP on the SECURING RING to the right, pull off KNOB MOUNT and reinstall KNOB MOUNT with| arrow “B” pointing upwards. •...
  • Page 3 HANDLE INSTALLATION • Push TEMPERATURE-CONTROL KNOB (1) onto KNOB MOUNT (2). • Attach TEMPERATURE CONTROL KNOB (1) to valve with ATTACHMENT SCREW (3). Push HANDLE (4) onto TEMPERATURE CONTROL KNOB (1). • Tighten SET SCREW (5) with HEX WRENCH (6) to secure HANDLE (4). OPERATING THE VALVE •...
  • Page 4 ® 1/2" (13 mm) & 3/4" (19 mm) Thermostatic Mixing Valve Trim KIT MODEL NUMBER D35100510 Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL H960680.XXX THERMO CARTRIDGE COVER H961241.191 TRIM PLATE HOLDER H961281.XXX TRIM PLATE A860821.XXX HANDLE ADAPTER A860822.XXX HANDLE A860826.191...
