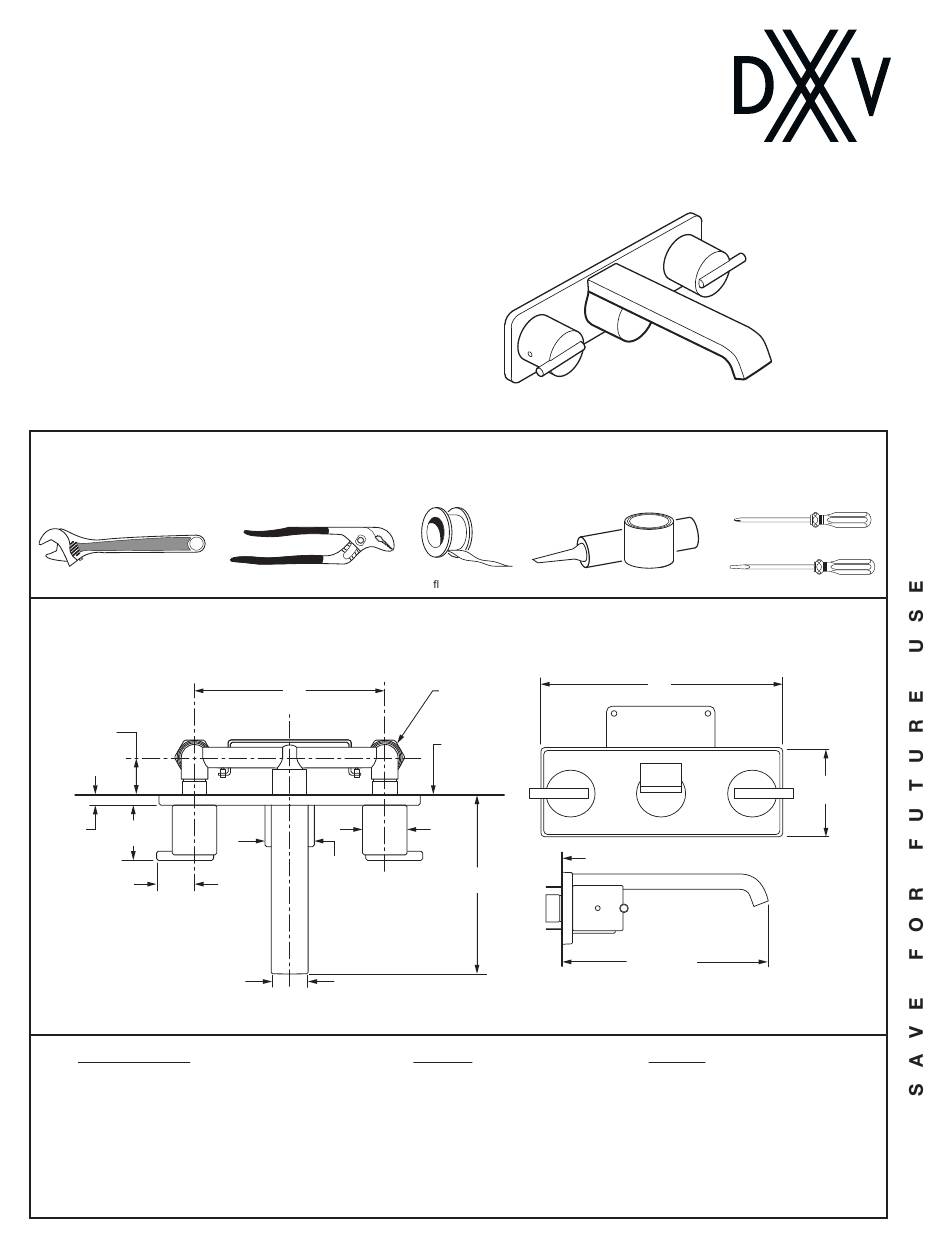

INSTALLATION INSTRUCTIONS

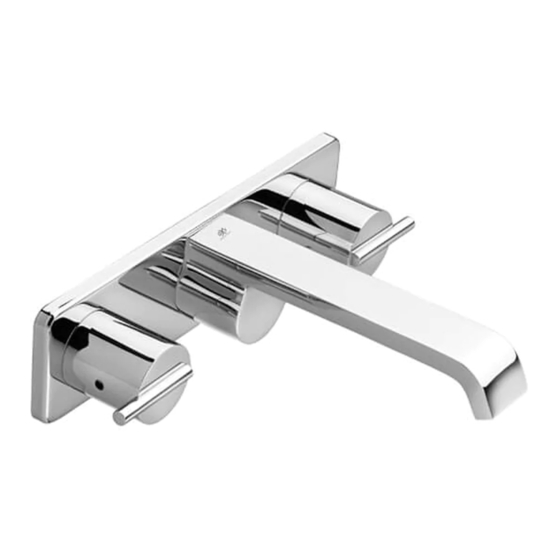

Rem
®
Trim Kit for Wall-Mounted
Vessel Lavatory Faucet
Lever Handles
Model D3510045C
To be used with D35000450.191
Dual Control Wall Mount Lavatory Rough
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench

ROUGHING-IN DIMENSIONS:

• For reference
1-5/8"-2-1/2"
(41 to 62 mm)
2-3/4"
1/2"
(70 mm)
(13 mm)
1-1/2"
(37 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
Te on Tape
8"
1/2" NPT
(203 mm)
UNION INLETS
FINISHED
WALL
1-7/8"
(48 mm)
2" D.
(51 mm)
1-5/8" (41 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Plumbers' Putty or Caulking
FINISHED WALL
8"
(203 mm)
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
11"
(279 mm)
(102 mm)
8-1/2"
(215 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965701 Rev. 1.1 (5/17)
4"
