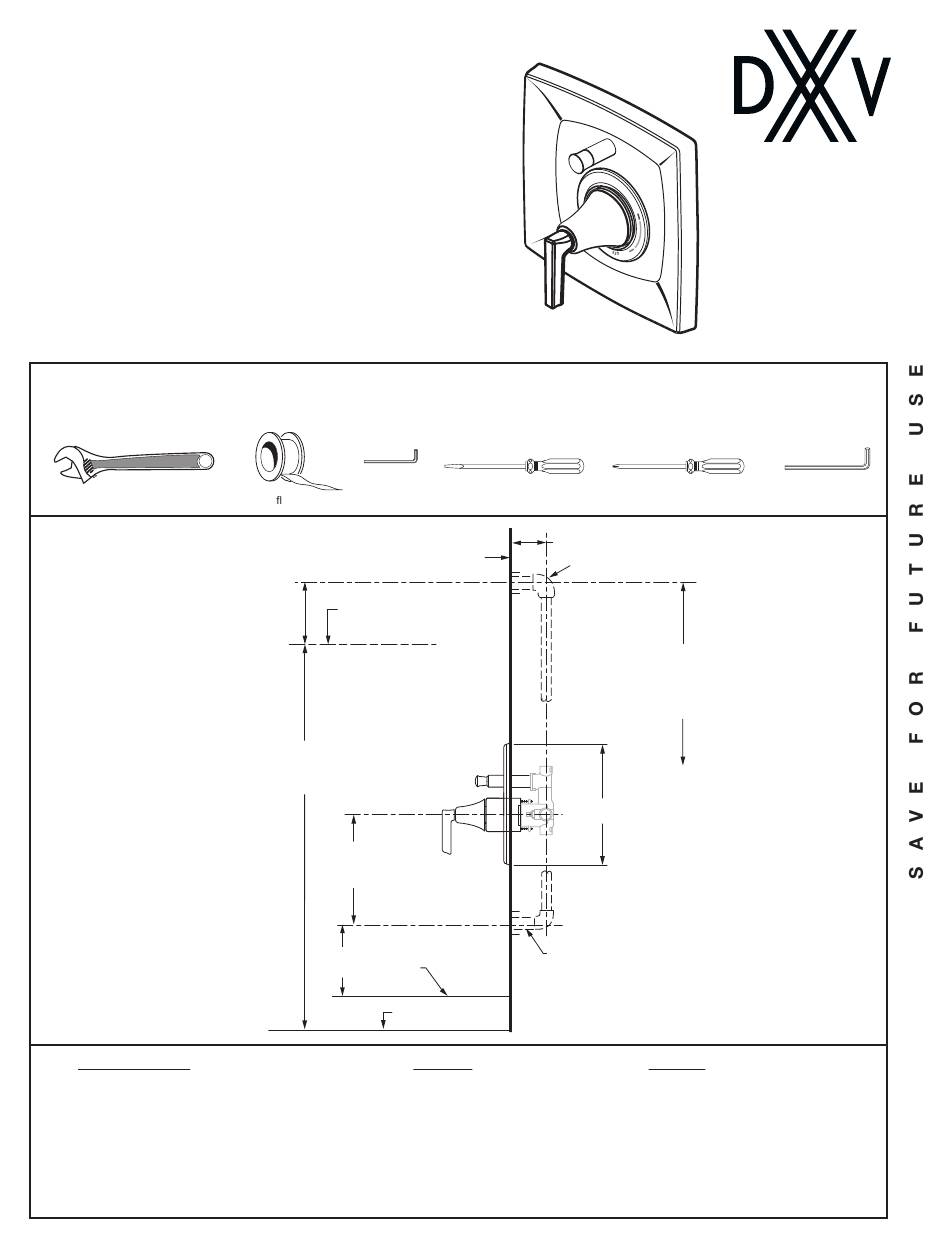

INSTALLATION INSTRUCTIONS
Keefe
®
Pressure Balanced
Diverter Valve Tub/Shower
Trim Kit
Models D35104600, D35104600RB
To be used with D35000600.191
Rough Valve for Pressure Balanced Bath/Shower
Thank you for selecting DXV. To ensure that your installation proceeds
smoothly, please read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench
ROUGHING-IN DIMENSIONS:
• For reference
• To assure proper positioning in
relation to wall, note roughing-in
dimensions.
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
Hex Wrench
Te on Tape
(Supplied)
FINISHED WALL
BOTTOM OF
SHOWER HEAD
74" FOR HEAD
CLEARANCE
(OPTIONAL)
(1880 mm)
18"
(457 mm)
OPTIONAL
4"
(102 mm) TOP OF
TUB RIM
BOTTOM OF TUB
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Flat Blade Screwdriver
Phillips Screwdriver
1-5/8" to 3-1/4"
(41 mm to 83 mm)
1/2" NPT
FINISHED FLOOR
(1828 mm and 2133 mm)
SHW
8" sq.
(203 mm)
TUB
3/4"NPT
- 1 -
1/2" Hex Wrench
OPTIONAL TO
USUALLY
BETWEEN
72'' and 84"
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965479 Rev.1.8 (4/18)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Keefe D35104600
Summary of Contents for DXV Keefe D35104600
- Page 1 Models D35104600, D35104600RB To be used with D35000600.191 Rough Valve for Pressure Balanced Bath/Shower Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL DIVERTER DIVERTER PORT Turn off hot and cold water CAUTION supplies before beginning. • When finished tiling the wall, remove PLASTER GUARD (1). Remove two screws that secure the DIVERTER LID (2) and remove Lid. Inspect the inside surface of diverter port. Diverter port must be free of any dirt.
- Page 3 ADJUST HOT LIMIT STOP (MUST BE DONE PRIOR TO TRIM INSTALLATION) By restricting HANDLE rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1) reduces risk of accidental scalding. To set the maximum hot water temperature of your faucet, all you need to do is adjust the setting on the HOT LIMIT SAFETY STOP (1).
- Page 4 Keefe ® Pressure Balanced Diverter Valve Tub/Shower Trim Kit MODELS NUMBER D35104600 D35104600RB Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL H960684.191 DIVERTER M964530-0070A TRIM PLATE HOLDER KIT M964645-YYY0A DIVERTER CAP M964528-YYY0A DIVERTER KNOB H961229.XXX DIAL PLATE H960685.XXX TRIM PLATE SCREWS...
