INSTALLATION INSTRUCTIONS
Keefe

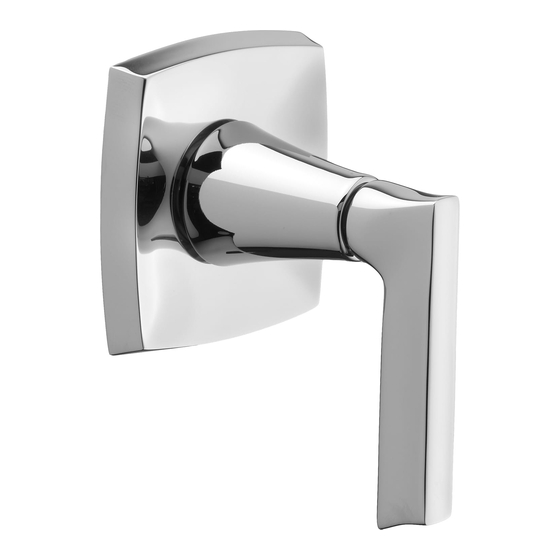

Handle Trim Kit for Two Way or
™
Three Way In-Wall Diverter
Model D35104.430
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
•
For reference
2-15/16"
(75mm)
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Plumbers' Putty or Caulking
3/8"
(9.8mm)
2-3/4"
(69.8mm)
FINISHED
WALL
2-3/8"
(59.3mm)
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
1-800-395-1498
www.DXV.ca
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
- 1 -
Phillips Screwdriver
Regular Screwdriver
M9 6 55 1 8 R ev. 1 .1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Keefe D35104.430
Summary of Contents for DXV Keefe D35104.430
- Page 1 Handle Trim Kit for Two Way or ™ Three Way In-Wall Diverter Model D35104.430 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.
- Page 2 INSTALL VALVE TRIM CAUTION Turn off hot and cold water supplies before beginning. TWO-WAY OR THREE-WAYE DIVERTER VALVE • Twist and pull off PLASTER GUARD (1). (TWO AND THREE WAY VALVES) Install ESCUTCHEON (4) onto ESCUTCHEON HOLDER (2). Fig. A. •...
- Page 3 Keefe Handle Trim Kit for Two Way or Three Way In-Wall Diverter MODEL NUMBER D35104.430 Replace the "YYY" with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964562-YYY0A ESCUTCHEON KIT H960835.XXX EXTENSION M964564-YYY0A LEVER HANDLE H2749.191 EXTENSION KIT M9 6 5 5 1 8 R ev. 1 .1 - 3 -...
