INSTALLATION INSTRUCTIONS
Keefe
®

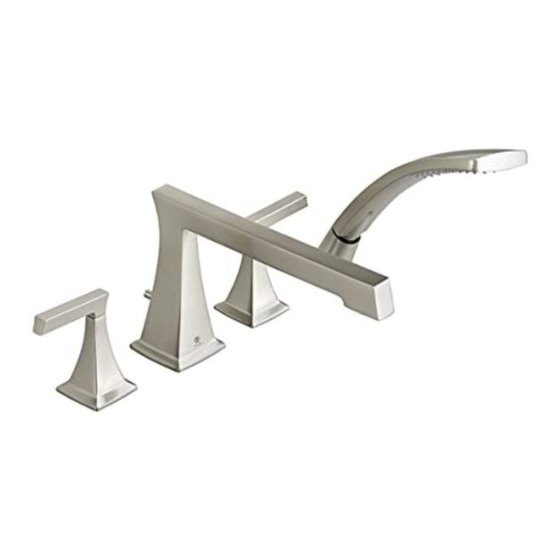

Deck Mount Tub Filler
with Hand Shower
Model D35104900
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks

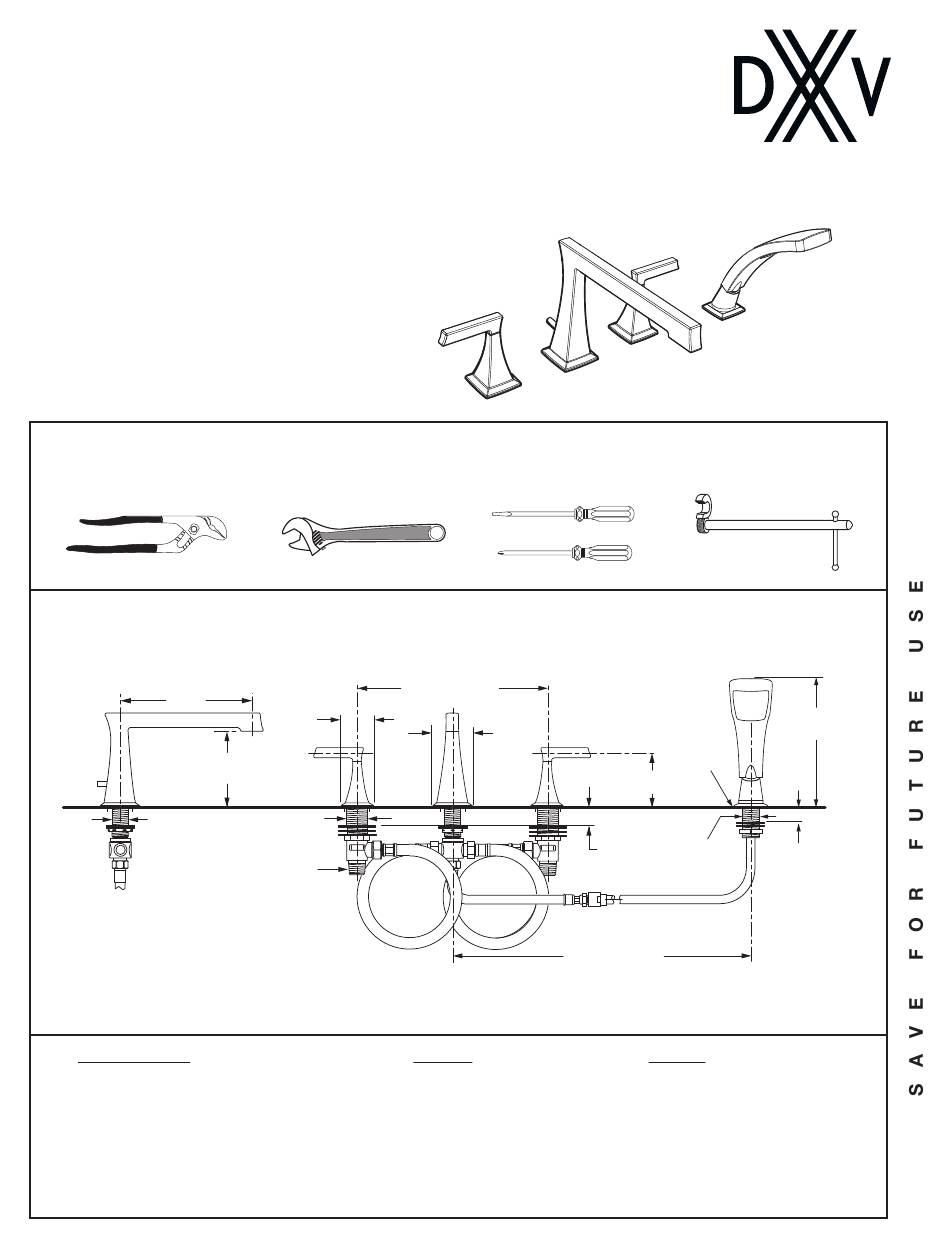

ROUGHING-IN DIMENSIONS:
• For reference
8-1/2"
(216.2 mm)
(124.8 mm)
3/4" D.
(19 mm)
NOTE: MOUNTING HOLES
ARE 1-3/8" D. (35 mm) for handles
1-1/4" D. (32 mm) for spout
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
2-1/8"
(53.7 mm)
4-9/10"
1-3/8" D.
(35 mm)
3/4"NPT
INLETS
Flat Blade Screwdriver
Phillips Screwdriver
8" TO 12" MAX.
(203 to 305 mm)
2-3/5"
(65.3 mm)
12" MAX. (305 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Basin Wrench
2-3/8" D.
(60 mm)
3-7/8"
(98.4 mm)
1-1/4" D.
1-1/2" MAX.
1-1/2" MAX.
(32 mm)
(38 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965481 Rev. 1.6 (5/17)
8-1/4"
(210 mm)
(38 mm)
Advertisement
Table of Contents
Related Manuals for DXV Keefe D35104900
Summary of Contents for DXV Keefe D35104900
- Page 1 ® Deck Mount Tub Filler with Hand Shower Model D35104900 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 SPOUT AND T-PIECE ASSEMBLY Turn off hot and cold water CAUTION supplies before beginning. IMPORTANT NOTICE TO THE INSTALLER Please check with your local Code Authority for acceptable installation requirements forthis Roman Tub set with hand shower. Some local codes may require a vacuum breaker and/or a pressure balanced mixing valve to be installed in conjunction with this product.
- Page 3 INSTALL VALVE BODIES • HANDLE ASSEMBLIES (1, 1A) are installed on VALVE BODIES (2) and must be removed to install VALVE BODIES (2) from under tub deck or mounting surface. • To remove HANDLE ASSEMBLY (1), unthread HANDLE BASE (3) with LEVER (4) from VALVE BODY (2).
- Page 4 Keefe ® Deck Mount Tub Filler with Hand Shower MODEL NUMBERS D35104900 M964542-YYY0A POP-UP KNOB KIT M964549-0070A STREAM STRAIGHTENER M970043-XXX0A SPOUT SET SCREW KIT D35104781.XXX HAND SHOWER M964591-0070A TRANSFER ROD ASSEMBLY M964534-YYY0A HANDLE KIT M964557-YYY0A HAND SHOWER HOLDER KIT 012668-0070A SHANK KIT H960170.191 3/4 COLD...
