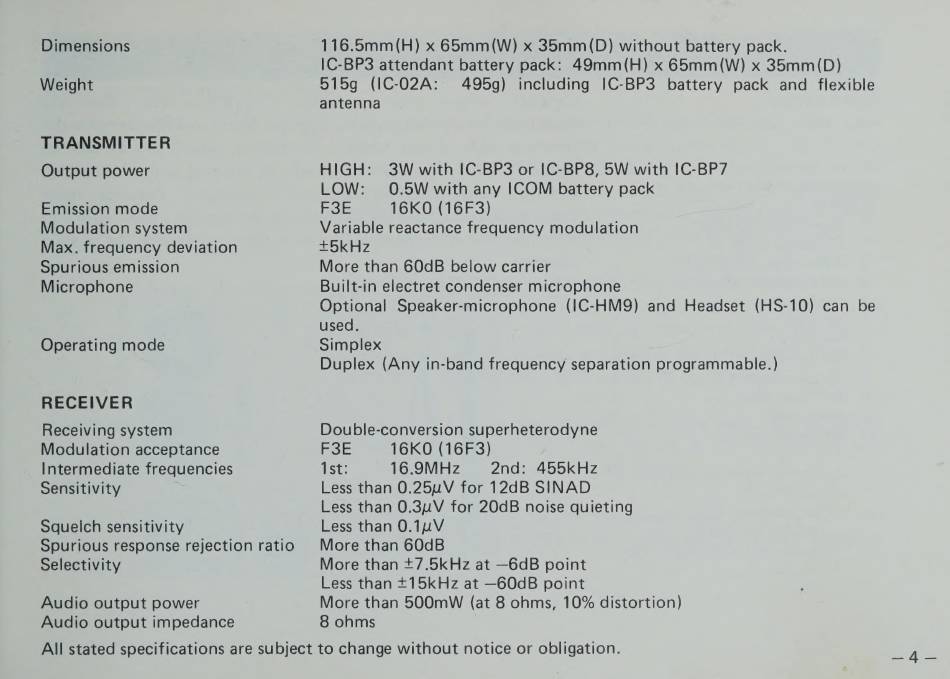

Icom IC-02A/AT/E Instruction Manual page 7

Dimensions
Weight
TRANSMITTER
Output power
Emission mode
Modulation system
Max. frequency deviation
Spurious emission
Microphone
Operating mode
RECEIVER
Receiving system
Modulation acceptance
Intermediate frequencies
Sensitivity
Squelch sensitivity
Spurious response rejection ratio
Selectivity
Audio output power
Audio output impedance
116.5mm(H) x 65mm(W) x 35mm(D) without battery pack.
IC-BP3 attendant battery pack: 49mm(H) x 65mm(W) x 35mm(D)
515g (IC-02A: 495g) including IC-BP3 battery pack and flexible
antenna
HIGH: 3W with IC-BP3 or IC-BP8, 5W with IC-BP7
LOW: 0.5W with any ICOM battery pack
roe 16KO (16F3)
Variable reactance frequency modulation
+5kHz
More than 60dB below carrier
Built-in electret condenser microphone
Optional Speaker-microphone (IC-HM9) and Headset (HS-10) can be
used.
Simplex
Duplex (Any in-band frequency separation programmable.)
Double-conversion superheterodyne
F3E 16KO (16F3)
Ist: 16.9MHz 2nd: 455kHz
Less than 0.25uV for 12dB SINAD
Less than 0.3uV for 20dB noise quieting
Less than 0.1uV
More than 60dB
More than +7.5kHz at —6dB point
Less than +15kHz at —60dB point
More than 500mW (at 8 ohms, 10% distortion)
8 ohms
All stated specifications are subject to change without notice or obligation.
