a he

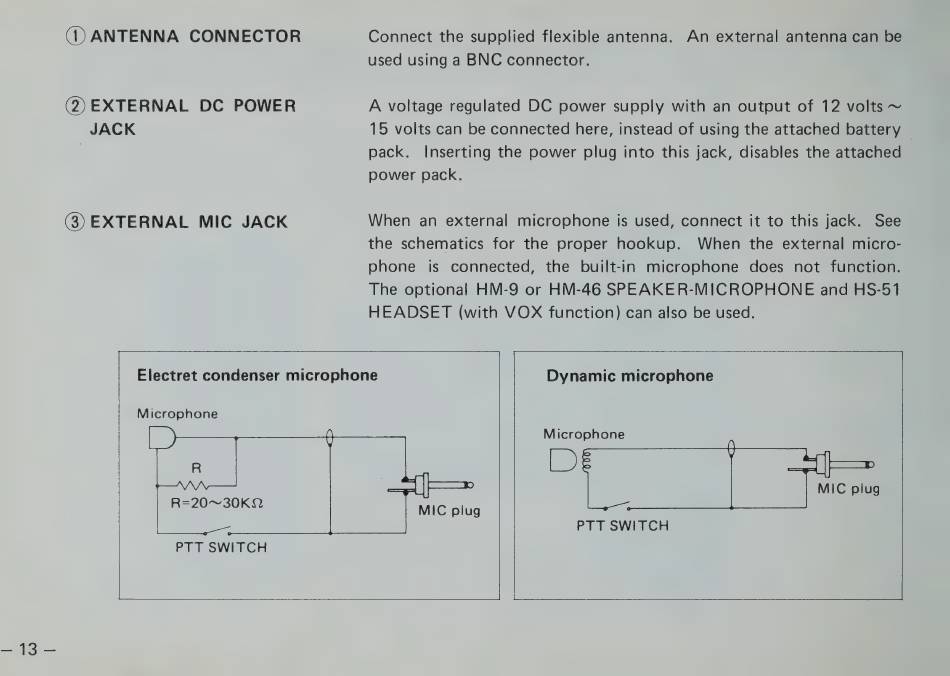

(1) ANTENNA
CONNECTOR
(2) EXTERNAL
DC POWER
JACK
(3) EXTERNAL
MIC JACK
Connect the supplied flexible antenna.
An external antenna can be
used using a BNC connector.
A voltage regulated DC power supply with an output of 12 volts ~
15 volts can be connected here, instead of using the attached battery
pack.
Inserting the power plug into this jack, disables the attached
power pack.
When
an external
microphone
is used, connect it to this jack.
See
the schematics
for the proper
hookup.
When
the external micro-
phone
is connected,
the
built-in
microphone
does
not function.
The optional HM-9 or HM-46 SPEAKER-MICROPHONE
and HS-51
HEADSET
(with VOX function) can also be used.
Microphone
R=20~30K2
PTT SWITCH
Electret condenser microphone
Dynamic microphone
Microphone
haa?
MIC plug
MIC plug
PTT SWITCH
