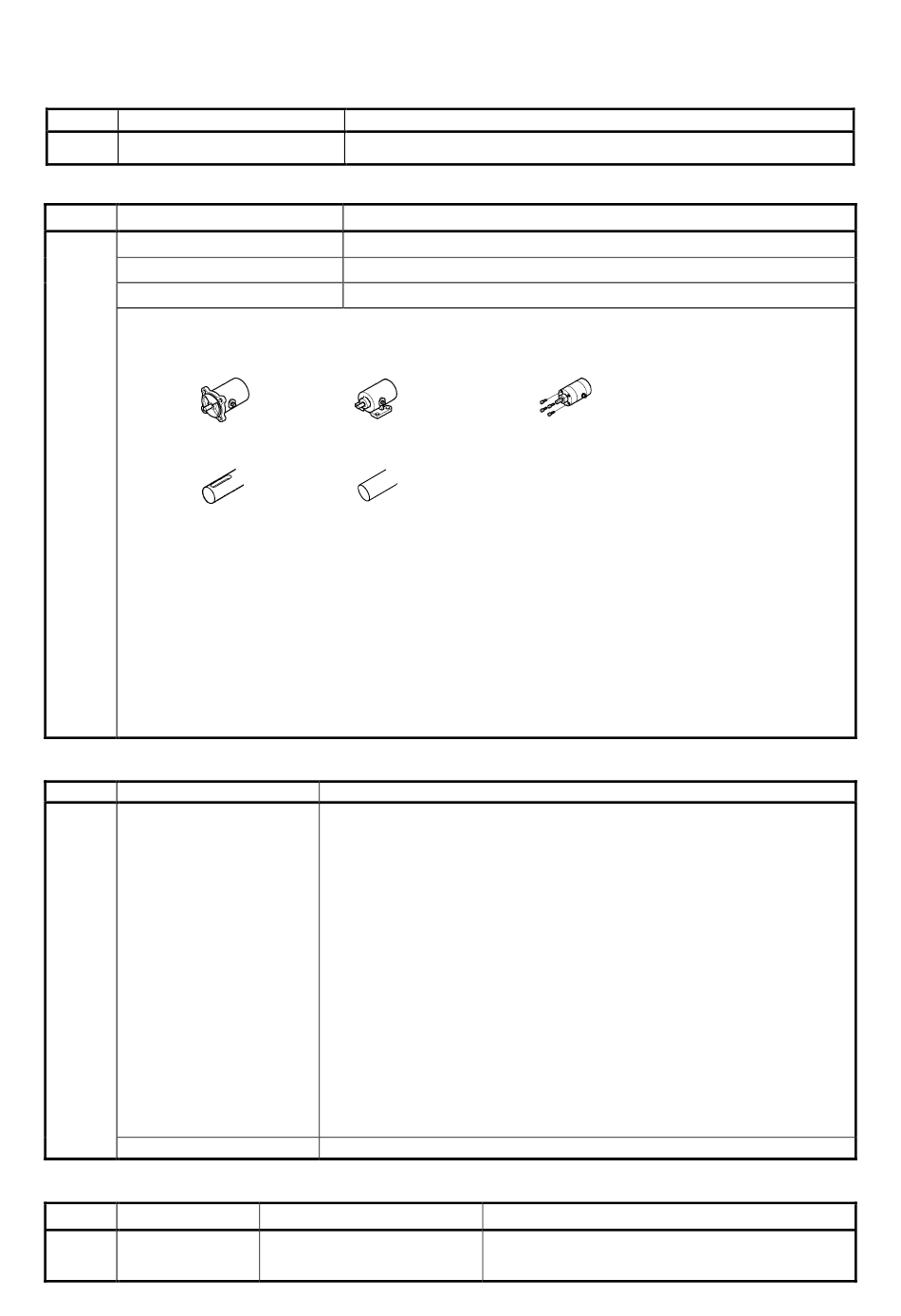

2-2. Model List

◆ Converter
No.
(1) NCV-210HAAVT
◆ ABSOCODER sensor
No.
VRE-10TP058MSB
VRE-10TP068[1] K [2][L]
VRE-10TP101[1] K [2][L]-G
[1]: Mounting format
F: Flange-mount type
K: Input shaft (sunk key)
(2)
[2]: Connector type
B: Standard connector for the NSD special cable
(NJW-2012PM8, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
P: Large connector for JKPEV-S cable
(NWPC-4012-Ad12, manufacturer: Nanaboshi Electric Mfg.Co,Ltd.)
R: Crimping terminals for JKPEV-S cable and the NSD special cable (R1.25-4)
[L]: Interconnecting sensor cable length (m): 2, 5, 10, 20
G: Silicon oil injected
◆ Extension sensor cable
No. Model
4P－[1]－[2] [3]－[L]
(3)
JKPEV-S(1.25mm
◆ Option
No. Name
(4) I/O cable
Model
For two ABSOCODER sensors
Model
General environment type, with interconnecting cable 2m
Compact size heavy duty type, SUS
Heavy duty type, SUS
L: Base-mount type
S: Without key
no code: no oil injected
[1]...Cable type
S: Standard cable
RBT: Robotic cable
URT: Semi-heat-resistant robotic cable
HRT: Heat-resistant robotic cable
[2]...Connector (Converter side)
01: Connector for connecting to a converter (R04-PB9M8.0A)
43: Standard connector (NJW-2012-PM8)
90: Crimping terminals (R-1.25-4)
[3]...Connector (Sensor side)
44: Standard connector (NJW-2012-AdF8)
55: Large connector (NWPC-4012-P12)
90: Crimping terminals (R-1.25-4)
[L]...Cable length (m)
Contact your NSD representative for the cable length.
×5P) Commercially available cable
2
Model
VS-C05-[L]
Description
Description
M: Face-mount type
(Only available for 058 and 068.)
Description
Used for the I/O connector.
[L]: Cable length: 1, 2, 3, 5, 7, 10m
3
Description
