2. MODEL SELECTION WHEN ORDERING

2-1. Connection Configuration

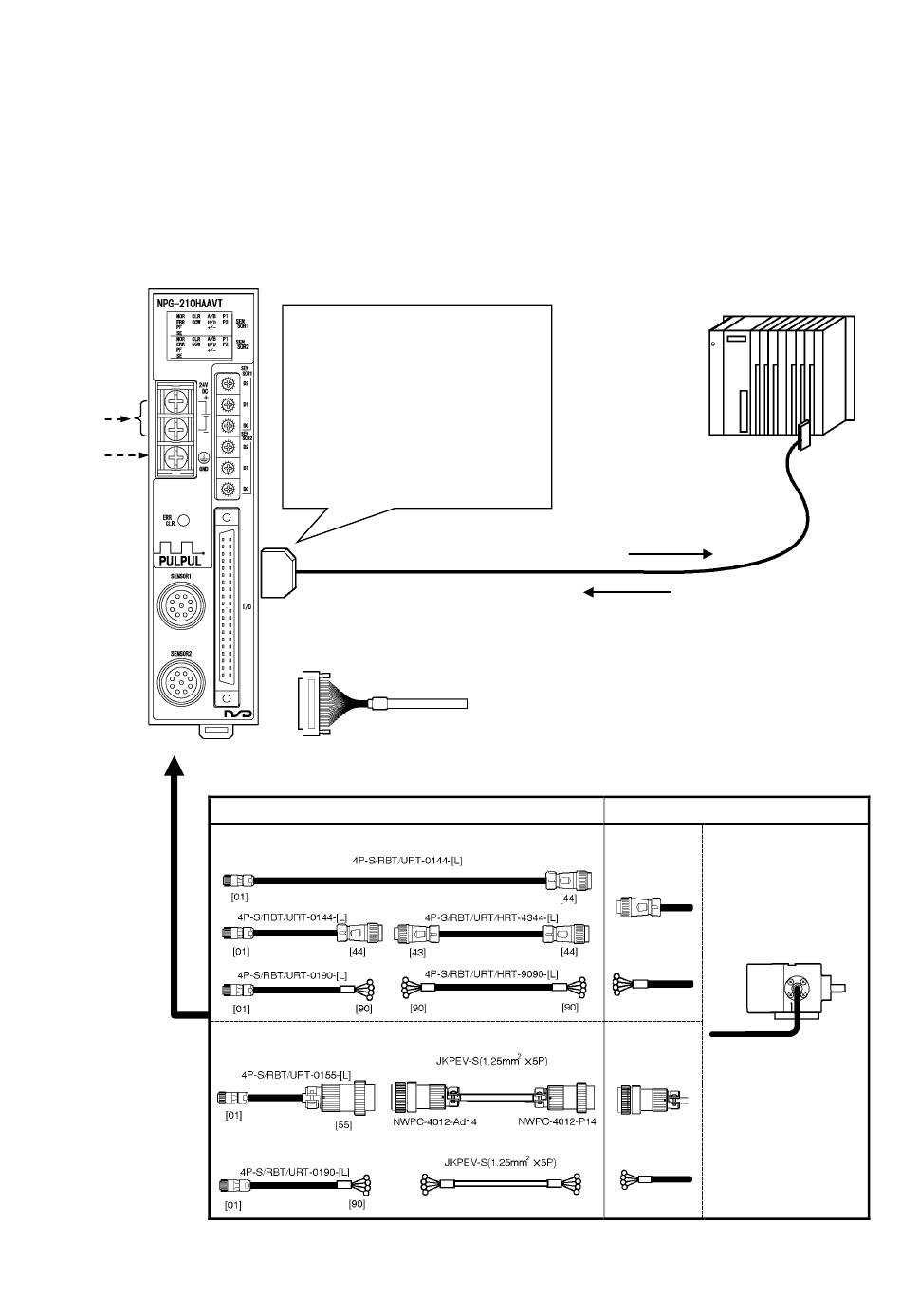

The following figure indicates the connection configuration of NPG-210HAAVT.
Please prepare by customer except 1 to 4 in the connection configuration.
(1) Converter
Power
Supply
+24V
0V
Ground
Connector at cable side
(It is included in the converter.)
FCN361J040-AU: Soldered socket
FCN-360C040-B: Cover
Connectors are manufactured
by FUJITSU COMPONENT LIMITED.
or
N361J040AU: Soldered socket
N360C040B: Cover
Connectors are manufactured
by OTAX CO.,LTD..
(4) I/O Cable VS-C05-[L]
(Option)
(3) Extension sensor cable
-In the case of using the NSD special cable
-In the case of using the commercially available cable
External output signal
-Pulse output
-System ready
External input signal
-Error clear
Connector
type
2
Host controller
PLC etc.
(2) ABSOCODER sensor
B VRE-10TP058
VRE-10TP068
VRE-10TP101
R
P
R
