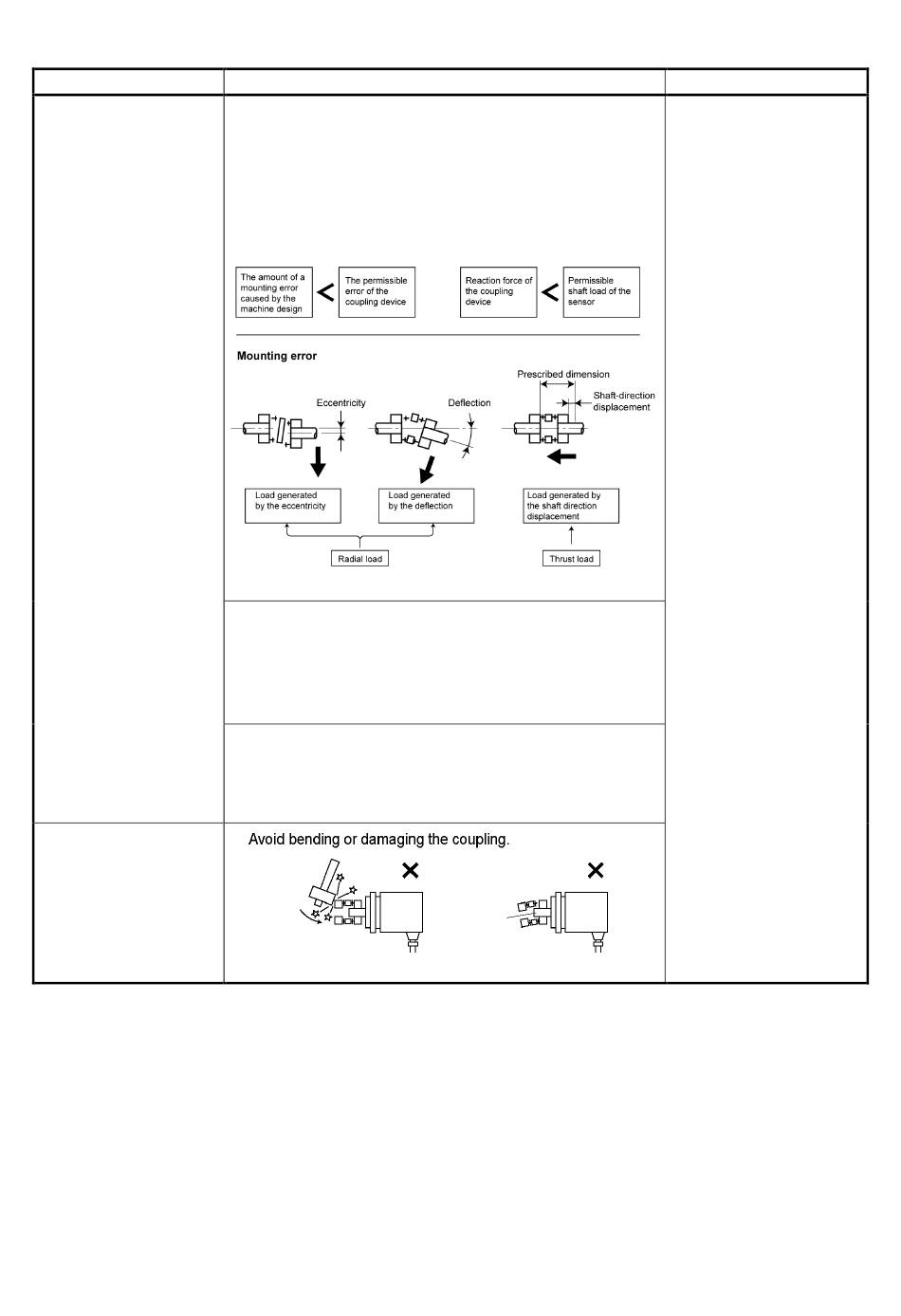

● Coupling of Turn-type ABSOCODER Sensor
Item
(1) Coupling device
selection precaution
(2) Coupling device
installation precaution
1. Selection of the coupling device should be based on the
following factors;
- The amount of a mounting error caused by the machine
design.
- The permissible error of coupling device.
- Reaction force of coupling device.
- Permissible shaft load of the sensor.
2. If the selected coupling device is larger than necessary
(When used in high vibration/shock environments), the load
which is applied to the shaft by the vibrations/shocks will be
increased by the weight of the coupling device.
3. Be sure to select a coupling device with an adequate
transmission torque surplus relative to the sensor shaft's
torque.
Explanation
22
Precaution
The selection of a larger
coupling than necessary
will increase the shaft load
which is caused by the
mounting error amount.
Excessive force applied
to the shaft can deform
the coupling and reduce
durability.
