7. WIRING

7-1. Power Supply Connection

The power supply should be connected as described below.
(1) Power Supply
- Choose the power supply capacity which is more than
twice the power consumption of the converter.
The power consumption of the converter is 10W or less.
-The input power supply should be isolated from the
commercial power supply.
- The power cable should be as thick as possible to
minimize voltage drops.
-Twist the power cable for preventing noises.
-Use the M4 size crimp lug terminals with insulating sleeves
in order to prevent short circuit caused by loose screws.
-The terminal block tightening torque is 1.8 N･m (16 lb･in).
(2) Ground
-The unit should be securely grounded (ground resistance of 100ohm or less) to prevent electrical shocks.
-The ground wire should be connected to the ground terminal directly.
-The terminal block tightening torque is 1.8 N･m (16 lb･in).

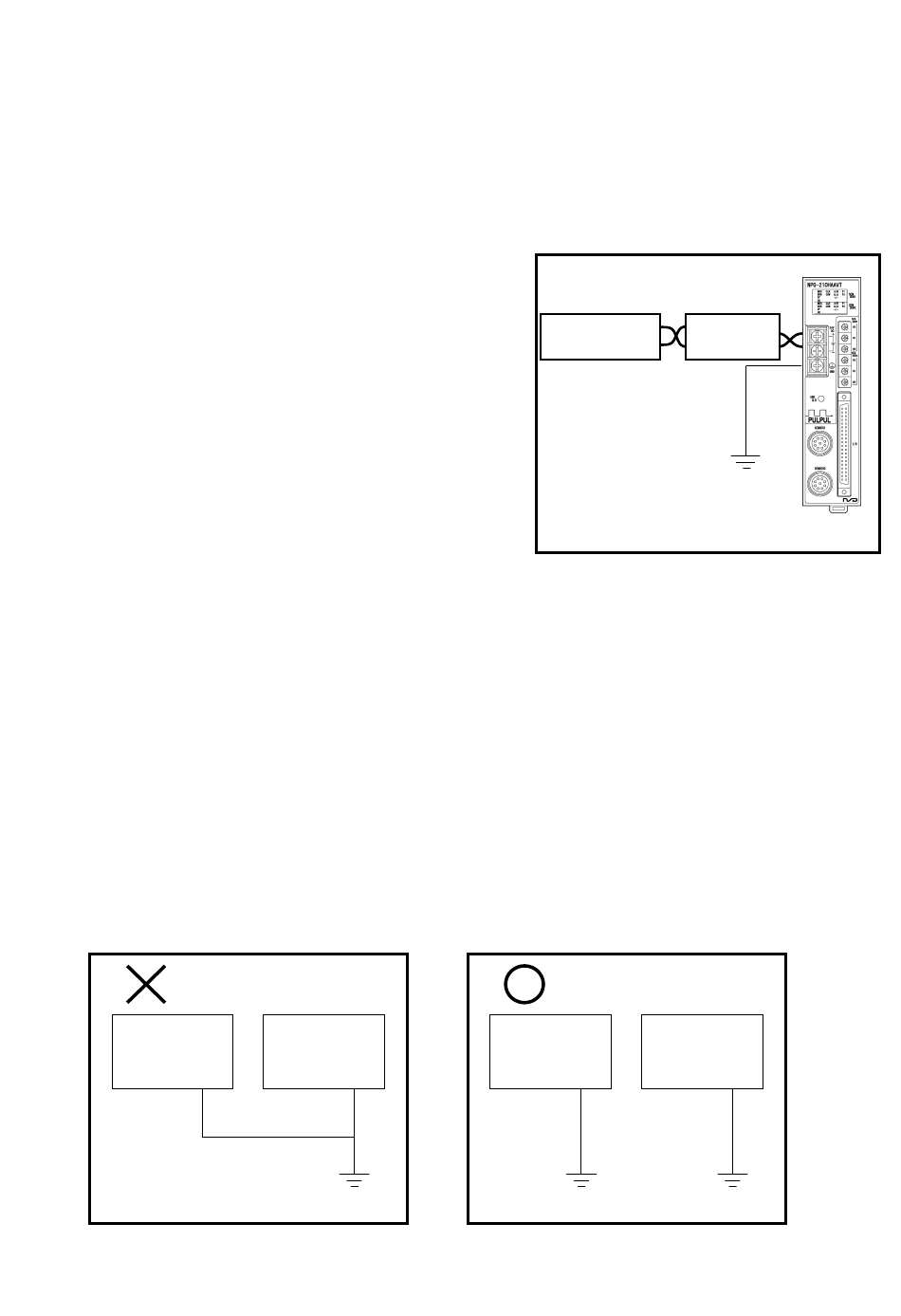

Converter Other products
23
Power
+24VDC
Supply
0V
Converter Other products
Over current
protector
