5.6 Parts Replacement
The engraver should not be modified or disassembled by anyone except trained and skilled professionals, but
some consumable parts may require replacement after prolonged use. Be sure only to use identical or compatible
replacement parts with this engraver. Contact your vendor or our technicians if you have any questions about
fitment. Using incompatible components is highly dangerous and waives all the manufacturer's liability for any
damage or injury caused.
ALWAYS completely disconnect the engraver from its power supply before replacing any parts.

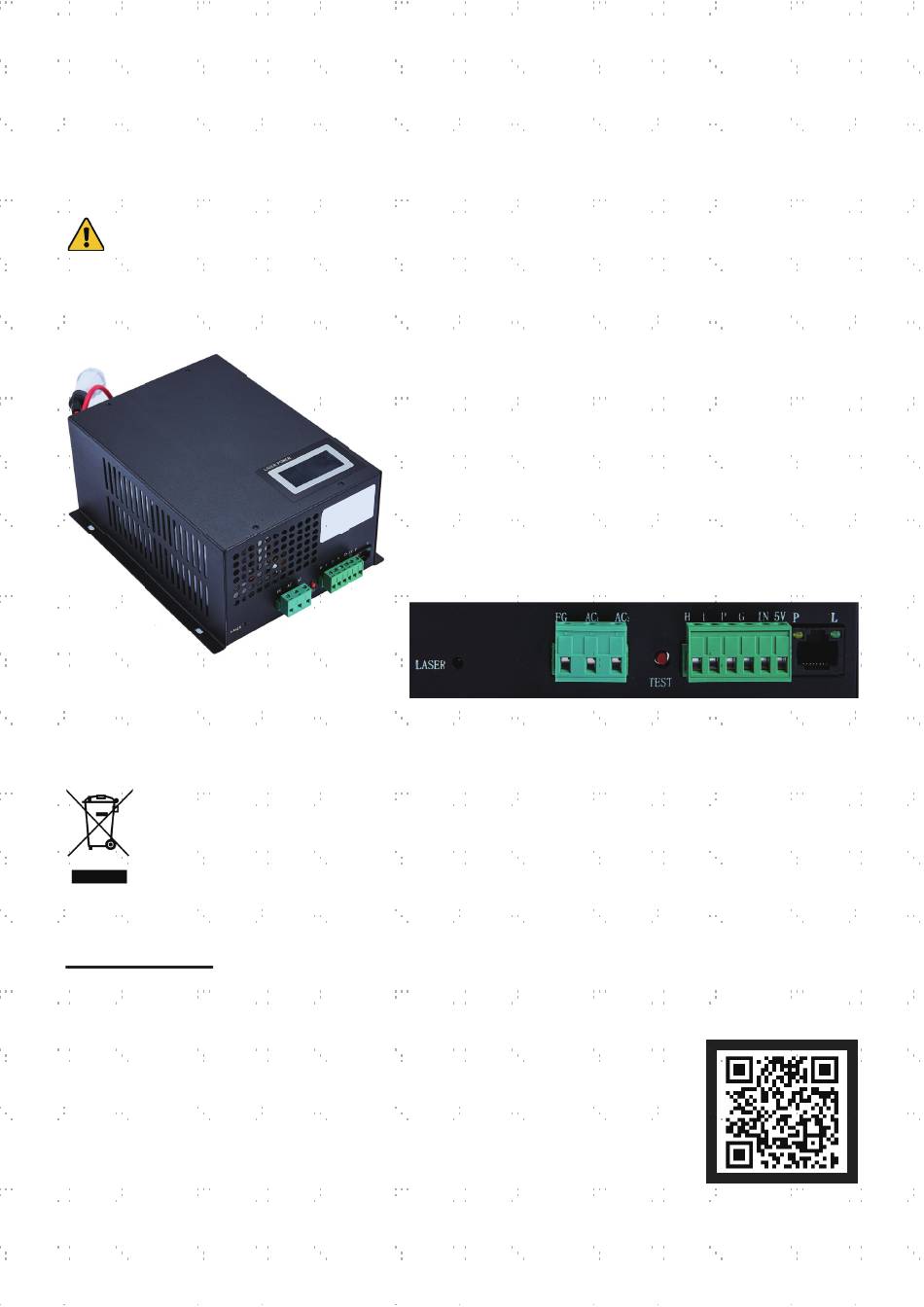

Take special care when replacing the laser tube or its power supply, as both have extremely high voltage
connections. If you replace the power supply with an identical model, you will be able to use the same screw
terminal blocks as a unit. If you change to a different laser power supply, refer to the following diagram:
5.7 Disposal
Electrical products should not be disposed of with household products. In the EU and UK, according
to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its
implementation in national laws, used electrical products must be collected separately and disposed of
at the collection points provided for this purpose. Locations in Australia, Canada, and the United States
may have similar regulations. Contact your local authorities or dealer for disposal and recycling advice.
Contact Us
Thank you for choosing our laser equipment for your home or shop! For a .pdf copy
of the latest version of this manual, use the appropriate app on your smartphone or
other device to scan the QR code to the right.
Come join the OMTech community at our official laser group on Facebook or
visit the company forums at omtechlaser.com! Check our YouTube channel for
helpful hints and instructional videos. If you encounter any problem regarding
your engraver, do not hesitate to contact customer service with your order number
at help@cs-supportpro.com or techsupport@omtechlaser.com. Our teams will
respond within 24 hours to make things right. You can also reach us Monday to
Friday at (949) 539-0458 between 8 am and 4:30 pm PST.
Thank you and we hope you will choose us again for all your laser needs!
FG: Ground Wire for the Mains and Case
AC₁: Neutral Wire to the Main Power
AC₂: Live Input from the Main Power
H: Connection for Active-High Devices
L: Connection for Active-Low Devices (like this machine)
P: Line to the Trigger, Water, & Other Systems (like the door switch)
G: Ground Wire for the Control System, PWM Level Shifters,
Potentiometers, &c.
IN: Input Power for PWM Level Shifters or Potentiometers
5V: 5V Connection for Digital Signals
