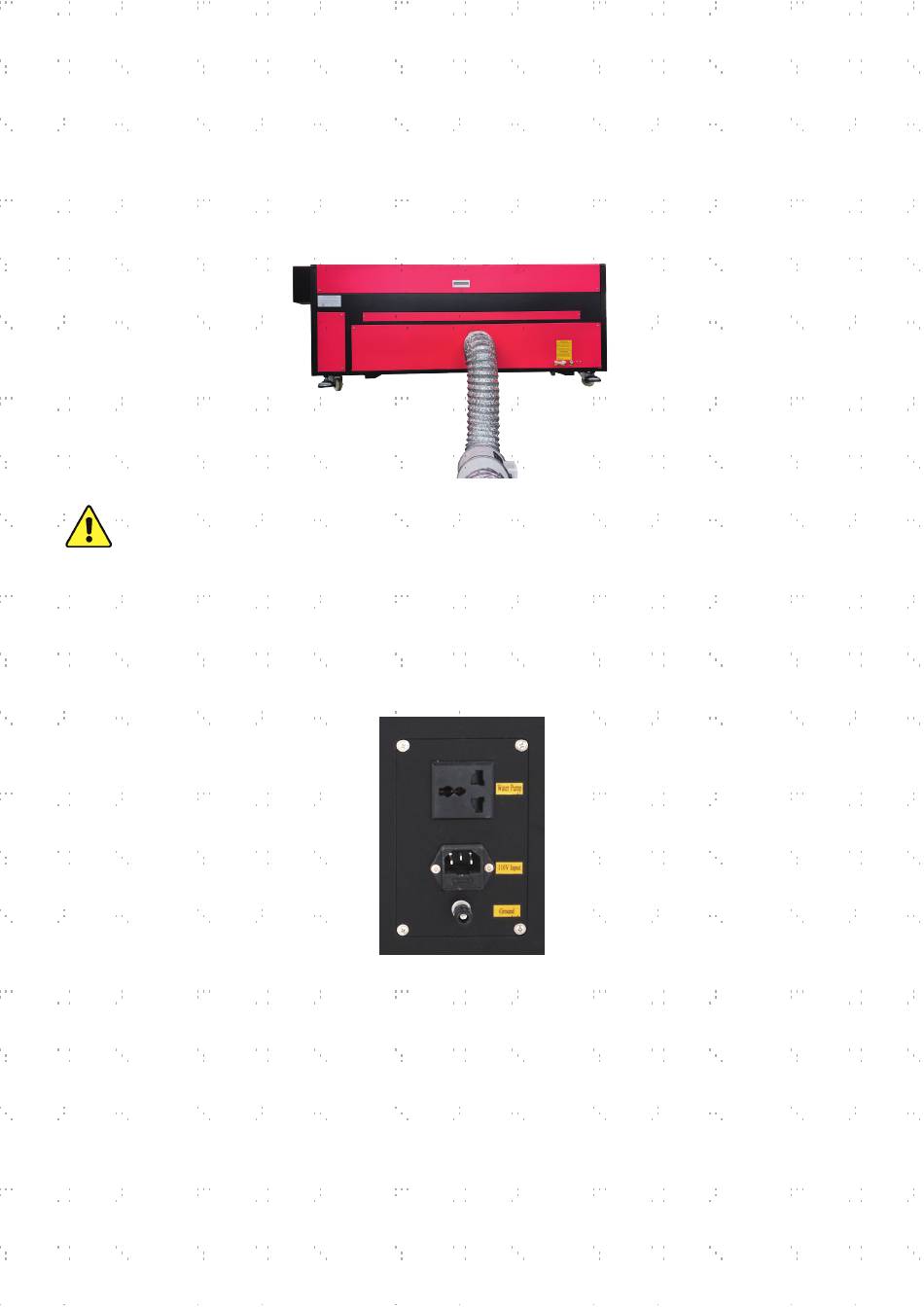

3.6 Exhaust System
This engraver doesn't come with an inbuilt exhaust fan. Follow the steps to set an exhaust system before use.
1. Connect the provided exhaust pipe to the port of the laser engraver, and the other end to your exhaust fan. Expand
the pipe if longer is needed. The full length of the pipe is about 1.5 meters (5 feet).
2. Use another exhaust pipe (not included) to connect the exhaust fan and the other end of the pipe to a dedicated
purifier or placed out a window (if the fumes are not hazardous and meet local and national air safety standards).
NEVER operate the laser if the vent is not purifying or removing the fumes produced by the target
material. Research materials before use and never operate the laser on any (such as PVC, Teflon, and other
halogen-containing substances) that can produce corrosive, hazardous, or even deadly fumes.
3.7 Main Power Connection
Confirm that the labelling beside the connection socket on the machine matches your power supply. Connect one
end of the main cable to the connection socket and the other end to a grounded outlet. Under NO circumstances
should you switch on the device if the voltages do not correspond.
Fluctuation along the line should be less than 5%. If this is exceeded, the fuses will blow. They are located in the
connection socket and are accessible from the exterior. Similarly, do not connect this device to standard extension
cords or power strips. Connect it directly to a grounded outlet or use a surge protector rated over 2000J.
3.8 Control Computer
See the software manual for details on the requirements for the control computer. The control computer can be
connected using the provided USB cable (via the port marked "USB Cable to PC"), using the provided Ethernet
cable ("via the port marked ""Ethernet Cable"), or using the internet if the engraver has been connected to it using
the Ethernet cable. If the control computer is directly connected to the engraver, it should not be placed more than
4.5 metres (15 ft.) away in order to avoid possible interference to the signal on its line. Familiarise yourself with the
software's image design features and laser control settings before using it to operate the laser.
