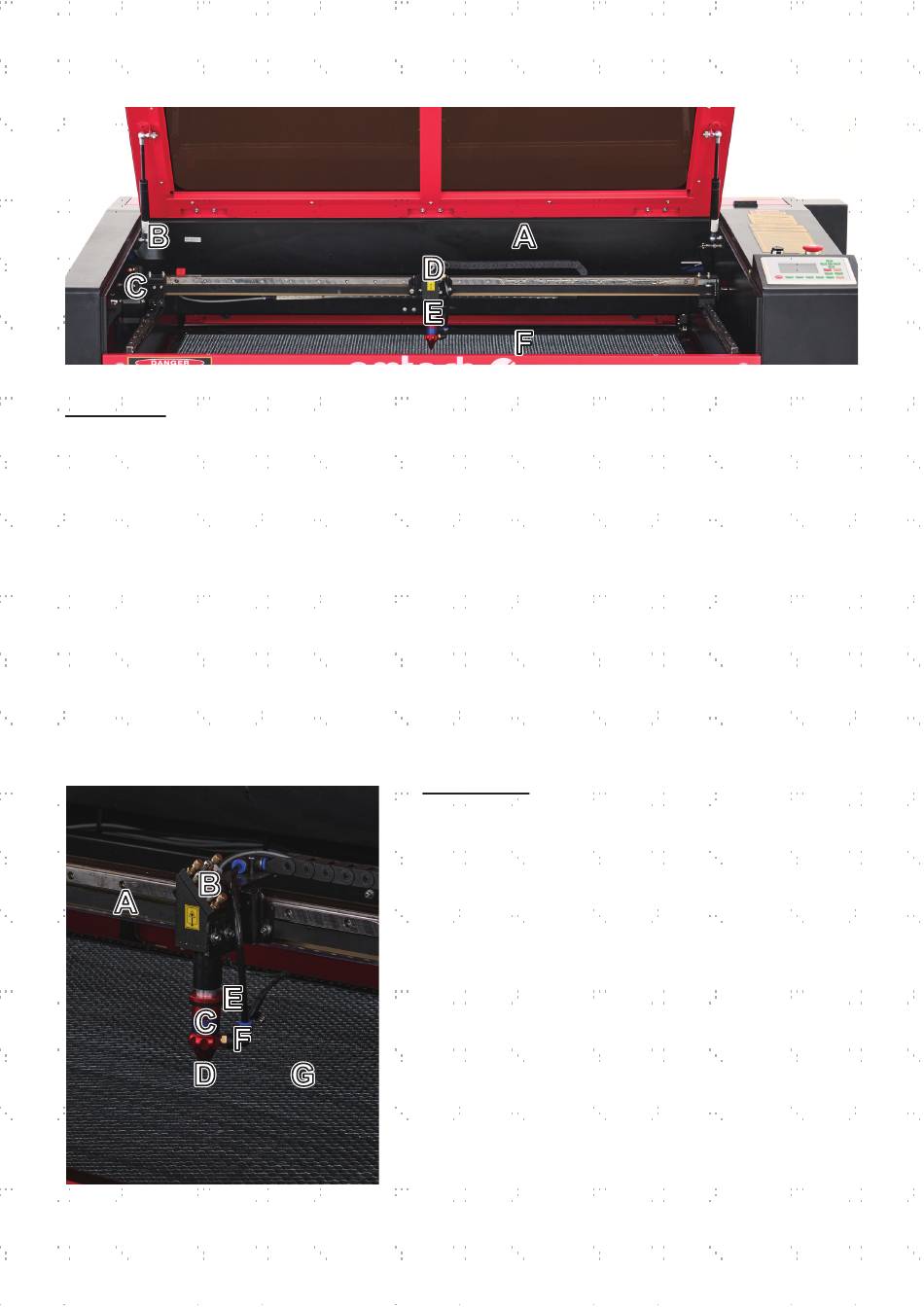

Laser Path
A. Laser Tube—This long glass tube is filled with helium, nitrogen, and CO₂ gas and water cooled to safely produce
your engraving laser. Its connection to the laser power supply is extremely high voltage and extremely dangerous.
B. 1st Mirror—This adjustable-angle mirror is fixed in place to transfer the engraving laser from the tube to the
2nd mirror.
C. 2nd Mirror—This adjustable-angle mirror moves with the X-axis rail to allow the laser beam to travel along the
Y axis.
D. 3rd Mirror—This adjustable-angle mirror moves with the laser head to allow the laser beam to travel along the
X axis.
E. Focus Lens—This lens directs and focuses the laser to the material.
F. Workbed—The bare workbed can be adjusted in height or fitted with aluminium or honeycomb tables for
different projects.
Laser Head
A. X-Axis Rail—This rail moves along the Y axis, with its
movement controlled by limit switches.
B. 3rd Mirror—This adjustable-angle mirror transfers the
laser from the 2nd mirror to the focus lens.
C. Focus Lens—This 18 mm lens directs and focuses the laser
beam to its point of contact with the engraving material.
D. Laser—The engraving laser itself is invisible but highly
dangerous. Avoid any direct exposure to your skin or eyes.
E. Red Dot Pointer—This device helps you see the exact
position of the invisible engraving laser.
F. Air Assist—This device blows pressurised air to kill sparks
and blow away gas and debris as you engrave.
G. Workbed—Use the provided acrylic tool to get the perfect
focus for any thickness of material.
