INSTRUCTION MANUAL
Oxygen cylinder holder
7B01002600A5
Preface
Thank you for purchasing our oxygen cylinder holder.
This instruction manual describes precautions and how to safely use and attach the oxygen cylinder holder.
n To ensure safe and proper use of the oxygen cylinder holder, be sure to read this instruction manual
before use. Also read the instruction manual for the medical device to be used together with this product.
n In addition to the person who uses the oxygen cylinder holder, caregivers should also read this instruction
manual.
n After reading this instruction manual, store it in a place that can be easily accessed for later reference.
n Users and/or patients are requested to report information about any serious incident that occurs within the EU
to the regulating authority of the member country of residence.
Serious incident means any incident that directly or indirectly resulted in, may have resulted in, or may result
in any of the following.
• Death of a patient, user, or other person
• Serious temporary or permanent adverse effects on the health of a patient, user, or other person
• Serious public health threat
n Some of the descriptions in this instruction manual may differ from the product you have purchased due to
model improvements.
n Description of the operation range, dimensions, angles, and weights are subject to normal manufacturing
tolerances. Except for special cases, words such as approximately and about are omitted in this instruction
manual to improve readability.
n For any queries, contact Paramount Bed (see the back cover) or your distributor.

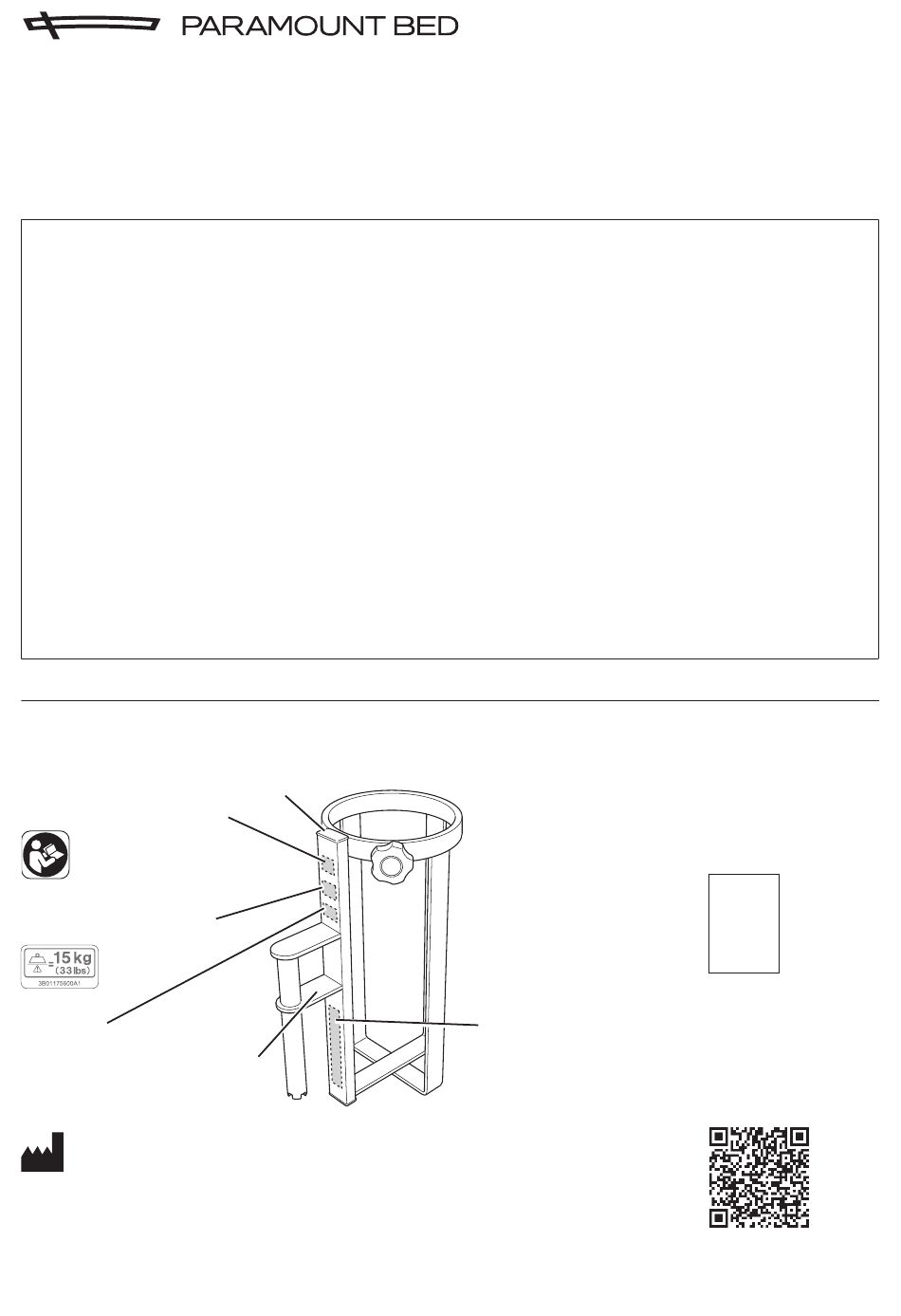

PART NAMES AND CHECKING PARTS
g After unpacking, check that there are no missing or damaged parts. If any parts are missing or damaged,
contact Paramount Bed (see the back cover) or your distributor.
g For details on the product symbol, see p. 6.
g See the instruction manual
g Safe working load display label
g CE label
Contact Information
PARAMOUNT BED CO., LTD.
14-5, 2-chome, Higashisuna, Koto-ku,
Tokyo, 136-8670, Japan
Tel: +81-(0)3-3648-2961
Fax: +81-(0)3-3648-5781
For other contact information, please visit the website.
Website: https://www.paramount.co.jp/english/
Frame
Guide
PARAMOUNT BED CO., LTD.
PC-5116/PC-5117
g Product ID label
Instruction manual
(this document) x1
[Revised: March 2024]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-5116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PARAMOUNT BED PC-5116

Summary of Contents for PARAMOUNT BED PC-5116

  • Page 1 Except for special cases, words such as approximately and about are omitted in this instruction manual to improve readability. n For any queries, contact Paramount Bed (see the back cover) or your distributor. PART NAMES AND CHECKING PARTS g After unpacking, check that there are no missing or damaged parts. If any parts are missing or damaged, contact Paramount Bed (see the back cover) or your distributor.

  • Page 2: Intended Use

    INTENDED USE g This oxygen cylinder holder is made for attaching to a medical device to be used together with this product designated by Paramount Bed to use the oxygen cylinder. [Intended users] Medical professionals [Patient target group] Refer to the instruction manual for the medical device to be used together with this product.

  • Page 3: Using The Product

    Attach the oxygen cylinder holder to any of the accessory attachment holes on the four corners of the bed (see the figure below). <PC-5116> Be sure to use a 500 L oxygen cylinder (from 9.5 cm (3.7 in.) to 11.5 cm (4.5 in.) in diameter).
  • Page 4 USING THE PRODUCT Accessory attachment hole Insert the oxygen cylinder holder into any of the optional accessory attachment holes on the four corners of the bed. Bolt Align a groove of the oxygen cylinder holder with the bolt in the bottom of the optional accessory attachment hole.
  • Page 5 Turn the knob bolt on the oxygen cylinder holder counterclockwise to loosen it. Loosen Slowly insert the oxygen cylinder into the oxygen cylinder holder and then turn the knob bolt Knob bolt Tighten clockwise to tighten it and firmly secure the oxygen cylinder.
  • Page 6 DAILY MAINTENANCE, LONG-TERM STORAGE, AND PRODUCT DISPOSAL <Daily maintenance> g When removing stains from parts Perform steps 1 to 5 below. Wipe off stains with a cloth soaked in a neutral detergent diluted with water and wrung out well. Wipe off any residual detergent with a cloth soaked in water and wrung out well. Wipe away any leftover moisture with a dry cloth.

  • Page 7: Specifications

    SPECIFICATIONS Product name Oxygen cylinder holder (500 L / 1000 L) Model No. PC-5116 PC-5117 Dimensions 22.5 x 14.4 x 32.1 cm (8.9 x 5.7 x 12.6 in.) 25.1 x 16.7 x 36.8 cm (9.9 x 6.6 x 14.5 in.) Product weight 2.3 kg (5.1 lbs)

  • Page 8: After Sales Service

    AFTER-SALES SERVICE 1. When requesting repairs For requests for repair, contact Paramount Bed (see Contact Information below) or your distributor. g Information required when you request repair n Product name, model number, and product ID label number (for the affixed location, see “PART NAMES AND CHECKING PARTS”)
