INSTRUCTION MANUAL
7A10717100A4

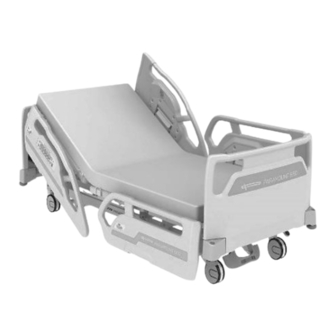

Note: In the illustration, an optional
mattress is attached.
PA-6000 Series Bed
Thank you for purchasing the PA-6000 Series Bed.
This instruction manual describes precautions and how to safely use
and operate the bed.
●Before using this bed, please read this instruction manual
to fully understand the safe and proper operating procedures.
●The correct operating procedures should be explained not
only to the persons using the bed but also to caregivers.
●After reading this instruction manual, store it where it can be
easily accessed for later reference.
●Users and/or carers are requested to report information about any serious
incident related to this bed that occurs within the EU to the manufacturer
and the regulating authority of the member country of residence. 'Serious
incident' means any incident that directly or indirectly led, might have led
or might lead to any the following :
a) The death of a user, carer or other person.
b) The temporary or permanent serious deterioration of a user's, carer's or
other person's state of health.
c) A serious public health threat.
●The actual product purchased may differ from detailed descriptions given in
this instruction manual due to product improvements.
●Values in the specification such as working range, dimensions, angles and
mass are subject to normal manufacturing tolerances. Besides some
exemptions, display purpose words such as"approximately", "about" etc. are
omitted.
●For any queries, please feel free to directly contact Paramount Bed
or your distributor.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA-6000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PARAMOUNT BED PA-6000 Series

Summary of Contents for PARAMOUNT BED PA-6000 Series

  • Page 1 ●Values in the specification such as working range, dimensions, angles and mass are subject to normal manufacturing tolerances. Besides some exemptions, display purpose words such as“approximately”, “about” etc. are omitted. ●For any queries, please feel free to directly contact Paramount Bed or your distributor.

  • Page 2: Table Of Contents

    CONTENTS Page ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．3 INTENDED USE / PART NAMES ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．4-12 SAFETY PRECAUTIONS INSTALLATION ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．13 ASSEMBLING THE BED 1. Board ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．14 2. Mattress stopper ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．15 ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．16 3. Battery unit CONNECTING TO THE POWER SUPPLY 1. Power outlets ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．17 2. Using the cable storage hook ．．．．．．．．．．．．．．．．．．．．．．．．．．．．17 OPERATION PROCEDURES 1.
  • Page 3 Page MATTRESS (OPTIONAL) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．41 OPTIONAL ACCESSORIES 1. Recommended accessories table ．．．．．．．．．．．．．．．．．．．．．．．．．．．42 2. IV pole(KC-56A/KC-56B/EC-562) ．．．．．．．．．．．．．．．．．．．．．．．．43 3. Oxygen cylinder holder(PC-5038) ．．．．．．．．．．．．．．．．．．．．．．．44 4. Oxygen cylinder holder(PC-5057) ．．．．．．．．．．．．．．．．．．．．．．．．．．．45 5. Lifting pole(PC-5058) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．46 6. Bed linen rack(PC-5060) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．47 7. Foot spacer(PC-5061A) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．48 ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．49 BEDSIDE TABLE ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．50 PRODUCT SYMBOL DEFINITIONS ．．．．．．．．．．．．．．．．．．．51-52...

  • Page 4: Intended Use

    INTENDED USE / PART NAMES 1. Intended Use ■This bed is designed to be used for patient care in medical institutions and elderly care facilities. ※Please refer to the SPECIFICATION for the patient target groups, the intended users, and the clinical benefits.

  • Page 5: Safety Precautions

    ※After reading this instruction manual, store it in a place that can be easily accessed for later reference. [Safety label] ●Precautions requiring special attention by persons using the bed are affixed as pictured in the figure. ●If the safety label is removed or defaced, replace it with a new one obtained from Paramount Bed or your distributor.
  • Page 6 SAFETY PRECAUTIONS ■Be careful not to allow any part of the body (especially the head or neck) to enter the gap between the side-rail, or the side-rail and the board or the mattress base (especially when raised). ●When the head or neck enters the gap, the patient and/or user might not be able to withdraw, and there is a risk of injury.
  • Page 7 ■Be careful not to allow any part of the body to enter the gap between the bed and wall or surrounding obstacles. ●There is a risk that a part of the body may get caught, resulting in injury. ■Take care to prevent a patient from falling off the bed even when side-rails are raised. ●A patient may fall off the bed through the gap between the side-rails, or a board and side-rail, resulting in injury.
  • Page 8 SAFETY PRECAUTIONS ■Use the bed in the correct orientation. ●Lying down on the bed with the feet at the head end and the head at the feet end induces an unnatural posture during bed operation (base angle) which may result in injury.
  • Page 9 ●Do not spill liquids on the bed’s electrical components, such as the motors, handheld controller. This could cause an electric shock due to a short circuit or product failure. If liquids are spilt accidentally, disconnect the power plug from the power outlet and contact Paramount Bed dealer or your distributor.
  • Page 10 SAFETY PRECAUTIONS ■Do not trip over the power cable or cables of the handheld controller and the nurse control panel. ●The power plug or cables may get damaged and short circuit, resulting in electric shock or fire. ●There is a risk of injury caused by the patient falling down. ■Do not run cables (such as the power cable) of the bed or other electrical appliances under the bed.
  • Page 11 ●Beds damaged in earthquakes, fires, or floods or other incidents must be inspected and repaired by Paramount bed or your distributor. Otherwise, there is a risk of electric shock or fire due to short circuit or current leakage from electrical parts, or injury due to malfunctioning caused by deformation of the bed.
  • Page 12 SAFETY PRECAUTIONS ■When performing the height adjustment or inclination angle adjustment, pay attention not to hit the wall, beam, or power outlet on the wall. ●The bed or wall may be damaged or deformed. Make sure that the bed does not hit the wall, beam, or power plug during the height adjustment or inclination angle adjustment.
  • Page 13 ■Avoid transporting over uneven floors. ●This may cause damage to the bed, or deformation or failure of the bed. If moving on uneven floor is necessary, move the bed as slow as possible. ■The handheld controller must be attached to a suitable bed. ●If it is attached to an unsuitable bed, the bed could operate unexpectedly, resulting in injury or bed failure.

  • Page 14: Installation

    INSTALLATION ■To avoid possible malfunctions, do not install the bed in the following locations. ●Locations expose to direct sunlight ●Locations near heat sources such as a stove or heater ●Locations which is heavily electrically charged such as near an MRI. ●Locations that has a high oxygen level ●Locations exposed to excessive amounts of water vapor or oil vapor ●Locations that tend to be exposed to high temperatures, high humidity, low temperatures...

  • Page 15: Assembling The Bed

    ASSEMBLING THE BED 1.Board ●When attaching the board, make sure that the board stoppers are in the lock position. Otherwise, the board may disengage when the bed is moved, resulting in injury due to a fall. ●Do not attach the board to a hole other than the board attachment hole. Attachment could become insufficient and the board could be rattled or come off, resulting in injury.
  • Page 16 ASSEMBLING THE BED 2.Mattress stopper ●Do not hold the mattress stopper to lift the leg section base. The mattress stopper may come off and a body part such as a hand may get caught between the leg section base and main frame, resulting in injury.
  • Page 17 3. Battery unit (PA-62**, PA-64** type) ●When connecting the battery cable, unplug the power plug and confirm the patient not on the bed. There is a risk of injury due to accidental operation or electric shock due to a short circuit. ■The battery cable must be connected to the control box to use the battery.

  • Page 18: Connecting To The Power Supply

    CONNECTING TO THE POWER SUPPLY 1. Power outlets ●Do not connect multiple cables to a single power outlet. if other electrical equipment is plugged into a power outlet or an extension cable and its rated capacity is exceeded, it could cause the cable or plug to overheat, resulting in fire.

  • Page 19: Operation Procedures

    OPERATION PROCEDURES 1. Operation over view ●When performing a position operation, check that the patient’s head, arms, feet, or other body parts have not entered the gap of the side-rails, or the space between the back section base and the frame; There is a risk of getting caught, resulting in injury. ●When performing the height adjustment or inclination angle adjustment with the side-rail lowered, do not place legs under the side-rail.
  • Page 20 OPERATION PROCEDURES Trendelenburg ※PA-62**, PA-64** ●The head end of the bed can be lowered. The angle can be adjusted electrically up to 12 ⁰ 0 to 12° Reverse Trendelenburg ※PA-62**, PA-64** ●The head end of the bed can be raised. The angle can be adjusted electrically up to 12 ⁰...
  • Page 21 2. Handheld controller (PA-6*2*, PA-6*4* type) ●Do not allow the bed to be operated by a child aged 12 or under, or someone deemed incapable of comprehending the operation of the bed. If a child aged 12 or under, or someone deemed incapable of comprehending the operation (such as persons with dementia) operates the handheld controller by themselves, there is a risk of unexpected injury such as the body getting caught in the bed by accident.
  • Page 22 OPERATION PROCEDURES ●Do not drop the handheld controller or pull the cable. The handheld controller may get damaged or deformed, causing it to operate incorrectly. Request repair (or replacement) of a damaged handheld controller, if necessary. ●The handheld controller must be properly set in the storage position or hung the side-rail using one hook with the buttons facing out.
  • Page 23 3. Nurse control panel (PA-6*2*, PA-6*4* type) ●Do not allow persons other than doctors and nurses to operate the nurse control panel. There is a risk of injury due to incorrect operation. ●The nurse control panel includes switches for the following bed operations that are performed by doctors and nurses.
  • Page 24 OPERATION PROCEDURES (7) Start button Press the button to operate the nurse control panel. The lamp next to the button lights indicating the nurse cotrol panel can be used. (8) Lock button Press the button to switch the handheld controller and the patient control panel lock function ON or OFF.

  • Page 25: Side-Rail Integrated Panel

    4. Side-rail integrated panel (PA-6*1*, PA-6*3* type) ●Do not allow persons other than doctors and nurses to operate the side-rail integrated panel. There is a risk of injury due to incorrect operation. ●The side-rail integrated panel includes switches for the following bed operations that are performed by doctors and nurses.
  • Page 26 OPERATION PROCEDURES (7) Start button Press the button to operate the side-rail integrated panel. The lamp next to the button lights indicating the side-rail integrated panel can be used. (8) Lock button Press the button to switch the handheld controller and the patient control panel lock function ON or OFF.

  • Page 27: Patient Control Panel

    5. Patient control panel (PA-6*1*, PA-6*3* type) ●Do not allow the bed to be operated by a child aged 12 or under, or someone deemed incapable of comprehending the operation of the bed. If a child aged 12 or under, or someone deemed incapable of comprehending the operation (such as persons with dementia) operates the patient control panel by themselves, there is a risk of unexpected injury such as the body getting caught in the bed by accident.

  • Page 28: Emergency Cpr (Back-Lowering) Function

    OPERATION PROCEDURES 6. Emergency CPR (back-lowering) function ●During the emergency CPR operation, make sure that the patient's and/or user's head, arms, feet or other parts have not entered the gap between the back section base and the frame. There is a risk of getting caught, resulting in injury.

  • Page 29: Adjusting The Angle Of The Leg Section Base

    7. Adjusting the angle of the leg section base ●The angle of the leg section base must be adjusted by at least two persons from both sides of the bed. If only one person attempts to adjust the angle, the person may get caught between the leg section base and main frame, resulting in injury.

  • Page 30: Casters

    OPERATION PROCEDURES 8. Casters ●Lock the casters at all times except when moving the bed. The bed may move when a patient gets into or out of the bed, resulting in an unexpected injury. ●Do not attempt to forcibly move the bed when the casters are locked (fixed), as doing so will cause malfunctions.
  • Page 31 <Individual locking system> ●Use the stopper to lock or unlock the casters. ●Stoppers are on four casters on each corners of the bed.When locking, be sure to lock all casters. ●Depressing the stopper locks the swiveling and rotation of the caster. ●Prior to locking, be sure that the caster is not out of the bed frame.

  • Page 32: Bed Side-Rails

    OPERATION PROCEDURES 9. Bed side-rails ●There are a total of four side-rails, two side-rails on the left and right, respectively. ●Side-rails prevent the patient from falling off the bed. ●All the side-rails are provided with shock absorber. Side-rail position when it is raised. Side-rail position when it is lowered.
  • Page 33 ●Be careful not to allow any part of the body (especially the head or neck) to enter the gap between the side-rail and the mattress base or the mattress. When the head or neck enters the gap, the patient might not be able to withdraw, and there is a risk of injury. ●Be especially careful to check patients who might act in unexpected ways or cannot maintain their posture independently.

  • Page 34: Extension Frame

    OPERATION PROCEDURES 10. Extension frame ● When using the extension frame, Be sure to use a suitable extension mattress described below.If an unsuitable mattress is used, patients could get caught between the mattress and side rail and get injured. Unsuitable mattresses exert a burden on the bed and may induce a failure. ●...

  • Page 35: Accessory Rails

    OPERATION PROCEDURES 11. Accessory rails ●Do not apply more than 3kg load to the accessory rail. This may caught damage and deformation of the accessory rail. ■Accessory rails are provided on both sides on the bottom of the hip section base.These rails can be used for hanging the urine bags, etc.

  • Page 36: Restraint Belt Mounting Brackets

    12. Restraint belt mounting brackets ●Do not perform the bed operation such as raising the back or knee section base with a restraint belt attached to the main frame. The patient’s body may be squeezed resulting in injury or the bed may get damaged or deformed.

  • Page 37: Option Attachment Holes

    OPERATION PROCEDURES 14. Option attachment holes ■Option attachment holes are at the four corners of the bed. It can be installed IV pole, oxygen cylinder holder and foot spacer. Headboard attachment hole Footboard attachment hole Option attachment hole Option attachment hole ●During tilt angle adjustment, pay attention the board and option attachment holes will become tilted at an angle.

  • Page 38: Battery Unit ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．37

    12 hours, please change the battery. ○When you change the battery, please contact Paramount Bed or your distributor. ■The battery is an auxiliary power supply for operating an electrically operated bed when not connected to a power outlet.

  • Page 39: X-Ray Cassette Tray ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．38-39

    OPERATION PROCEDURES 17. X-ray cassette tray (PA-6***X type) ●Always disconnect the power plug for the bed from the power outlet when using X-ray apparatus. Using the X-ray apparatus without disconnecting the power plug may cause operational failure or malfunction. ●When placing a cassette to the cassette tray, be careful not to let the cassette fall from the cassette tray.
  • Page 40 17. X-ray cassette tray (PA-6***X type) ■Setting a Cassette. Set a cassette while the back section base is in holizontal status. X-ray radiography is not possible while in inclination (Trendelenburg). ①Detach the headboard. ②Pull the lock lever toward you to unlock it. Lock lever Lock status Unlock status...

  • Page 41: Foot Light

    OPERATION PROCEDURES 18. Foot light (Optional) ■The foot lights are located on each side of the bed under the hip section base. ■In case of getting down from the bed at night, the foot lights can be used for lighting up the patient's feet.
  • Page 42 ●Be sure to use a mattress of dimensions specified by Paramount Bed, described below. If an unsuitable mattress is used, patients could get caught between the mattress and side rail and get injured.

  • Page 43: Optional Accessories

    ※ In some countries or regions. some of the medical device or its accessories fall under the category of medical devices. ●Recommend accessories may differ due to specification changes or according to product combinations. For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 44: Pole(Kc-56A/Kc-56B/Ec-562) ．．．．．．．．．．．．．．．．．．．．．．．．43

    When the pipe has been adjusted to the desired length, tighten the knob bolt to fasten the pipe. ③Hang the intravenous bags or similar items on the IV pole. Tighten Loosen Hook Sliding pipe Knob bolt Option attachment hole ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 45: Oxygen Cylinder Holder(Pc-5038) ．．．．．．．．．．．．．．．．．．．．．．．44

    ②Loosen the knob bolt on the oxygen cylinder holder, and then slowly insert the oxygen cylinder into the holder from the top. ③Firmly tighten the knob bolt to fasten the oxygen cylinder. Oxygen cylinder holder Tighten Loosen Knob bolt Headboard ●For any queries, please feel free to contact Paramount Bed or your distributor.
  • Page 46 ③Loosen the knob bolt on the oxygen cylinder holder, and then slowly insert the oxygen cylinder into the holder from the top. ④Firmly tighten the knob bolt to fasten the oxygen cylinder. Oxygen cylinder holder Option attachment hole Loosen Tighten Knob bolt ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 47: Lifting Pole(Pc-5058) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．46

    ④Pull down the grip to make sure that the lifting pole is attached firmly. Parts of the lifting pole Grip Knob bolt Outer pipe ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 48: Bed Linen Rack(Pc-5060) ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．47

    Using the bed linen rack Storing the bed linen rack ※ In some countries or regions. some of the medical device or its accessories fall under the category of medical devices. ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 49: Foot Spacer(Pc-5061A)

    Option attachment hole Foot spacer storage (PC-5063A) ●When using the extension frame function, the foot spacer cannot be used. For foot end open side-rail type bed only. ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 50: Bedside Table

    1140 Note: Use the bedside table within this range. (Unit:mm) The bedside table cannot be used in these locations due to interference with the bed. ●For any queries, please feel free to contact Paramount Bed or your distributor.

  • Page 51: Product Symbol Definitions

    PRODUCT SYMBOL DEFINITIONS ■The symbols below are used for the product. Symbol Description Symbol Description ●4 casters in locked status (Lock ●CE mark position) ●4 casters in unlocked status (Free ●Indoor use symbol position) ●Bed transportation status (steering ●Electrical waste position) ●Take care to prevent body part from ●Refer the instruction manual...

  • Page 52: Regular Inspection And Daily Maintenance

    Inspect for loose parts, the operation of moving parts on the bed, and the presence of damage regularly. When an irregularity has been noticed or when a detailed inspection is desired, contact Paramount Bed or your distributor. Operation details Inspection items Back raise operation (p.18 to...
  • Page 53 ■Lubrication (if there is abnormal noise) ●Lubrication is needed if there is abnormal noise. Please feel free to contact Paramount Bed or your distributor to be lubricated. ●The water adhesion to the bed or the mattress, or moisture may cause corrosion, abnormal noise or contamination.

  • Page 54: Troubleshooting ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．53-54

    ■Bed damaged in earthquakes, fires, floods or other incidents must be inspected and repaired by Paramount Bed or your distributor. Otherwise, there is a risk of electric shock or fire due to short circuit or current leakage from electrical parts, of injury due to malfunctioning caused by deformation of the bed.
  • Page 55 ■Product ID label locations Product ID labels are affixed to the foot end of the main frame and on the inside of the footboard. <Main frame> <Footboard> Product ID Label Product ID Label ■Product lifetime The lifetime of this equipment is typically eight (8) years. Lifetime is defined as the period during which the product will maintain the specified performance and safety, provided it has been maintained and operated in conditions of normal use in accordance with the requirements in this instruction manual.

  • Page 56: Long-Term Storage

    (See p.16-17） ●Inspect the product regularly at least once a year, even if it is during storage. Bed disposal When the PA-6000 series bed has reached the end of its usable life, discard it according to local standards.

  • Page 57: Specifications ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．56-64

    SPECIFICATIONS ●φ125 Integral smart casters with total locking system (Anti static caster is also available) *Subject to normal manufacturing tolerances Family Name PA-6000Series Product Name Electrical Hospital Bed PA-6115, PA-6125 ／ PA-6315, PA-6325, PA-6215, PA-6225 ／ PA-6415, PA-6425, PA-6135, PA-6145 ／ PA-6335, PA-6345, PA-6235, PA-6245 ／...
  • Page 58 SPECIFICATIONS ●φ125 MCS smart casters with total locking system (Anti static caster is also available) *Subject to normal manufacturing tolerances Family Name PA-6000Series Product Name Electrical Hospital Bed PA-6118, PA-6128 ／ PA-6318, PA-6328, PA-6218, PA-6228 ／ PA-6418, PA-6428, PA-6138, PA-6148 ／ PA-6338, PA-6348, PA-6238, PA-6248 ／...
  • Page 59 ●φ125 Corrosil casters with individual locking system *Subject to normal manufacturing tolerances Family Name PA-6000Series Product Name Electrical Hospital Bed PA-6119, PA-6129 ／ PA-6319, PA-6329, PA-6219, PA-6229 ／ PA-6419, PA-6429, PA-6139, PA-6149 ／ PA-6339, PA-6349, PA-6239, PA-6249 ／ PA-6439, PA-6449, Model No.
  • Page 60 SPECIFICATIONS ●φ150 Integral smart casters with total locking system (Anti static caster is also available) *Subject to normal manufacturing tolerances Family Name PA-6000Series Product Name Electrical Hospital Bed PA-6110, PA-6120 ／ PA-6310, PA-6320, PA-6210, PA-6220 ／ PA-6410, PA-6420, PA-6130, PA-6140 ／ PA-6330, PA-6340, PA-6230, PA-6240 ／...
  • Page 61 Range Environmental conditions When transported or stored When in use Temperature -10 to 50 5 to 40 Humidity 20 to 90%RH 20 to 90%RH Air pressure 700 to 1,060hPa 700 to 1,060hPa User weight (min-max) 40kg to 180kg Minimum user height 146cm Patient target...
  • Page 62 Without shield Guidance and Manufacturer's Declaration - Electromagnetic Emissions The PA-6000 Series is intended for use in the following electromagnetic environment. The customer or user of the PA-6000 Series should make sure it is used in such an environment. Emission test...
  • Page 63 Guidance and Manufacturer's Declaration - Electromagnetic Immunity The PA-6000 Series is intended for use in the following electromagnetic environment. Users or customers must use bed in this environment. IEC 60601-1-2/EN 60601-1-2 Immunity test Compliance level Test level Static electricity discharge (ESD) Contact discharge: ±8kV...
  • Page 64 SPECIFICATIONS Guidance and Manufacturer's Declaration - Electromagnetic Immunity The PA-6000 Series is intended for use in the following electromagnetic environment that used wireless RF transciever. Electromagnetic interference can be prevented by maintaining the minimum distance between RF transciever and PA-6000 Series depend on the maximum output and frequency of the communication device as recommended below.
  • Page 65 If the intensity of the magnetic field in the location where the PA-6000 Series is used exceeds the above RF compliance level, make sure to monitor if the PA-6000 Series operates appropriately. If abnormal movement is found, take additional measures as needed, such as changing the direction or position of the PA-6000 Series.

  • Page 66: After-Sales Service

    Mattress, casters, handheld controller, nurse controll panel, battery, the rubber parts are consumable parts. 2.Minimum stock availability period Paramount Bed keeps replacement parts (necessary to maintain bed performance) in stock for at least 8 years after the discontinuation of production. 3.Questions regarding after-sales service For any queries, please feel free to contact your distributor or to the following address.
  • Page 67 NOTES...
  • Page 68 2023-01...
