INSTRUCTION MANUAL
7C01750700A2

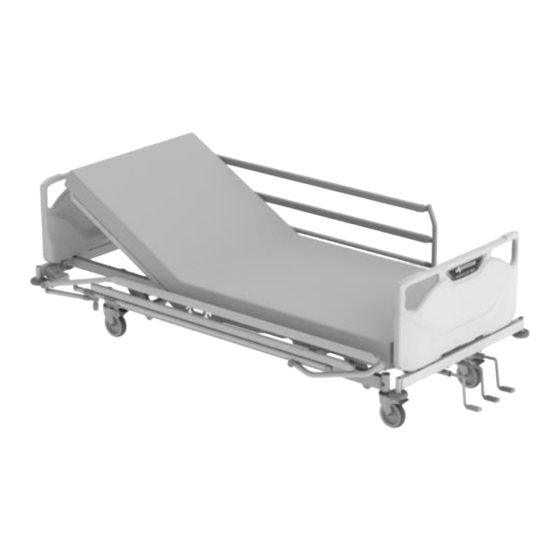

Note: In the illustration, an optional
mattress is attached.
Thank you for purchasing A5 Series Bed.
This instruction manual describes precautions and how to safely use and operate the bed.
●Before using this bed, please read this instruction manual
to fully understand the safe and proper operating procedures.
●The correct operating procedures should be explained not
only to the persons using the bed but also to caregivers.
●After reading this instruction manual,
store it where it can beeasily accessed for later reference.
●The actual product purchased may differ from detailed
descriptions given in this instruction manual due to product improvements.
●Values in the specification such as working range, dimensions,
angles and mass are subject to normal manufacturing tolerances.
Besides some exemptions, display purpose words such as
"approximately", "about" etc. are omitted.
●For any queries, please feel free to directly contact Paramount Bed or your distributor.
●Users and/or patients are requested to report information about any serious incident
related to this equipment that occurs within the EU to the manufacturer and
the regulating authority of the member country of residence.
'Serious incident' means any incident that directly or indirectly led,
might have led or might lead to any of the following:
・ the death of a patient, user or other person.
・ the temporary or permanent serious deterioration of a patient's,
user's or other person's state of health.
・ a serious public health threat.
A5 Series Bed
