Page 1: User Manual

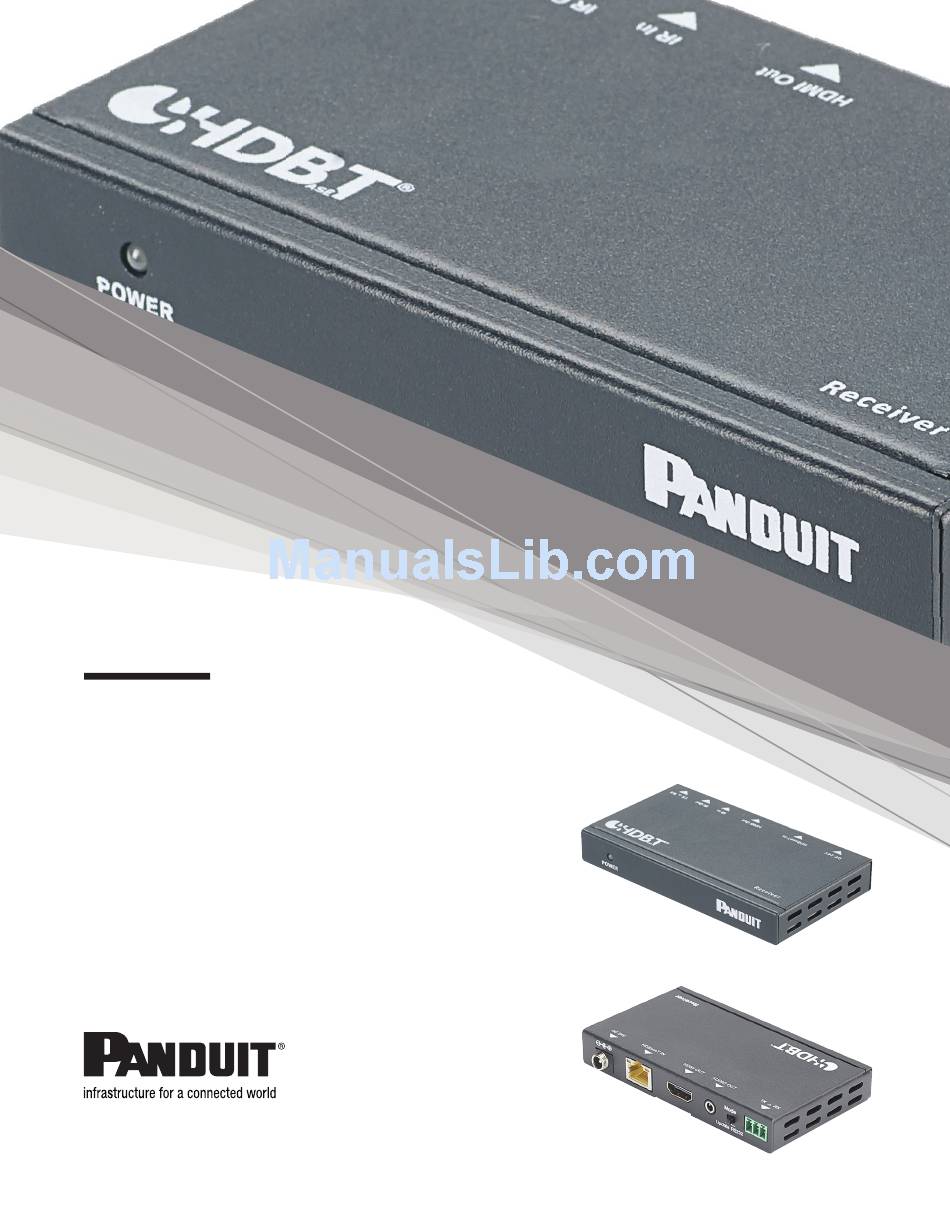

User Manual HDBaseT Receiver With Audio Extractor – CMHDBTWPRX Front View 18900 Panduit Dr, Tinley Park, IL 60487 (708) 532-1800 www.panduit.com Back View... -
Page 2: Table Of Contents
Features __________________________________________________________________________2 Package Contents _________________________________________________________________2 Technical Specifications ____________________________________________________________3 Operation Controls and Functions ___________________________________________________5 Preparing RS232 Cable _____________________________________________________________6 Connectivity Instructions ___________________________________________________________8 Application Examples ______________________________________________________________8 Connection Diagram _______________________________________________________________9 Warranty & Safety Information _____________________________________________________ 10 USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com... -
Page 3: Introduction
HDMI and controls over Cat 6/6A cable. CMHDBTWRX also supports audio extraction/ audio de-embedding from the HDMI signal for systems with external speaker systems. This unit can be paired with any Panduit HDBase-T transmitter product. FEATURES • HDMI 1.4b, HDCP 2.2 and EDID 1.4 •... -
Page 4: Technical Specifications
Power Consumption 6W (Max) Operation Temperature 32 - 104 °F / 0 - 40 °C Storage Temperature -4 - 140°F / -20 - 60°C Relative Humidity 20 - 90% RH (no condensation) USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com... -
Page 5: Operation Controls And Functions
• Off: The Transmitter and Receiver are not connected by a category cable. 9. Data Signal Indicator Lamp • On (Solid): The HDMI signal is carrying HDCP. • Flashing: The HDMI signal is not carrying HDCP. • Off: No HDMI signal. USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com... -
Page 6: Preparing Rs232 Cable
3, use the connectors shown in the following figure as a reference if using DB9 male or female. Test the conduc-tors with a multimeter to confirm termination. USER MANUAL – HDBaseT Transmitter – CMHDBTBTX www.panduit.com... - Page 7 (serial null modem wiring). This means pin 2 of the DB9 connector will connect to the Rx pin of the HDBaseT device and pin 3 of the DB9 connector will connect to the Tx pin of the HDBaseT device. USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com...
-
Page 8: Connectivity Instructions
5. Attach the power cord to either Transmitter or Receiver (only one connection needed). a. Wall plate kits must have power applied to Receiver. 6. Power up display and source. APPLICATION EXAMPLES Description 1 POC (Power Over Cable) Application Example USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com... -
Page 9: Connection Diagram
Description 2 Bidirectional RS232 Control Application Example CONNECTION DIAGRAM USER MANUAL – HDBaseT Receiver with Audio Extractor www.panduit.com... -
Page 10: Safety Information
WARRANTY Please refer to Panduit.com for the latest warranty information on products SAFETY INFORMATION To reduce the risk of electric shock, do not expose this product to rain or moisture. Do not modify the wall plug. Doing so will void the warranty and safety features.
