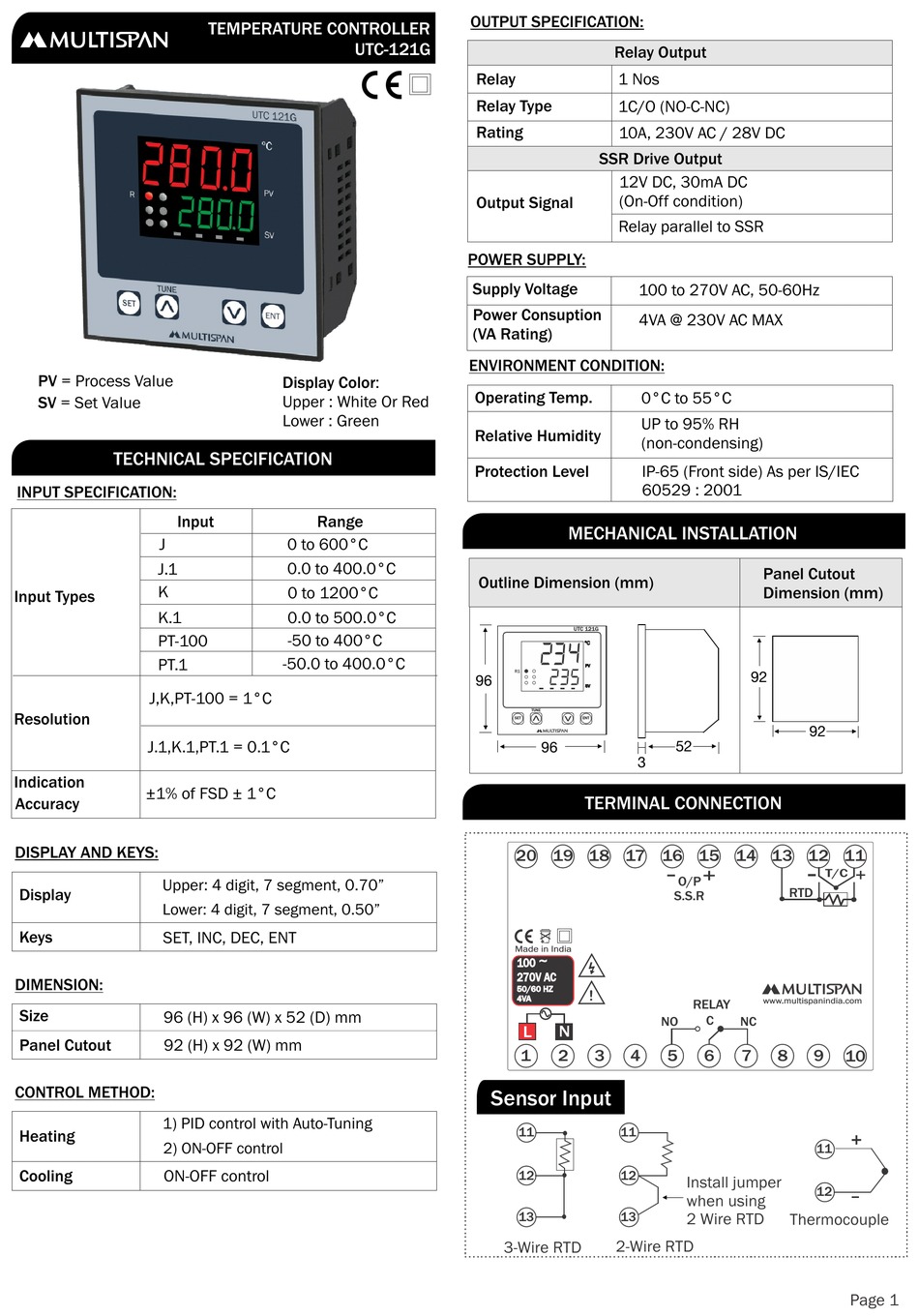

PV = Process Value
SV = Set Value
TECHNICAL SPECIFICATION
INPUT SPECIFICATION:
Input
J
J.1
K
Input Types
K.1
PT-100
PT.1
J,K,PT-100 = 1°C
Resolution
J.1,K.1,PT.1 = 0.1°C
Indication
±1% of FSD ± 1°C
Accuracy
DISPLAY AND KEYS:
Upper: 4 digit, 7 segment, 0.70"
Display
Lower: 4 digit, 7 segment, 0.50"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
96 (H) x 96 (W) x 52 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
CONTROL METHOD:
1) PID control with Auto-Tuning
Heating
2) ON-OFF control
Cooling
ON-OFF control

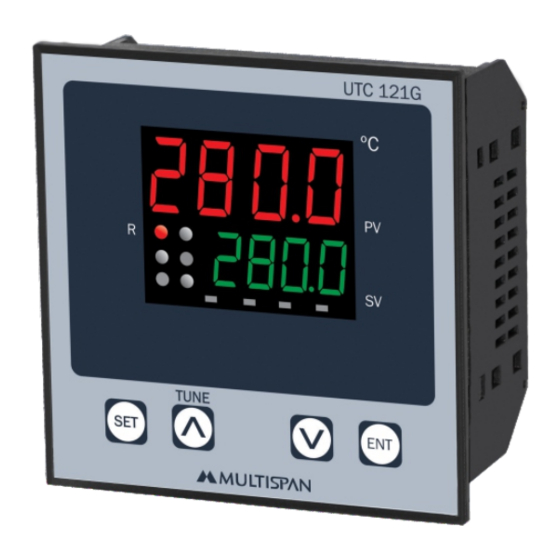

TEMPERATURE CONTROLLER
UTC-121G
Display Color:
Upper : White Or Red
Lower : Green
Range
0 to 600°C
0.0 to 400.0°C
0 to 1200°C
0.0 to 500.0°C
-50 to 400°C
-50.0 to 400.0°C
OUTPUT SPECIFICATION:
Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
(On-Off condition)
Output Signal
Relay parallel to SSR
POWER SUPPLY:
Supply Voltage
100 to 270V AC, 50-60Hz
Power Consuption
4VA @ 230V AC MAX
(VA Rating)
ENVIRONMENT CONDITION:
Operating Temp.
Relative Humidity
Protection Level
MECHANICAL INSTALLATION
Outline Dimension (mm)
UTC 121G
ºC
3 2 4
PV
235
R1
96
SV
TUNE
SET
ENT
96
3
TERMINAL CONNECTION
20
19
18
17
Made in India
~
100
270V AC
50/60 HZ
!
4VA
L
N
1
2
3
4
Sensor Input
11
11
12
12
13
13
2-Wire RTD
3-Wire RTD
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
92
92
52
16
15
14
13
12
-
+
O/P
RTD
S.S.R
www.multispanindia.com
RELAY
C
NO
NC
5
6
7
8
9
Install jumper
when using
2 Wire RTD
Thermocouple
11
T/C
10
11
12
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UTC-121G and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN UTC-121G

  • Page 1 OUTPUT SPECIFICATION: TEMPERATURE CONTROLLER UTC-121G Relay Output Relay 1 Nos Relay Type 1C/O (NO-C-NC) Rating 10A, 230V AC / 28V DC SSR Drive Output 12V DC, 30mA DC (On-Off condition) Output Signal Relay parallel to SSR POWER SUPPLY: Supply Voltage...
  • Page 2 STATUS LED DESCRIPTION WARNING GUIDELINES WARNING : Risk of electric shock. 2 345 1. To prevent the risk of electric shock, power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is 2500 being supplied.
  • Page 3 ERROR DISPLAY PARAMETER SETTING When an error has occurred the display indicates error codes as given below. Set Point Setting ERROR MEANING Process Value Sensor is not connected or OPEN Over range condition or Set Value sensor break Sensor connection is reversed Set Point Press key for 3 sec to...
  • Page 4 Auto Tuning:- PARAMETER SETTING The Auto-tuning function automatically computes Control Parameter and sets the Proportional band (Pb) , Integral time (It), Derivative time (dt), and cycle time as per process To ENTER CONTROL Password characteristics. PARAMETER Message SETTING, ENTER “37” Tuning LED will turn “ON”...
