Summary of Contents for Rose electronics CrystalLink USB 2.0 CAT5

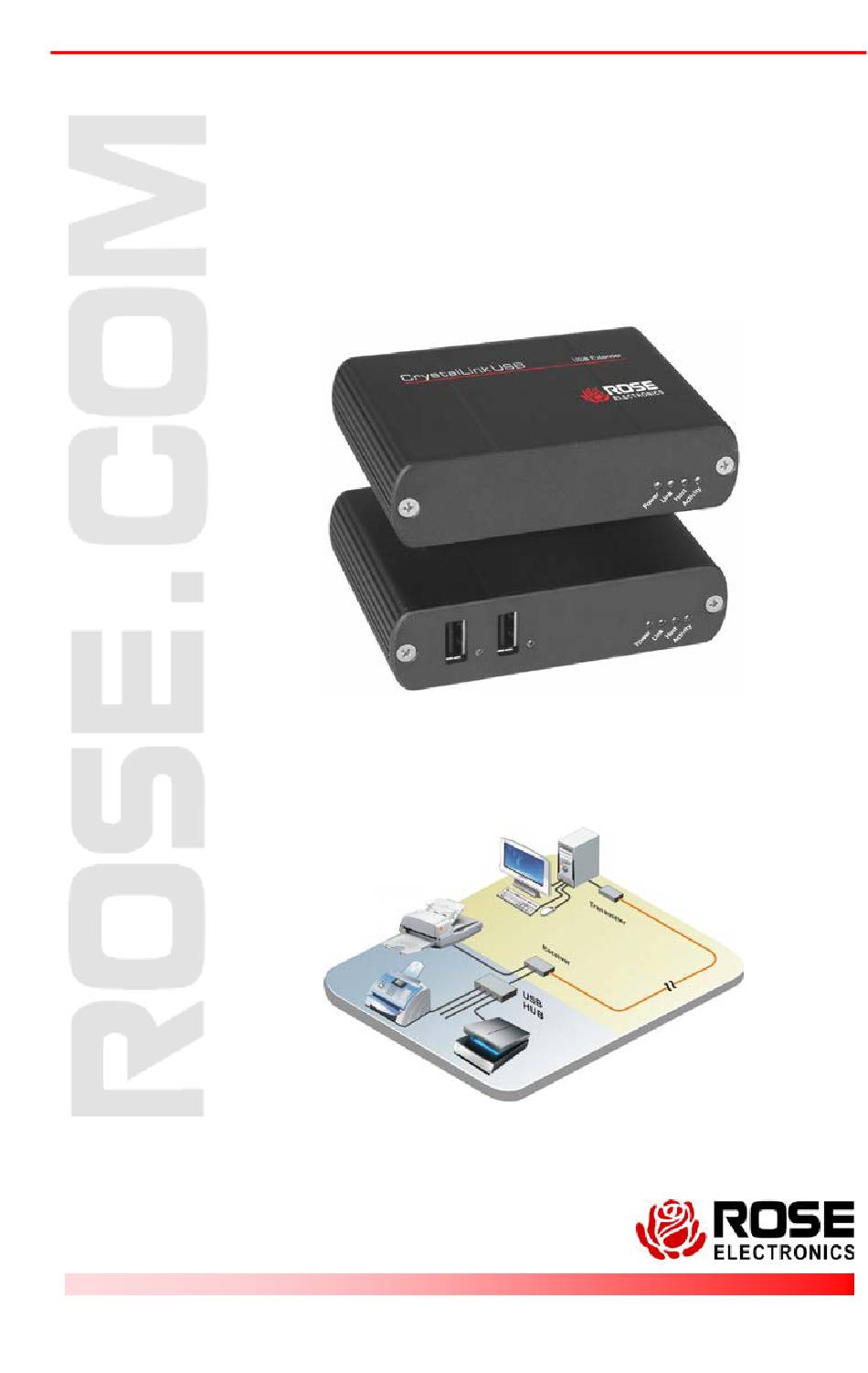

- Page 1 CrystalLink USB 2.0 CAT5 USB CAT5 Extender INSTALLATION AND OPERATIONS MANUAL Part Number CLK-2U2TP-100M 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 2: Limited Warranty
Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. -
Page 3: European Union Declaration Of Conformity
FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A digital device in accordance with the specifications of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference... -
Page 4: Table Of Contents
System introduction ..................1 Features ......................2 Package contents ..................2 Rose Electronics web site................2 About this manual ..................2 CrystalLink USB 2.0 CAT5 model ..............3 Transmitter ....................3 Receiver ..................... 4 Cables ......................4 Verifying the installation ................5 Operating Instructions .................. -
Page 5: Disclaimer
Thank you for choosing the Rose Electronics CrystalLink USB 2.0 CAT5 extender. The CrystalLink USB 2.0 CAT5 extender is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. The CrystalLink USB 2.0 CAT5 has proven to be a valuable investment for any business, big or small, that has a need to access and extend their USB 1.1 or 2.0 peripherals from a remote location. -
Page 6: Features
Installation and operations manual CD. CAT5 and USB cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller, so the problem can be quickly resolved. Rose Electronics web site Visit out web site at www.rose.com for additional information on the CrystalLink USB 2.0 CAT5 extenders and other products that are designed... -
Page 7: Crystallink Usb 2.0 Cat5 Model
MODEL CrystalLink USB 2.0 CAT5 model Transmitter Indicator LEDs Power Link Host Activity Connectors Power - 24V DC USB - Type B Link - RJ45F Power LED (Blue) On when power is supplied from the computer’s USB port, Off when no power is supplied... -
Page 8: Receiver
Receiver Indicator LEDs Power Link Host Activity Connectors Power – From Transmitter USB – (2) Type A Link - RJ45F Power LED (Blue) On when power is supplied from the computer’s USB port, Off when no power is supplied Host LED (Green) On when installed properly Link LED (Green) On when a link between the transmitter and... -
Page 9: Verifying The Installation
INSTALLATION Figure 1 outlines the basic installation of the CrystalLink USB 2.0 CAT5 extender. The installation steps below are a guide to properly install the units and cabling. Transmitter Receiver CAT5 Cable USB 1.1 or 2.0 Figure 1. Installation peripherals Before you install the CrystalView USB 2.0 CAT5 extender, it is... -
Page 10: Operating Instructions
Operating Instructions Operating your CrystalLink USB 2.0 extender is no different than having your USB peripherals directly connected to your computer’s USB port. Any compatible USB 1.1 or 2.0 device can be totally controlled and operated normally with no special configuration or commands. USB printers, digital cameras, scanners, or any compatible USB 1.1 or 2.0 device will function properly. -
Page 11: Troubleshooting Guide
Verify that the computer supports USB hubs Verify that the CrystalLink USB 2.0 CAT5 is recognized in the device manager as a Generic USB Hub, if not, contact tech support All LEDs are on but the USB device does not operate correctly Connect the USB device directly to the computer’s USB port. -
Page 12: Safety
SAFETY Safety The CrystalLink USB 2.0 CAT5 extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalLink USB 2.0 CAT5 extender should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 13 Safety and EMC Regulatory Statements Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
-
Page 14: Service Information
Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your CrystalLink USB 2.0 CAT5 extender consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical... -
Page 15: Appendix A. General Specifications
APPENDICES Appendix A. General Specifications Max distance 330 feet (100 meters) over CAT 5 (or better) stranded or solid conductor cable USB device support High-speed devices (480 Mb/s) (USB 2.0) Full speed devices (12 Mb/s) (USB 2.0 & 1.1) Low speed devices (1.5 Mb/s) (USB 2.0 & 1.1) USB hub support Any single chain can include up to 4 USB hubs plus one Receiver... - Page 16 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 Internet: www.rose.com...
