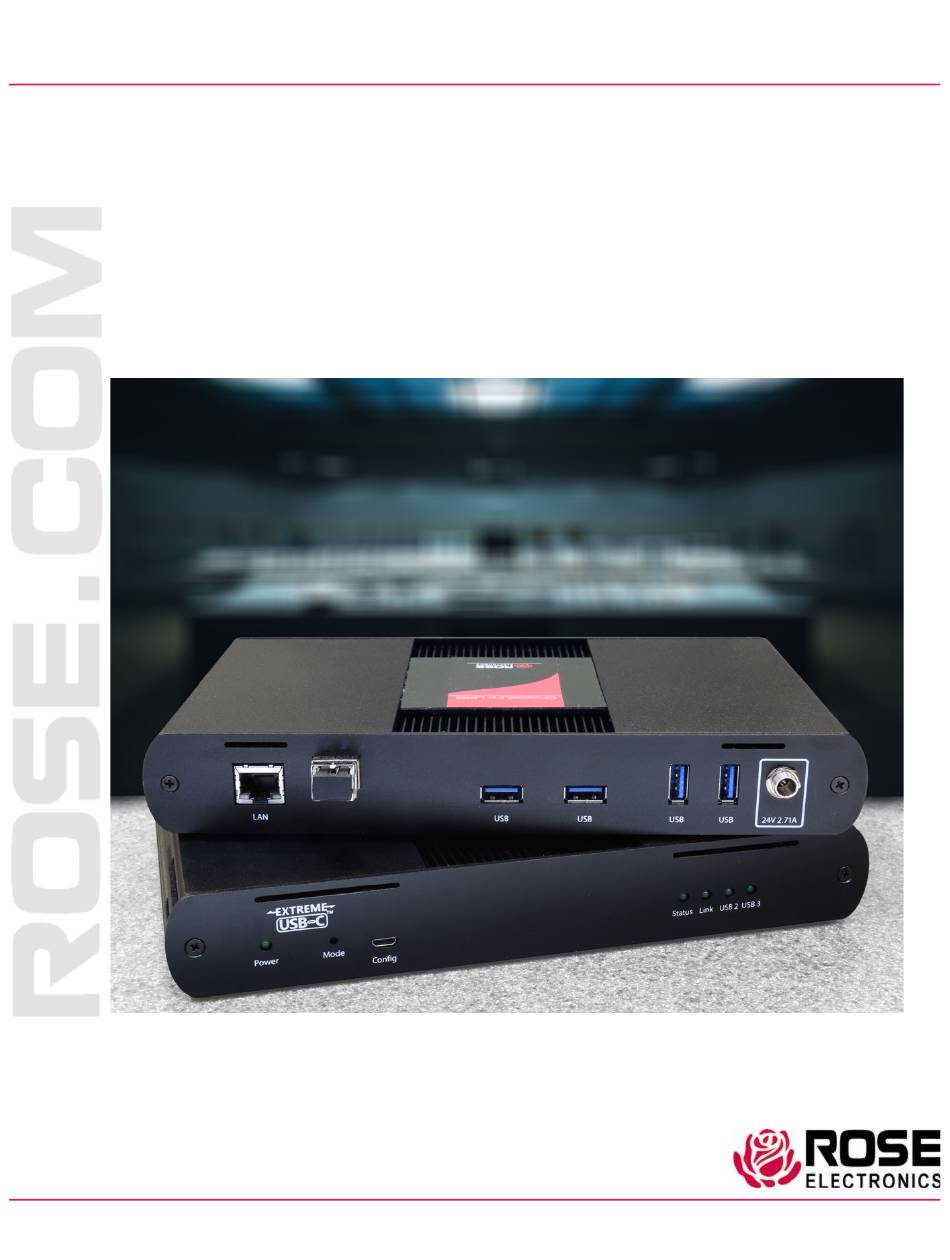

Page 1: Operation Manual
CrystalLink USB-3-2-1 Fiber USB-3-2-1/2.0/1.1 Multimode Fiber Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com... -
Page 2: Limited Warranty
CrystalLink USB-3-2-1 Fiber Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■... -
Page 4: Table Of Contents
Figures Figure 1. transmitter unit – LED’s and connectors Figure 2. Receiver unit – LED’s and connectors Figure 3. CrystalLink USB-3-2-1 fiber extender – standard installation Figure 4. Installing transmitter unit cables Figure 5. Installing receiver unit cables Figure 6. Chassis mounting options Tables Table 1. -
Page 5: Disclaimer
Additional USB devices can be connected using a powered USB hub. The CrystalLink USB-3-2-1 fiber extension system consists of two units, a transmitter and a receiver. The transmitter connects to your computers’ USB port. The transmitter is linked directly to the receiver using industry standard OM3 duplex multimode fiber cable and the USB devices connect to the receiver. -
Page 6: Package Contents
All references to fiber cable in this document refer to OM3 duplex LC multimode fiber cable. Application Examples The CrystalLink USB-3-2-1 fiber extender is ideal for use with USB-3-2-1 conferencing cameras or in computer room or industrial environments where USB devices need to be connected remotely from a host ■... -
Page 7: Crystallink Usb-3-2-1 Fiber Extender Models

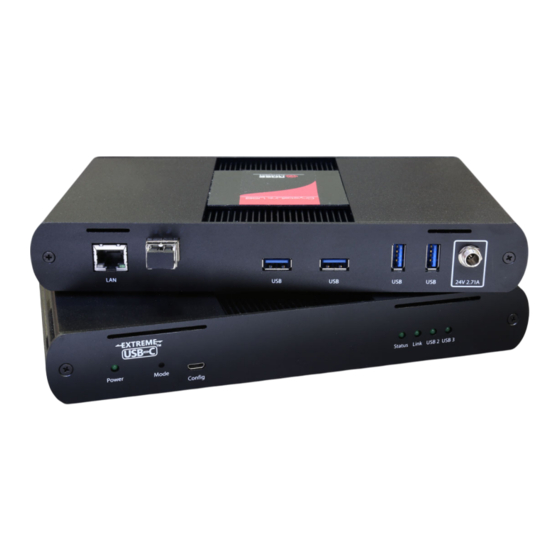

MODELS CrystalLink USB-3-2-1 Fiber Extender Models The CrystalLink USB-3-2-1 fiber extender enables users to locate high-speed USB device(s) up to 656 feet (200 meters) from the computer. Transmitter Unit The transmitter connects to the host device using the supplied USB3.1 Gen 1 cable. Power for the transmitter is provided by included 24V 1A power adapter. -
Page 8: Receiver Unit
LED is OFF when no USB2.0 connection is detected. LED is SOLID ON when an active USB3.11 connection is established through the USB-3-2-1 LED extender system. LED BLINKS when the USB3.11 connection is suspended/asleep. LED is OFF when no USB3.11 connection is detected. CrystalLink USB-3-2-1 Fiber Extender Manual... -
Page 9: Figure 2. Receiver Unit - Led's And Connectors
Duplex LC fiber port to connect the transmitter to the receiver. Device Ports Accepts all USB devices. (USB3.1 Type A) DC Power Port Locking connector for the included 24VDC 2.71A power adapter Figure 2. Receiver unit – LED’s and connectors CrystalLink USB-3-2-1 Fiber Extender Manual... -
Page 10: Installation Procedure
Network Camera Figure 3. CrystalLink USB-3-2-1 fiber extender – standard installation Equipment Location Before installing the CrystalLink USB-3-2-1 fiber extender, you will need to prepare your site and cable distance measurements. ■ Place the computer in the preferred location and set it up. -
Page 11: Installing The Transmitter
Assemble the power adapter and power cord together and connect them into a suitable AC outlet. Connect the power adapter to the receiver. Local LAN Cable Fiber Cable USB Devices Power Cable Figure 5. Installing receiver unit cables CrystalLink USB-3-2-1 Fiber Extender Manual... -
Page 12: Connecting The Transmitter To The Receiver
USB device when it is attached to your computer, then it may not function correctly) For Windows (XP, 7, 8, 8.1, 10) users, open Device Manager to confirm that the CrystalLink USB-3-2-1 fiber extender has been installed correctly. Expand the entry for Universal Serial Bus controllers by clicking the “+”... -
Page 13: Compatibility
USB Extender Mounting Kit (Purchased separately - USB Mounting Kit - Black) USB Extender Direct Surface Mounting (Using your own rack-shelf or tray) Option 1: CrystalLink USB-3-2-1 Fiber Extender Mounting Bracket Kit Contents: 2 mounting brackets 4 (M3) locking washers... -
Page 14: Figure 6. Chassis Mounting Options
CrystalLink USB-3-2-1 Mounting Bracket Illustration CrystalLink USB-3-2-1 Mounting Plate Holes Mounting plate holes Distance between the mounting holes is 1.653” x 8.090” (42.0 x 205.5mm) Figure 6. Chassis mounting options CrystalLink USB-3-2-1 Fiber Extender Manual... -
Page 15: Troubleshooting
Cold boot the host computer. computer is defective. Replace the USB3.1 Gen 1 cable with a The host computer’s USB3.1 different cable. controller has malfunctioned. If the problem is not resolved, contact Technical Support. CrystalLink USB-3-2-1 Fiber Extender Manual... - Page 16 If the second device does not operate, the extender may be malfunctioning. Contact Technical Support for assistance. If the second device operates as expected, then the first device may not be compatible with this extender. Contact Technical Support. CrystalLink USB-3-2-1 Fiber Extender Manual...
-
Page 17: Table 1. Troubleshooting Procedures
Power cycle the unit to return to operation. LEDs are scrolling LEFT to Unit is programming. Wait for the unit to finish programming. RIGHT, starting with STATUS. Table 1. Troubleshooting procedures CrystalLink USB-3-2-1 Fiber Extender Manual... -
Page 18: Safety
PRODUCT SAFETY Safety The CrystalLink USB-3-2-1 fiber extender, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. ... -
Page 19: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 20: Appendices
Operating Humidity 20% to 80% relative, non-condensing Storage Humidity 10% to 90% relative, non-condensing FCC Part 15 Class B, CE Class B, ICES-003 Class B, EMC EN55022, EN55024, Approvals EN55032 and EN61000, RoHS2 (CE), WEEE CrystalLink USB-3-2-1 Fiber Extender Manual... - Page 21 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
