CrystalView DVI Mini
DVI, USB 2.0 CATx Extender
Installation
and
Operations Manual
10707 Stancliff Road
Phone: (281) 933-7673
Houston, Texas 77099
WWW.ROSE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CrystalView DVI Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rose electronics CrystalView DVI Mini

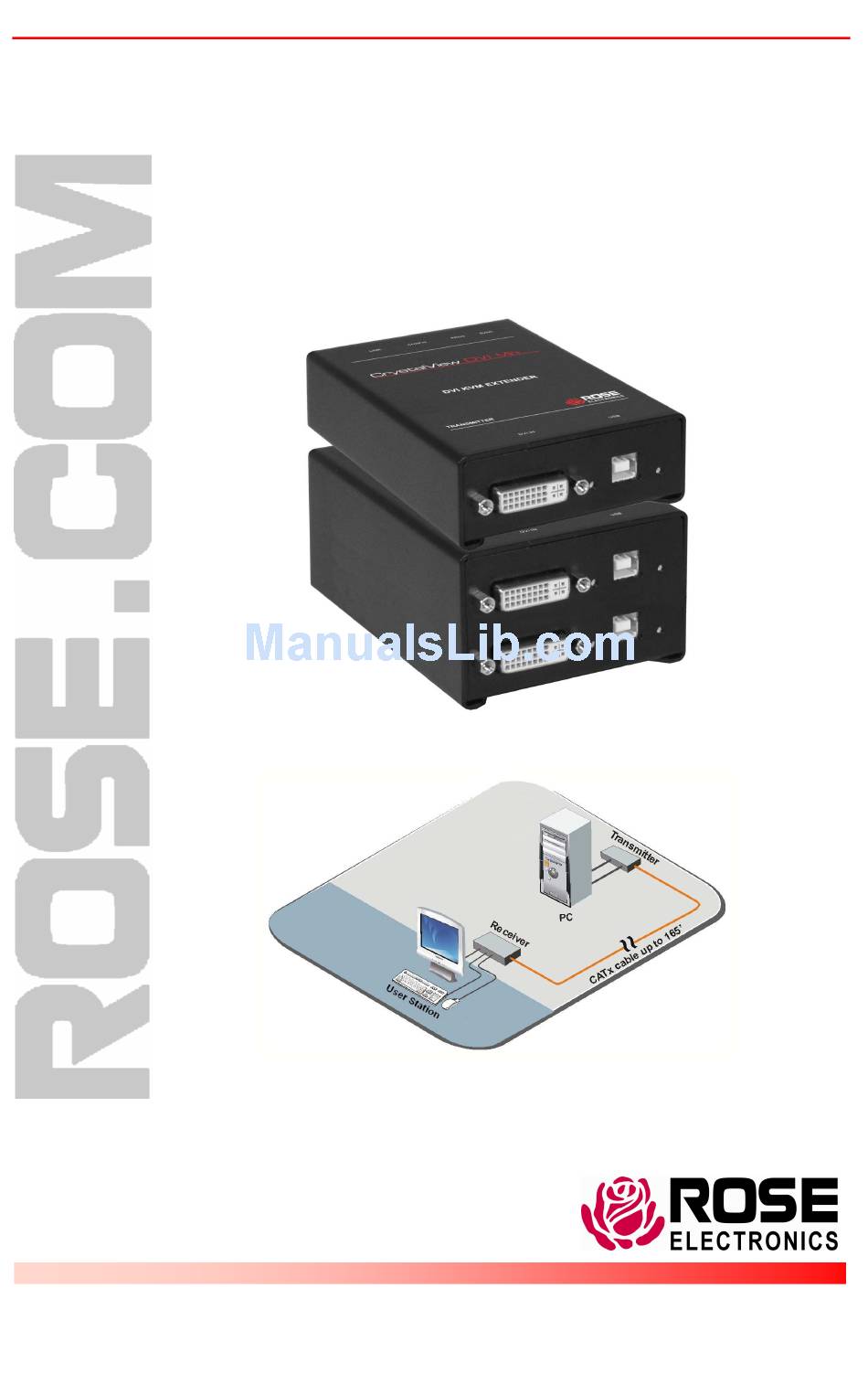

  • Page 1 CrystalView DVI Mini DVI, USB 2.0 CATx Extender Installation Operations Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
  • Page 3 LIMITED WARRANTY Rose Electronics warrants the CrystalView DVI Mini to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
  • Page 4 RoHS compliance All CrystalView DVI Mini models comply with the EC Directive 2002/95/EG on the Restriction of the use of certain Hazardous Substances in electrical and electronic equipment.
  • Page 5: Table Of Contents

    Figure 8. Dual head Installation (USB-2.0) ............13 Figure 9. Transmitter Dip switch settings ............14 Appendices PAGE # Appendix A - Specifications................23 Appendix B – Parts and Cables ................ 24 Appendix C - Diagnostics .................. 25 CrystalView DVI Mini Installation and Operations Manual...
  • Page 6: System Introduction

    165ft. (50m) away and have full control of the computer. The CrystalView DVI Mini is available in four models; single and dual head, HID USB and single and dual head USB 2.0 transparent. The dual head model allows a second video input to be connected to the transmitter unit.
  • Page 7: About This Manual

    About This Manual This manual covers the installation, configuration, and the operation of the CrystalView DVI Mini extender system. The system consists of a transmitter and receiver units, a computer to remotely access, and a remote KVM user station for remote access to the computer. The “Model” section describes the front and rear panel of the transmitter and receiver units.
  • Page 8: Features

    Automatic or manual resolution configuration Firmware upgradeable Rackmount kits available Package Contents CrystalView DVI Mini Transmitter and Receiver as ordered 2 – 5VDC international power adapter units 2 – Power cords 1 – DVI-D mm video cable (2 cables included with the dual head model) 1 –...
  • Page 9: Crystalview Dvi Mini Models

    MODELS CrystalView DVI Mini Models The CrystalView DVI Mini is available in the following models: Single head USB HID – part number CRK CRK- - - - M1DTXUD1D M1DTXUD1D M1DTXUD1D M1DTXUD1D Transmitter - Front View DVI-D video input USB Type B...
  • Page 10: Figure 2. Dual Head Usb Hid Model

    Receiver – Rear View Power +5VDC 2-Programming ports 2-Configuration Dip switches 2-RJ45 Link Figure 2. Dual head USB HID Model NOTE: Single and Dual head USB-HID models support two and only two USB-HID devices. CrystalView DVI Mini Installation and Operations Manual...
  • Page 11: Figure 3. Single Head Usb 2.0

    Configuration Dip switches Receiver – Front View DVI-I video output 4 – USB 2.0 Type A Receiver – Rear View Power +5VDC Programming port 2-RJ45 Link Configuration Dip switches Figure 3. Single head USB 2.0 CrystalView DVI Mini Installation and Operations Manual...
  • Page 12: Figure 4. Dual Head Usb 2.0 Model

    Receiver – Front View 2-DVI-I video outputs 2-USB HID Type A 4-USB 2.0 Type A Receiver – Rear View Power +5VDC 2-Programming ports 2-Configuration Dip switches 3-RJ45 Link Figure 4. Dual head USB 2.0 Model CrystalView DVI Mini Installation and Operations Manual...
  • Page 13: Compatibility

    Each USB 2.0 transparent port supplies a maximum current of 500 mA. Interconnect link The CrystalView DVI Mini Extenders require cabling specified for Gigabit Ethernet (1000BASE-T). The use of solid-core (AWG24), shielded, CAT 5e (or better) is recommended. CAT x Solid-Core S/UTP (CAT 5e) cable according to EIA/TIA-568-B.
  • Page 14: Unit Installation

    6. Connect up to 150 ft. (50 m) of CAT5e or better cable from the RJ45 connector on the Transmitter to the RJ45 connector on the Receiver. Power adapter CATx cable Power adapter Transmitter Receiver Figure 5. Single head Installation (USB-HID) CrystalView DVI Mini Installation and Operations Manual...
  • Page 15: Dual Head (Usb-Hid Model) Installation

    Transmitter to the RJ45 connectors on the Receiver. NOTE: USB-HID models support a maximum of two USB-HID devices. Figure 6. Dual head Installation (USB-HID) CATx cabling is connected as shown to the left. Up to 150 ft. max. CrystalView DVI Mini Installation and Operations Manual...
  • Page 16: Single Head (Usb-2.0 Model) Installation

    7. Connect two CAT5e or better cable from the RJ45 connectors on the Transmitter to the RJ45 connectors on the Receiver. Figure 7. Single head Installation (USB-2.0) CATx cabling is connected as shown to the left. Up to 150 ft. max. CrystalView DVI Mini Installation and Operations Manual...
  • Page 17: Dual Head (Usb-2.0 Model) Installation

    8. Connect up to 150 ft. (50 m) of CAT5e or better cables (3) from the RJ45 connectors on the Transmitter to the RJ45 connectors on the Receiver. Figure 8. Dual head Installation (USB-2.0) CATx cabling is connected as shown to the left. Up to 150 ft. max. CrystalView DVI Mini Installation and Operations Manual...
  • Page 18: Dip Switch Settings

    Standard Operation mode: Standard operation (Default) Dip-Switch 4 must be in the “OFF” (down) position during normal operation Test operation mode: Firmware update Set only during Firmware Update, if required Figure 9. Transmitter Dip switch settings CrystalView DVI Mini Installation and Operations Manual...
  • Page 19 CATx cables should have ferrites on both ends of the cable close to the transmitter and receiver’s RJ45 connector. A point to point connection is required. Patch panels in the line are allowed CrystalView DVI Mini Installation and Operations Manual...
  • Page 20: Command Mode

    <Left Shift> , <Left Shift> then press the <a> key. The screen will blank for a short time, then the unit will exit the command mode and the transmission parameters will be re-adjusted for optimum video quality. CrystalView DVI Mini Installation and Operations Manual...
  • Page 21: Ddc Information

    DDC Information The CrystalView DVI Mini has preset DDC information that is sent to the source computer. If this factory preset DDC information is not appropriate, you can read the attached monitor’s DDC information and the CrystalView DVI mini will use these values.
  • Page 22: Compatibility Information

    Supports all types of USB 2.0 devices like scanners, web cams, memory devices at USB high speed ( max. 480 Mbits/s) Note: CrystalView DVI Mini, USB-HID models support two and only two USB HID devices – keyboard and mouse, keyboard and touch screen, but not keyboard, mouse, and touchscreen.
  • Page 23: Troubleshooting

    LED off USB-HID device. (Receiver) Remove DVI and power cable and restart CON Unit. Connect power cable first. USB device does USB-HID device is not Contact tech support if necessary. not function supported CrystalView DVI Mini Installation and Operations Manual...
  • Page 24 Remove DVI and power cables and restart the Receiver Unit. Connect power cable first. USB device Device not detected by Check installation including without function required drivers. Reconnect USB device. Contact Tech support if necessary. CrystalView DVI Mini Installation and Operations Manual...
  • Page 25: Product Safety

    Except where explained in this manual, do not attempt to service this Unit yourself. Do not use this Unit near water. CrystalView DVI Mini is for indoor use only, do not link between buildings Do not connect the CATx cable to any other equipment, especially network or telecommunication equipment Assure that the placement of this Unit is on a stable surface.
  • Page 26: Service Information

    Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your CrystalView DVI Mini, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose Electronics Technical Support Department at: Phone: (281) 933-7673 E-Mail: TechSupport@rose.com...
  • Page 27: Appendix A - Specifications

    W: 3.1in / 80 mm D: 4.3 in / 110 mm D: 4.3 in / 110 mm Dual-Head Receiver H: 1.1 in / 29 mm W: 6.3in / 161 mm D: 4.3 in / 110 mm CrystalView DVI Mini Installation and Operations Manual...
  • Page 28: Appendix B - Parts And Cables

    CRK-M1DTXUD2D USB-HID transmitter and receiver Dual head CRK-M1DTXTD1D USB-2.0 transmitter and receiver Single head CRK-M1DTXTD2D USB-2.0 transmitter and receiver Dual head CAB-DVImm DVI-D male-to-male CAB-USBABnnn USB Type A to Type B CAB-08C5UTPnnn CAT5 cable CrystalView DVI Mini Installation and Operations Manual...
  • Page 29: Appendix C - Diagnostics

    Appendix C - Diagnostics The CrystalView DVI Mini has the following LEDs for status indication at Transmitter and Receiver Units: USB-HID Models (Transmitter and Receiver Unit) Diagnostic LEDs Status Diagnostics Power Device not ready (red) Device ready Link Status No connection via interconnect cable...
  • Page 30 No DVI signal from CPU Unit or no monitor detected DVI signal from video source available flashing DDC information is being transmitted from monitor USB Status No USB connection (green) USB connection available CrystalView DVI Mini Installation and Operations Manual...
  • Page 32 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 Internet: WWW.ROSE.COM...
