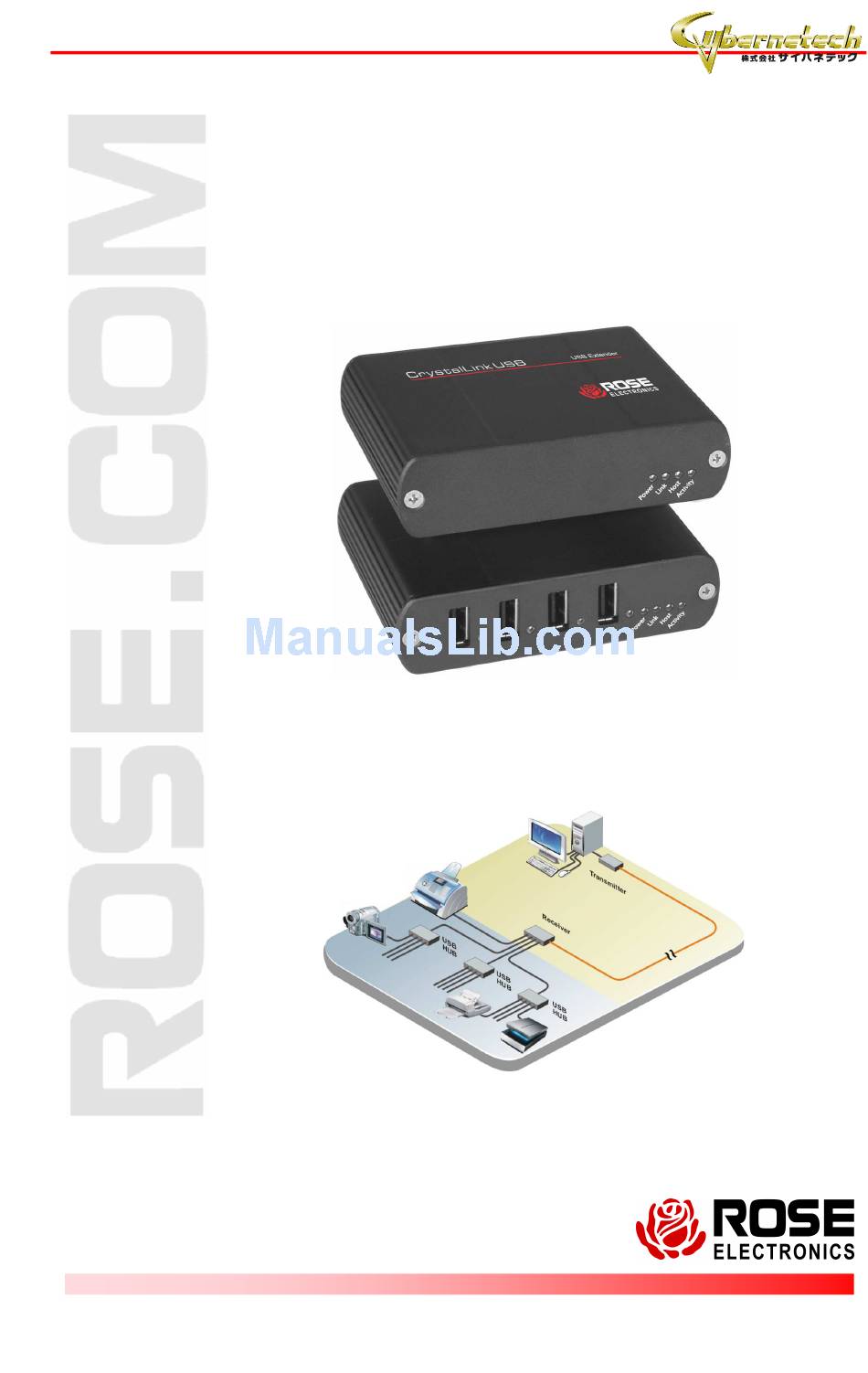

- Page 1 CrystalLink USB 2.0 CAT5 INSTALLATION AND OPERATIONS MANUAL Part Number CLK-4U2TP-100M 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 2 Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new.
- Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A digital device in accordance with the specifications of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
-
Page 4: Table Of Contents
Page # Disclaimer ...................... 1 System introduction ..................1 Features......................2 Package contents ..................2 Rose Electronics web site................2 About this manual ..................2 CrystalLink USB 2.0 CAT5 model ..............3 Transmitter ....................3 Receiver ..................... 4 Cables ......................4 Verifying the installation ................ -
Page 5: Disclaimer
System introduction Thank you for choosing the Rose Electronics CrystalLink USB 2.0 CAT5 extender. The CrystalLink USB 2.0 CAT5 extender is the result of Rose Electronics commitment to providing state-of-the-art solutions for today’s demanding workplace. -
Page 6: Features
2 - 5 VDC power adapter (Transmitter unit and Receiver) Installation and operations manual CD. CAT5 and USB cables are usually ordered separately. If the package contents are not correct, contact Rose Electronics or your reseller, so the problem can be quickly resolved. Rose Electronics web site Visit out web site at www.rose.com for additional information on the... -
Page 7: Crystallink Usb 2.0 Cat5 Model

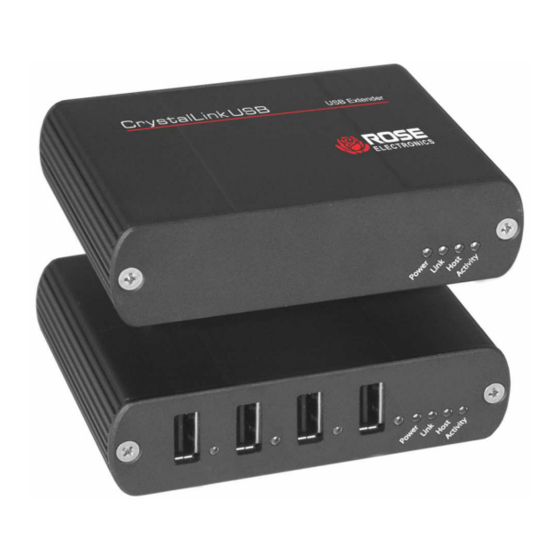

MODEL CrystalLink USB 2.0 CAT5 model Transmitter Indicator LEDs Power Link Host Activity Connectors Power - 24V DC USB - Type B Link - RJ45F Power LED (Blue) On when power is supplied from the computer’s USB port, Off when no power is supplied Host LED (Green) On when installed properly Link LED (Green) -
Page 8: Receiver
Receiver Indicator LEDs Power Link Host Activity Connectors Power - 5V DC USB – (4) Type A Link - RJ45F Power LED (Blue) On when power is supplied from the computer’s USB port, Off when no power is supplied Host LED (Green) On when installed properly Link LED (Green) On when a link between the transmitter and... -
Page 9: Verifying The Installation
INSTALLATION Figure 1 outlines the basic installation of the CrystalLink USB 2.0 CAT5 extender. The installation steps below are a guide to properly install the units and cabling. Transmitter Receiver CAT5 Cable USB 1.1 or 2.0 Figure 1. Installation peripherals Before you install the CrystalView USB 2.0 CAT5 extender, it is recommended that you pre-plan you system layout, consisting of the placement of the computer, the routing of the CAT5 cabling, the location of... -
Page 10: Operating Instructions
Operating Instructions Operating your CrystalLink USB 2.0 extender is no different than having your USB peripherals directly connected to your computer’s USB port. Any compatible USB 1.1 or 2.0 device can be totally controlled and operated normally with no special configuration or commands. USB printers, digital cameras, scanners, or any compatible USB 1.1 or 2.0 device will function properly. -
Page 11: Troubleshooting Guide
If you have any problems or questions concerning the installation, operation or usage of the CrystalLink USB 2.0 CAT5 extender that is not covered in this manual, please contact Rose Electronics for technical support. All LEDs on the transmitter or receiver are off... -
Page 12: Safety
SAFETY Safety The CrystalLink USB 2.0 CAT5 extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalLink USB 2.0 CAT5 extender should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 13 Safety and EMC Regulatory Statements Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
-
Page 14: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 15: Appendix A. General Specifications
Regulatory testing FCC Class B, IC (Class B) , CE (Class B) ESD rating EMC EN-61000-4-2 4kV Contact, 8kV Air Appendix B. Part Numbers and Cables Part Number Description CLK-4U2TP-100M USB 2.0 CAT5 Transmitter & Receiver Kit Installation and Operations Manual...
