Rose electronics CRK-1DFMPDVI/SF Specifications

CrystalView Pro fiber

Features and Benefits

Supports:
DVI and VGA video modes
PS/2 and USB keyboards and mice
Serial and Full stereo audio (optional)
Extend a KVM station from a CPU using fiber cable:
(MultiMode) 62.5-micron cable up to 650 feet
(MultiMode) 50-micron cable up to 1,300 feet
(SingleMode) 9-micron cable up to 33,000 feet
Video resolution up to 1600 x 1200 @ 60Hz
(1920 x 1200 @ 60 Hz option)
Flexible modular architecture
Compatible with Rose Electronics KVM switches
such as ServeView Pro, UltraView Pro, and
UltraMatrix
Compatible with Windows, Windows NT, OS/2, Unix,
Linux, and other operating systems
Uses a microprocessor to emulate the keyboard and
mouse. The keyboard and mouse on the receiver unit
do not have to be connected for the PC to boot; only
the transmitter must be connected to the PC.
Fully automatic KVM sharing
Only two fibers needed
Digital OSD setup menu
Rackmount kits available in:
19", 23", or 24" sizes
Digital fiber KVM extender (DVI/VGA)
Supports DVI and VGA video at resolutions up to
1600 x 1200 (1920 x 1200 @ 60hz option)
Extends keyboard, video, mouse, serial,
and audio signals up to 33,000 feet away
Supports PC or USB (1.1 Compliant)
All models feature dual access
Easily adapted to your system

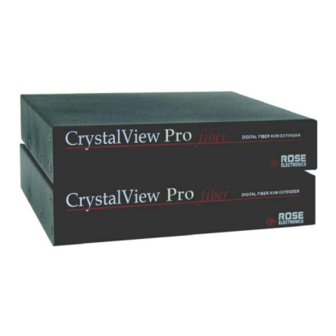

The CrystalView Pro
The CrystalView Pro fiber is the KVM extender of
choice for businesses that need to extend and
operate a computer, server, or KVM switch from a
great distance. The CrystalView Pro fiber makes this
possible by the use of standard fiber optic cable. You
can fully operate and control a computer or server
from as far away as 33,000 feet using SingleMode
(9-micron) fiber cable.
The CrystalView Pro fiber supports both DVI video as
well as analog VGA video. All combinations of DVI
and VGA video cards and monitors are supported.
The OSD features are accessed from the remote unit.
These features make it easy to adjust all the
necessary device parameters, color, brightness,
contrast, and saturation. Using fiber cable, you can
extend the distance between the transmitter and
receiver further than with conventional CAT5 cable.
In addition, fiber cable is unaffected by
electromagnetic interference, keeping your data safe
from interference from lightning and over voltage
transients.
The modular architecture makes the CrystalView Pro
fiber easily adapted to your system. PS/2 and USB
peripherals are supported. CAT5, Multi-Mode and
SingleMode fiber cabling, serial for Touchscreen and
stereo audio, parallel for printers, and 10BaseT
Ethernet are also supported as options.
On-screen display
fiber
Advantage.
™
W W W . R O S E . C O M
