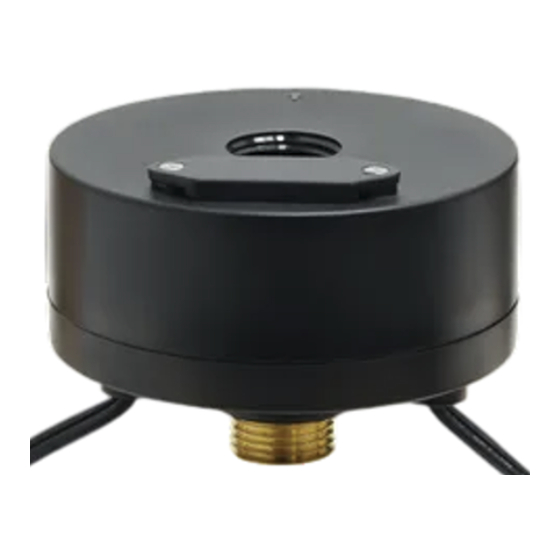

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Inline Microwave Motion Sensor ® ITEM: VAC-MOTION4-PBK 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Inline Microwave Motion Sensor - VAC-MOTION4-PBK ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This microwave motion sensor is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Product Dimensions
PRODUCT DIMENSIONS 3.62” 2.2” 3.62” ADJUST SENSOR SETTINGS REMOVE PLASTIC COVER Using a screwdriver, remove Screw the plastic cover from the switch on top of the sensor. Plastic Cover Switch Microwave Motion Sensor 813.978.3900 • customersupport@amplighting.com • www.amplighting.com... - Page 4 INSTALLATION & MAINTENANCE GUIDE Inline Microwave Motion Sensor - VAC-MOTION4-PBK ® ADJUST SENSOR SETTINGS Switch Range Time Sensor 15ft 5 Mins 10 Mins Microwave 15 Mins 25ft Motion Sensor Parameter Locations: 1. Inside of the plastic cover. 2. On the bottom of the sensor.
- Page 5 CONNECT ONE FIXTURE TO THE SENSOR INSTALL STAKE TO THE SENSOR Thread the stake on to Microwave the bottom center of the Motion Sensor microwave motion sensor. Stake INSTALL LIGHT TO THE SENSOR Pass the supply wire from Fixture the fixture through the microwave motion sensor with the stake.
-
Page 6: Wire Connection
INSTALLATION & MAINTENANCE GUIDE Inline Microwave Motion Sensor - VAC-MOTION4-PBK ® INSERT STAKE Aim the arrow on the Arrow microwave motion sensor to the desired detective area. The maximum detective Microwave 270° range is 270°. Motion Sensor Insert the stake into the... - Page 7 CONNECT MULTIPLE FIXTURES TO THE SENSOR INSTALL STAKE TO THE SENSOR Thread the stake onto Microwave the bottom center of the Motion Sensor microwave motion sensor. Stake FEED OUTPUT WIRE FROM SENSOR TO HUB Fixture Microwave Motion Sensor Fixture Feed Wires in Hub Input Wire (Connect to...
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
