Summary of Contents for AMP Pro Junction Hub

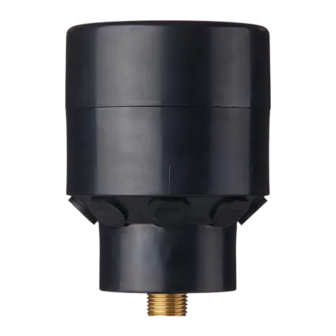

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® Pro Junction Hub (Gen. 3) ® ITEM: VAC-HUB4-PBK-R1 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Pro Junction Hub (Gen. 3) - VAC-HUB4-PBK-R1 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This connection hub is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 INSTALL STAKE Determine the desired location for mounting the Board hub. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, Stake place a board on top of the stake while hammering. NOTE: If the ground is hard Ground and the stake is difficult to...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Pro Junction Hub (Gen. 3) - VAC-HUB4-PBK-R1 ® Connect Wires Supply Wire Insert Open Clamp Hub Base Hub Top Hole for Wire Terminal Block Supply Wires from Supply Wires from Transformer Fixture Pass the supply wires from the transformer through one of the holes underneath the hub base.
