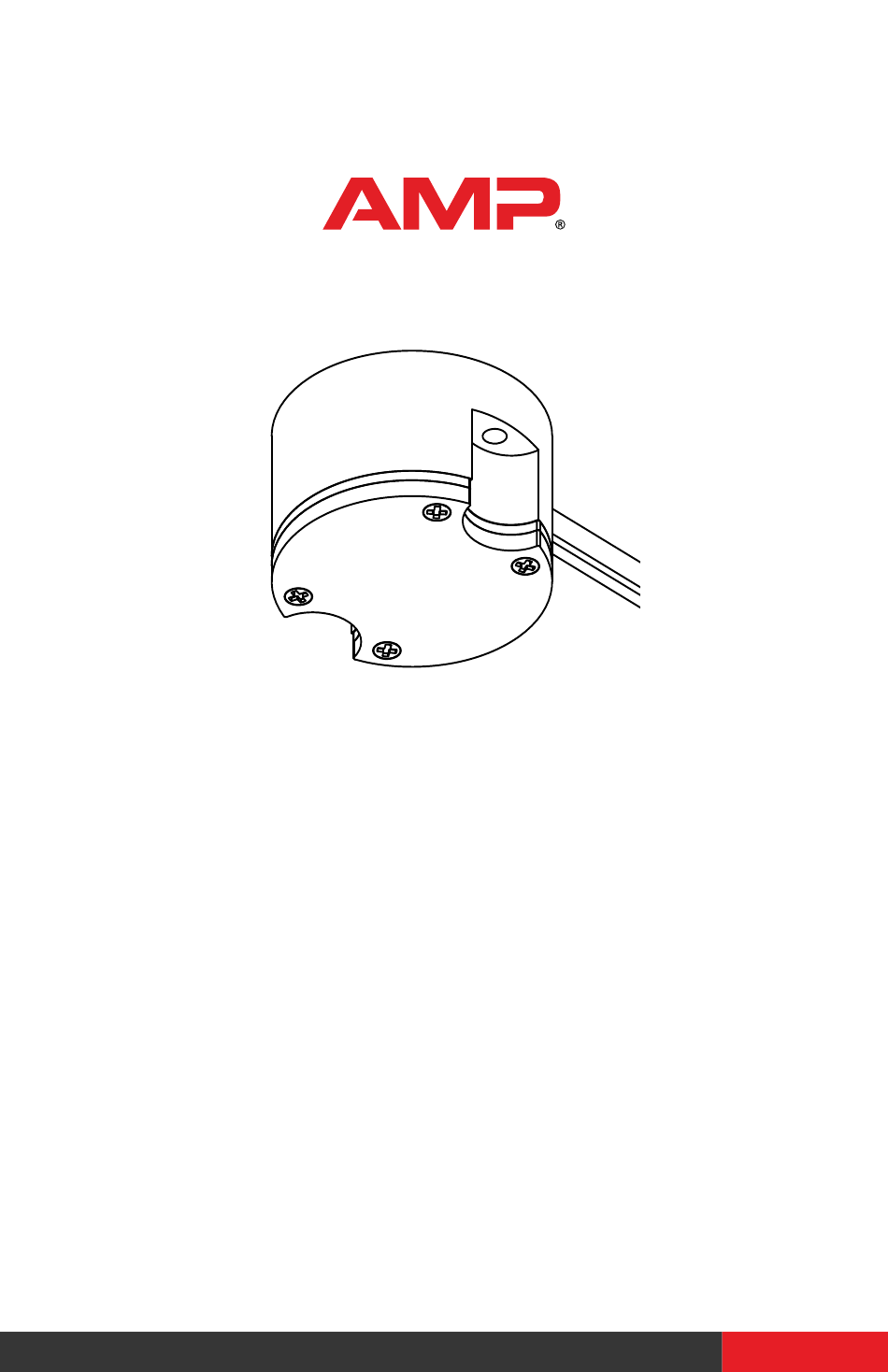

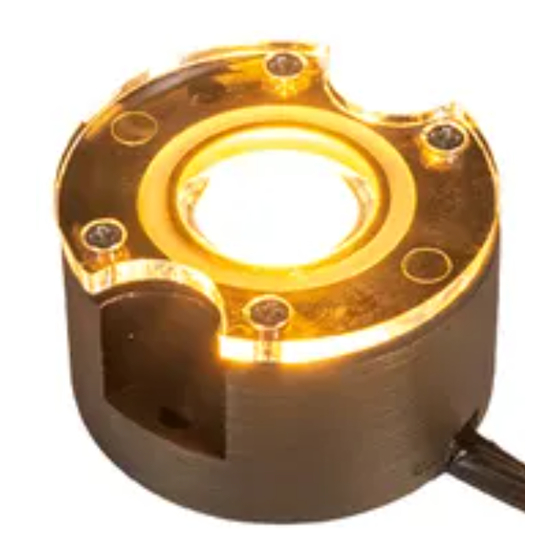

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® G2 PuckPro LED Hardscape Light ® ITEM: AHS-70XX 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE G2 PuckPro LED Hardscape Light - AHS-70XX ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
-
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Puck Light C. (1) Diffused Lens B. (1) Frosted Lens PRODUCT DIMENSIONS 1.5” 0.91” *** NOTE*** FIXTURE MUST BE MOUNTED IN AN INVERTED POSITION - FACING DOWNWARD SURFACE MOUNT Attach the puck light to a flat mounting surface (railing, shelf, counter, bench, etc.). - Page 4 INSTALLATION & MAINTENANCE GUIDE G2 PuckPro LED Hardscape Light - AHS-70XX ® RECESSED MOUNT Supply Cable 1. Using a 1.5” core drill bit, drill one about 1” depth hole in MOUNTING Surface the desired flat surface. 2. Using a 3/8” core drill bit, drill a hole through the D1.5”...
- Page 5 HOW TO REPLACE LENS There are three lens provided with product. Clear lens has been installed on the product as default lens, which can be replaced with frosted lens or diffused lens by using the following steps. Frosted Lens Diffused Lens REMOVE CLEAR LENS FROM PUCK LIGHT By using screwdriver, remove screws on the puck...
- Page 6 INSTALLATION & MAINTENANCE GUIDE G2 PuckPro LED Hardscape Light - AHS-70XX ® 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 7 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
