Ronix RA-1701 Manual

Air hammer kit
Hide thumbs

Advertisement

Table of Contents

AIR HAMMER KIT
RA-1701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RA-1701 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix RA-1701

Summary of Contents for Ronix RA-1701

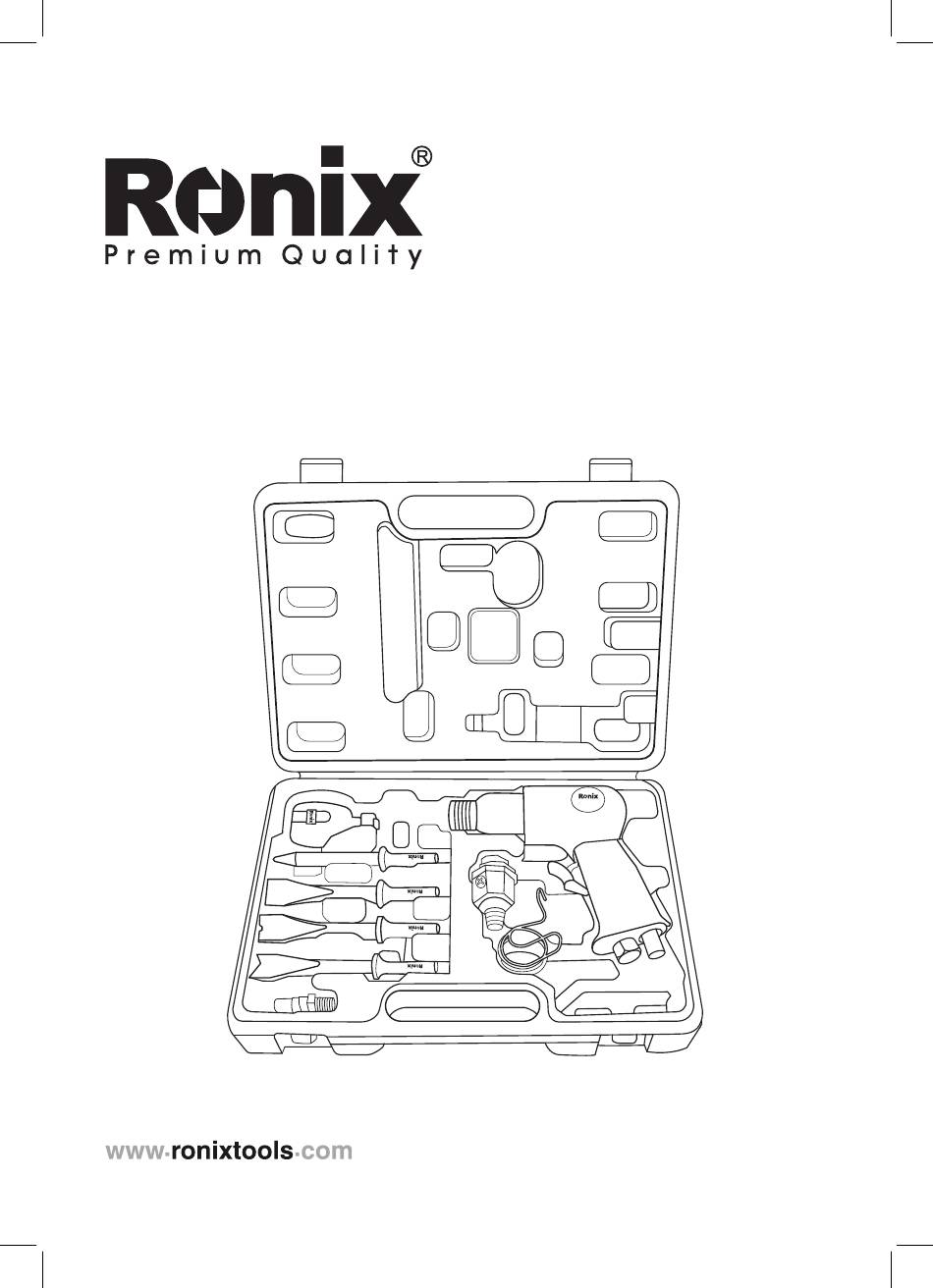

  • Page 1 AIR HAMMER KIT RA-1701...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION RA-1701 Model Power Source Frequency 4500BPM Piston Stroke 43mm Air Pressure 90Psi Air Inlet Size 1/4" Noise Level 96.9db Maximum Bit Holder 10mm Speed 4500BPM Material Aluminum Net Weight Total Weight Supplied in 1pc oil pot 4pcs chisels...

  • Page 4: Part List

    PART LIST Gun Body Cylinder Trigger Air inlet Regulator IMPORTANT SAFETY RULES 1- Always wear safety goggles, face mask or respiratory equipment. 2- Always ensure machine is switched off before connecting to air supply. 3- Disconnect any machine from the air supply before changing chisels and before servicing any type of machine.
  • Page 5 level, as excessive overload can cause the machine casing to split. Also, this creates excessive wear on moving parts and possible failure. 8- In the interests of safety and possible damage to the machine / operator, always ensure that the machine has stopped before putting it down after use.

  • Page 6: Air Supply

    DESCRIPTION Hardened steel barrel and piston for less wear and longer life, lightweight aluminum pistol grip housing, front exhaust, 43mm air hammer set includes the chisels (round & hex), a retainer spring and a quick coupler, ideal for general cutting, chipping and scraping. AIR SUPPLY 1- Ensure air valve (or trigger) is in the “off”...
  • Page 7 In the event that it becomes necessary to store the tool for an extended period of time (overnight, weekend, etc.), it should receive a generous amount of lubrication at that time. The tool should be run for approximately 30 seconds to ensure oil has been evenly distributed throughout the tool.

  • Page 8: Loading And Operation

    LOADING AND OPERATION WARNING! Ensure you read, understand and apply safety instructions before use. 1- Connect the tool to the air hose. 2- Press the trigger to operate the tool. 3- The flow of air may be regulated by adjusting flow valve at the base of the handle.

  • Page 9: Troubleshooting

    safe, dry, childproof location. TROUBLE SHOOTING The following from lists the common operating system with problem and solutions. Please read the form carefully and follow it. Warning: if any the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool.
  • Page 10 Pour air tool lubricating tool into air Tools will not run. - One or more motor inlet. Air flows freely from vanes stuck due to - Operate tool in short bursts or exhaust material build up. forward and/or reverse rotation where applicable.

  • Page 11: Air Hammer

    HAMMER...
