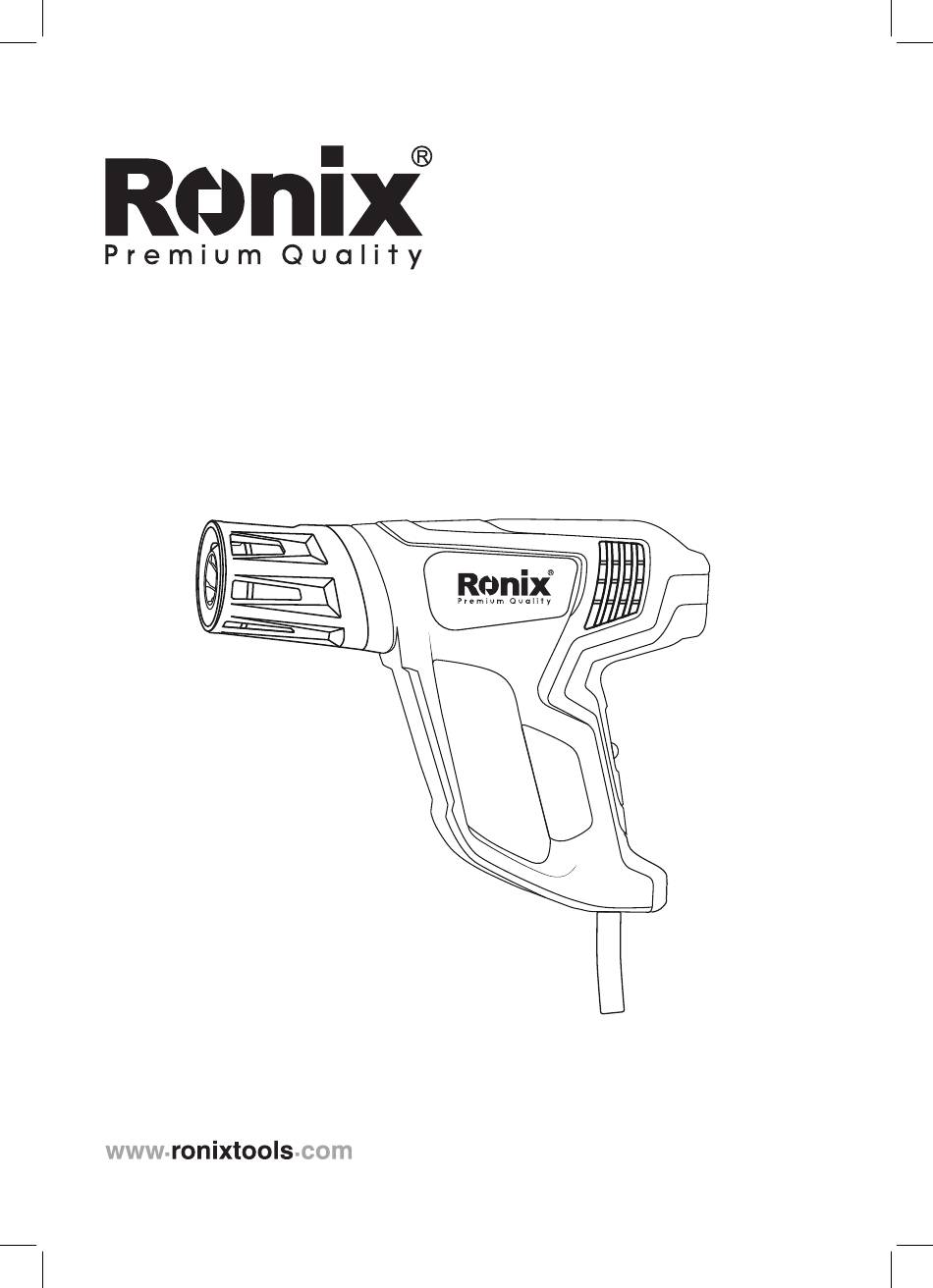

- Page 1 HEAT GUN 2000W 1106...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION 1106 Model Power 2000W Voltage 220-240V Frequency 50-60Hz Working Current Body Material PP+GF30 Operating Temperature 60°-600°C Noise Level 50dB-60dB Motor Type SCRUB Brushless Motor 1:250L/min 60-600°C Air Volume & Temperature 2:500 L/min 100-600°C 3:500L/min 600°C Weight 0.74Kg Heating element type... -
Page 4: Part List
PART LIST Temperature and air flow adjustment Nozzle Handle SAVE THIS MANUAL You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference. GENERAL POWER TOOL SAFETY WARNINGS Read all safety warnings and all instructions. -
Page 5: Electrical Safety
presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY - Power tool plugs must match the outlet. Never modify the plug in any way. - Page 6 equipment such as dust mask, non-skid safety shoes, hand hat, or hearing protection used whenever conditions require will reduce personal injuries. - Avoid accidental starting. Ensure the switch is in the off position before plugging in. - Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
-
Page 7: Operating Procedures
tool. Power tools are dangerous in the hands of untrained users. - Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. - Page 8 heat gun output power of the gun. - To turn the tool on in low wind speed, slide the switch marked To adjust the temperature, use the master temperature control knob. - To turn the tool on in high wind speed, slide the switch marked To adjust the temperature, use the master temperature control knob.
- Page 9 High High Description Purpose Nozzle Protection windows when Glass protection nozzle stripping frames Drying, thawing Fish tail surface nozzle (heat spread over wider area) For decolorization of the seams,edges, corners, cracks and plaster pilasters / Edge Concentrating nozzle banding in all woodcarving industry and MDF (for PVC tapes and melamine) Cone nozzle Plastic welding and soldering...
- Page 10 HEAT GUN 2000W...
- Page 12 HEAT GUN 2000W 1106...
