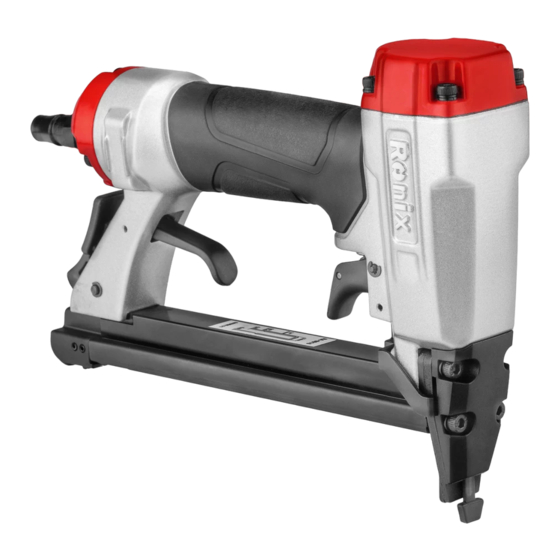

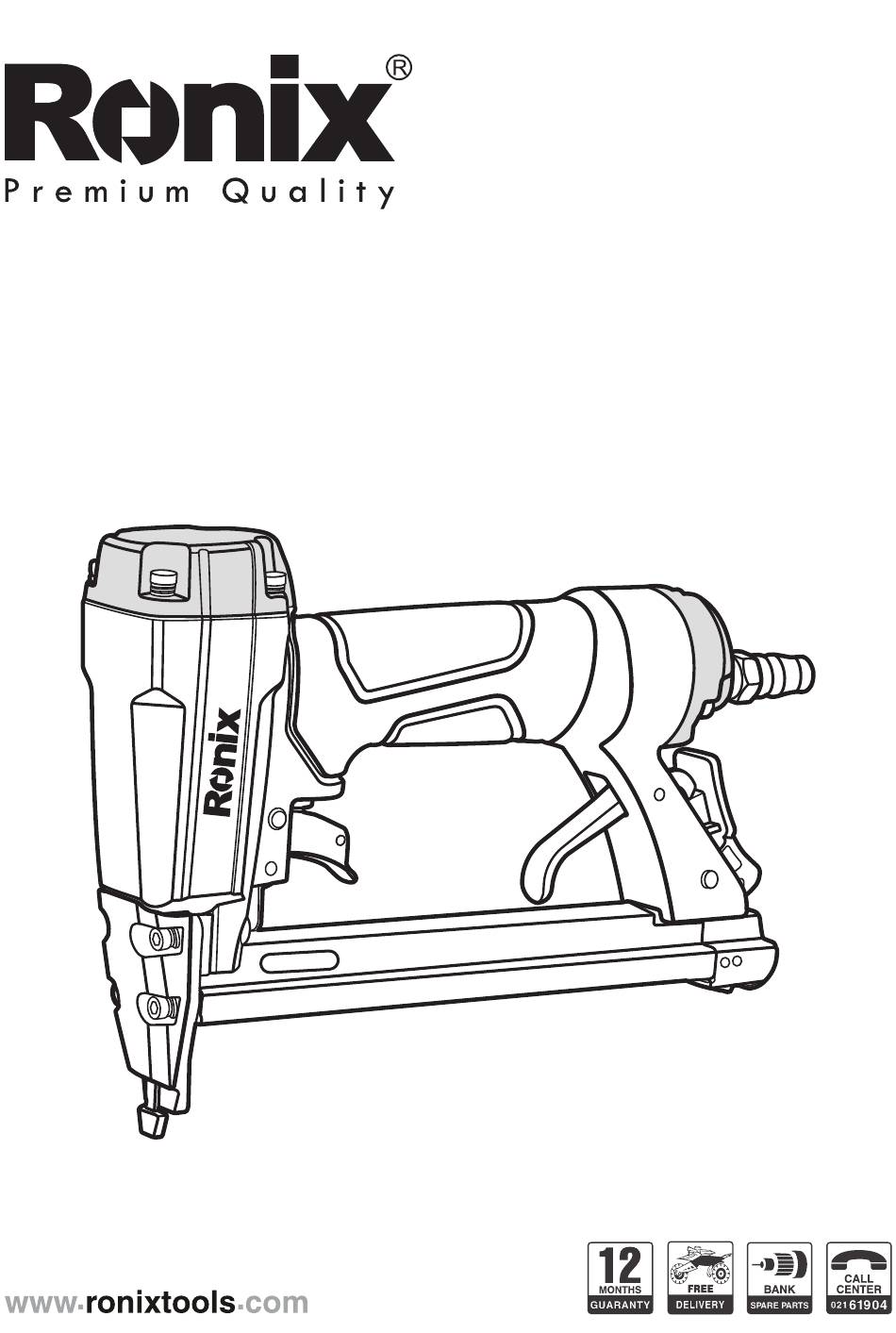

- Page 1 21 GAUGE 12.9MM CROWN STAPLER RA-8016...
-
Page 2: Name Of Parts
SPECIFICATIONS OF NAILER Model RA-8016 9-1/2 x "6-2/5 x"2" Dimensions (LxHxW) 240mmx162mmx51mm Weight 0.95kg Operating Pressure 60-100psi(4-7kgf/cm 140 Staples Nail Capacity Nail Spec 0.95x0.66mm,crown: 12.9 mm NAME OF PARTS Grip Air plug Body Trigger Click lever Driver Guide Magazine Magazine... -
Page 3: Fastener Specifications
FASTENER SPECIFICATIONS SAFETY INSTRUCTIONS DANGER! 1) Be sure to put goggles on before operation Since a fastener fired wrongly through careless handling can spring out or you are always exposed to danger that can be caused by dust and extraneous substances dispersed by exhausted air, you must always wear goggles for operation. - Page 4 3) Never use any power source but compressed air. As this tool is designed and manufactured to operate using air pressure that is generated by an air compressor authorized by a safety certification authority, you cannot use any kind of gas combustible gases such as oxygen and acetylene except this.
- Page 5 WARNING! 8) Connect a proper connector to this tool correctly. The connector for this tool should never have pressure kept when air supply is cut off. If an improper part is applied, then the tool can operate due to pressure left within it even after the airline is disconnected possibly resulting in injury.
- Page 6 The resultant shock can cause damage to main parts or malfunction, possibly resulting in injury. 15) Never drive a fastener on hard or thin objects, an edge of the target surface or a fastener crown already driven. Otherwise, the fastener fails to be driven in but springs out, thus inflicting an injury on a worker or those around him or her.
-
Page 7: Instructions For Operation
INSTRUCTIONS FOR OPERATION BE SURE TO READ THE SAFETY INSTRUCTION BEFORE USING THIS TOOL PREPARATIONS 1) Be sure to put on personal protective equipment for example goggles, earplugs, safety cap before using this tool. 2) Be sure to use an air compressor authorized by the safety certifi- cation author ity as a pressure source for operating this tool within the optimum range of pressure (58~100psi). -
Page 8: Maintenance And Inspection
3) Keep pushing the magazine until it is fixed in the click lever. UNLOADING NAILS 1) Pull the magazine backward with the click lever pressed. 2) Unload staples from the bottom of the magazine. 3) Keep pushing the magazine until it is fixed in the click lever. MAINTENANCE AND INSPECTION Be sure to read the safety instruction before inspecting or maintaining this tool. - Page 9 CLEARING A JAM If jam occurs during the nailing process, clear it according to the following procedure. 1) Disconnect the air line from the tool. 2) Unload nails left in the magazine. 3) Open the guide cover B. 4) Use a long nose to remove the sta- ple caught in.
- Page 10 - It is important to note that users or distributors who want to have this tool repaired must get A/S from A/S personnel trained in RONIX SERVICE. - Use only parts supplied or authorized by RONIX SERVICE for repair. USER MANUAL...
-
Page 11: Operator Troubleshooting
Drain air line filter daily Prevent accumulation of Open manual petcock. moisture and dirt. Keep lubricator filled. Keep the tool lubricated Fill with RONIX SERVICE pneumatic tool lubricant. Clean magazine and Prevent a jam & Dry fire. Blow clean daily. feeder mechanism.
