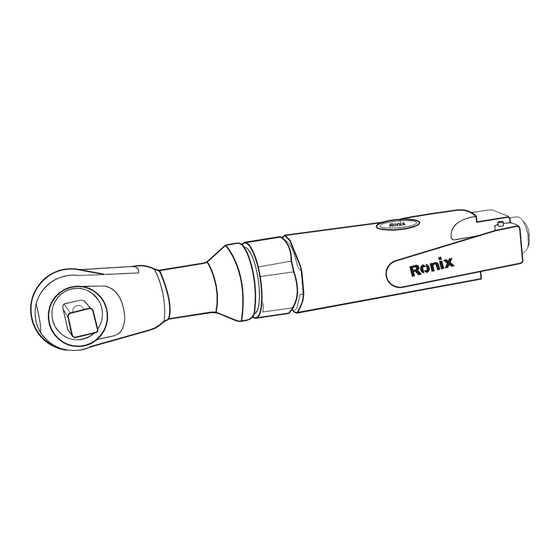

- Page 1 1/2 AIR RATCHET WRENCH RA-1501 www.ronix.ir...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION RA-1501 Model Driver Size 1/2 inch Length 254mm Std Bolt Size 13mm No-load RPM 160RPM Max Torque 68Nm Working Pressure 90Psi/6.3Bar Weight 1.1Kg 1pc Oil bottle,1pc Include connector USER MANUAL... -
Page 4: Part List
PART LIST Handle Air inlet Drive Trigger IMPORTANT: Upon receipt of the product, read and follow all safety rules, operating instructions before first use it. And retain this manual for future reference. IMPORTANT SAFETY RULES 1- Always wear safety goggles or glasses. 2- Always ensure machine is switched off before connecting to air supply. -
Page 5: Air Supply
machine casing to split. Also this creates excessive wear on moving parts and possible failure. 9- In the interests of safety and possible damage to the machine/ operator, always ensure that the machine has stopped before putting it down after use. 10- Always ensure that the workpiece is firmly secured leaving both hands free to control the machine. - Page 6 5- Clean air inlet filter weekly. 6- Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be 3/8” I.D. and fittings must have the same inside dimensions. 7- Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
- Page 7 operated tools should be lubricated at least once a day or after 2 hours work with 2 to 6 drops of oil, depending on the work environment, directly through the male fitting in the tool housing. Fig.4 Quick Quick Connector Connector Lubricator Filter...
-
Page 8: Maintenance
will shorten its life. MAINTENANCE WARNING! Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair damaged parts.Use genuine parts only. Non-authorized parts may be dangerous. 1- Lubricate the air wrench daily with a few drops of air tool oil dripped into the air inlet 2- Check and top up the gearbox by removing grub screw located under the impact head... - Page 9 WARNING! If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified person or an authorized service center can perform repairs or replacement of tool. Disconnect tool from air supply before attempting repair or adjustment. When replacing O-rings or Cylinder, lubricate with air tool oil before assembly.
- Page 10 - Pour air tool lubricating tool into air inlet. - Operate tool in short bursts Tools will not run. of forward and/or reverse Air flows freely from - One or more motor rotation where applicable. exhaust vanes stuck due to - Tap motor housing gently material build up.
