Summary of Contents for Ronix 2410

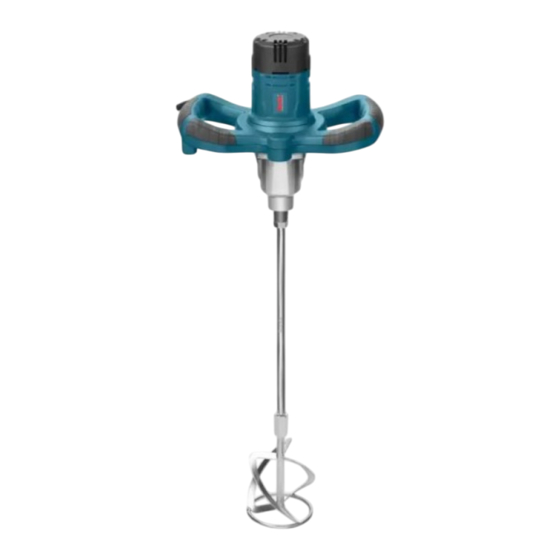

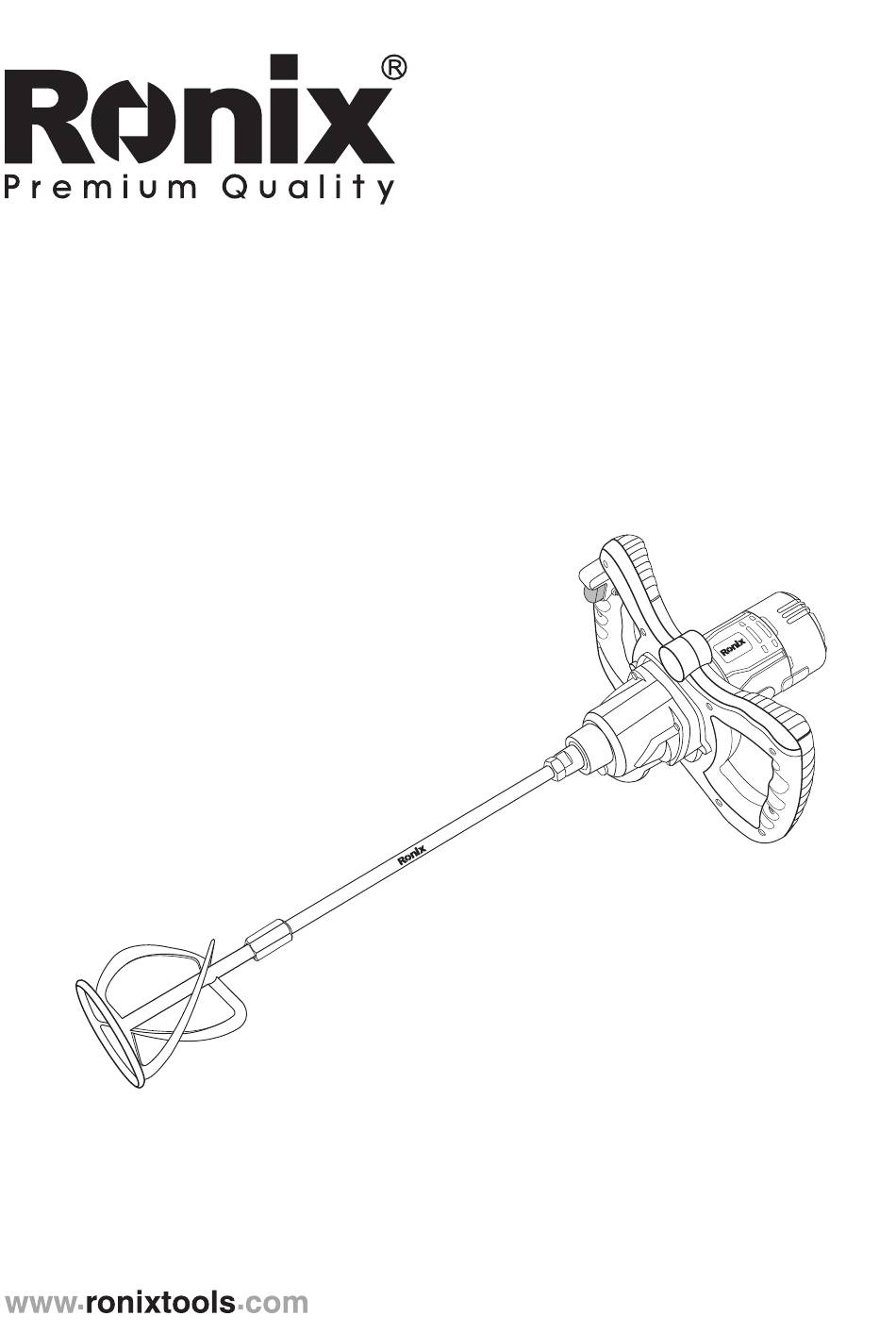

- Page 1 2 SPEED ELECTRIC MIXER 2410...
-
Page 2: Specifications
50-60Hz Paddle Diameter 120mm Paddle Single Tool Connection Size Supplied in Ronix color box No Loads of Speed "I : 200-500 RPM , II : 280-700 RPM" 2Wrenches , 1 Paddle , a Pair of Includes carbon brushes PARTS LIST... -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS NOTE In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference. This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock. -
Page 4: Personal Safety
- Power tool plugs must match the outlet. Never modify the plug in any way. Don’t use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Avoid body contact with earthed or grounded surfaces such as pipe, radiators, ranges and refrigerators. - Page 5 before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. - Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Page 6 accidents are caused by poorly maintained power tools. - Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. - Use the power tool, accessories and tool bits etc. in accordance with the instruction, taking into account the working conditions and the work to be performed.
-
Page 7: Intended Use
the cable to heat or moisture. - DO NOT use damaged cable. - Disconnect the plug for mainteance , change the paddle and when do not using the machine - DO NOT mix the material which is flammable. - DO NOT use chemical solvents for cleaning the tools cause it will increase the risk of explosion. -
Page 8: Power On/Off
fitting, K1-K10 mixing tools etc. is also available for special use, they are Ml4 screw connection. K1 K2 K3 K9 K10 - Take out the two parts of the mixing tools from the carton. - Fitting the two parts. - Use the wrench until it is tightened. SETTING UP POWER ON/OFF Push down the switch rest-lock knob first and then push down the start... -
Page 9: Speed Setting
SPEED SETTING ELECTRONIC SPEED REGULATOR Turn on the power switch first, then turn the regulator switch which located in the left handle to set your wanted speed. MECHANICAL SPEED REGULATOR When the machine is under STOP condition, please turn the Knob switch to change the speed Gear I :low speed (200-500 rpm) Gear II :high speed(280-700 rpm) - Page 10 This may result in Over-Load, which can damage the motor of the drilling machine. When the drilling machine becomes too hot, allow it to run for two minutes without a load and then interrupt working for a short time. Clean the drilling machine with a clean cloth and a brush. Ensure that the Ventilation slits are not blocked.
