Summary of Contents for Ronix RA-2702

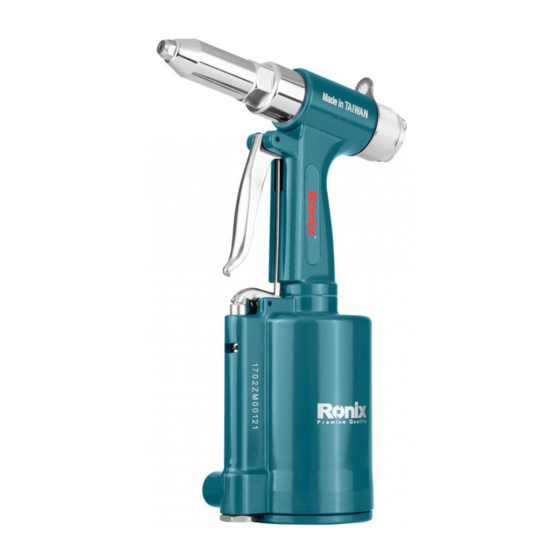

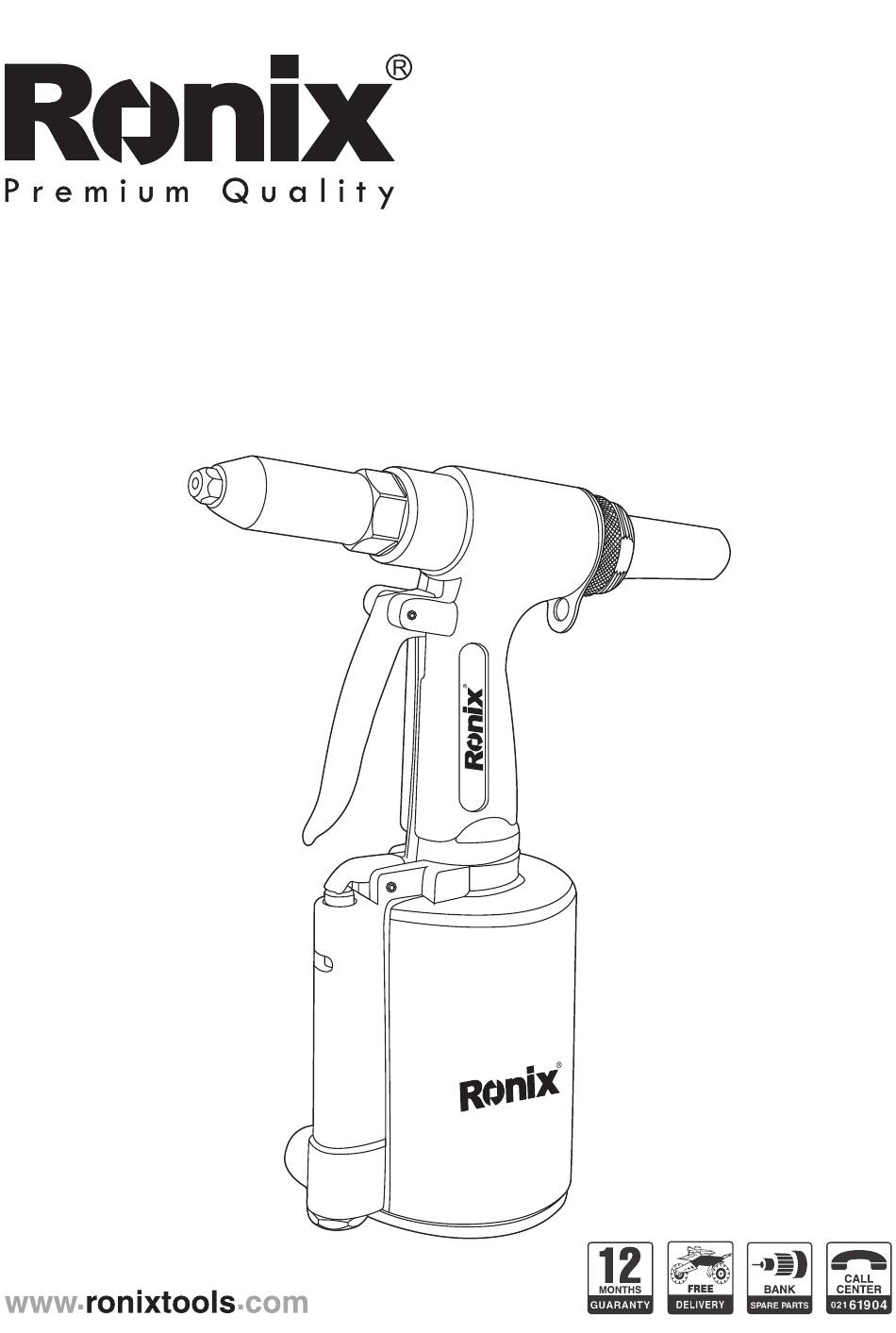

- Page 1 AIR RIVETER RA-2702...
- Page 2 SPECIFICATIONS Model 2702 TractionPower 1045 Kg-f Stroke Lenght 16mm Capacity 4.8mm, 4.0m, 3.2mm, 2.4mm Air Pressure 5.5 ~ 6 bar (79-87 PSI) Avg. Air Consumption 1.48 Liter/Stroke Air Inlet " PT (NPT) 1 / 4 Weight 1.5 Kg 2 pcs Spare Jaw, Jaw case, Jaw pusher, Jaw pusher spring, Oil bottle, Accessories 2 pcs Service spanner,...
- Page 3 Read this manual carefully before installing, operating, servicing or repairing. WORKING ENVIRONMENT 1) U sing these tools in any potentially explosive environment is strictly prohibited 2) i t is always recommended that these types of tools mUst be operated when standing on a solid or firm location 3) a lways Use these tools in a well ventilated area 4) s...
- Page 4 IDEAL SYSTEM CONNECTION Filter, Regulator&Lubricator Oil Filter Air Tool Shut-Off Cock Water Drain Shut-Off Cock Pressure Check Point Refrigerated Air Dryer Air Tank Air Compressor WARNING! 1) This tool should only be used as a hand operated tool. It is powered by compressed air and is not insulated against electric shock.
- Page 5 operative. 6) Make certain to stand on a solid or firm location and keep body in well-balanced position while operating this tool. 7) Always turn off the air supply and disconnect the air hose before changing rivet nose or making adjustments on this tool. 8) Release the throttle lever to avoid danger if there is a failure of energy supply or when connecting or disconnecting the air hose.
