Summary of Contents for Ronix 3401

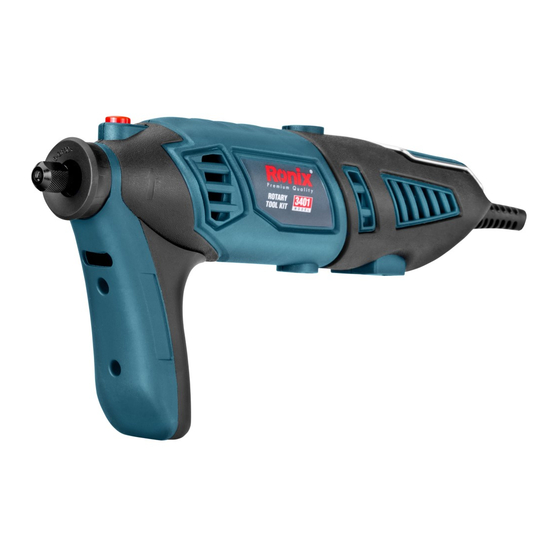

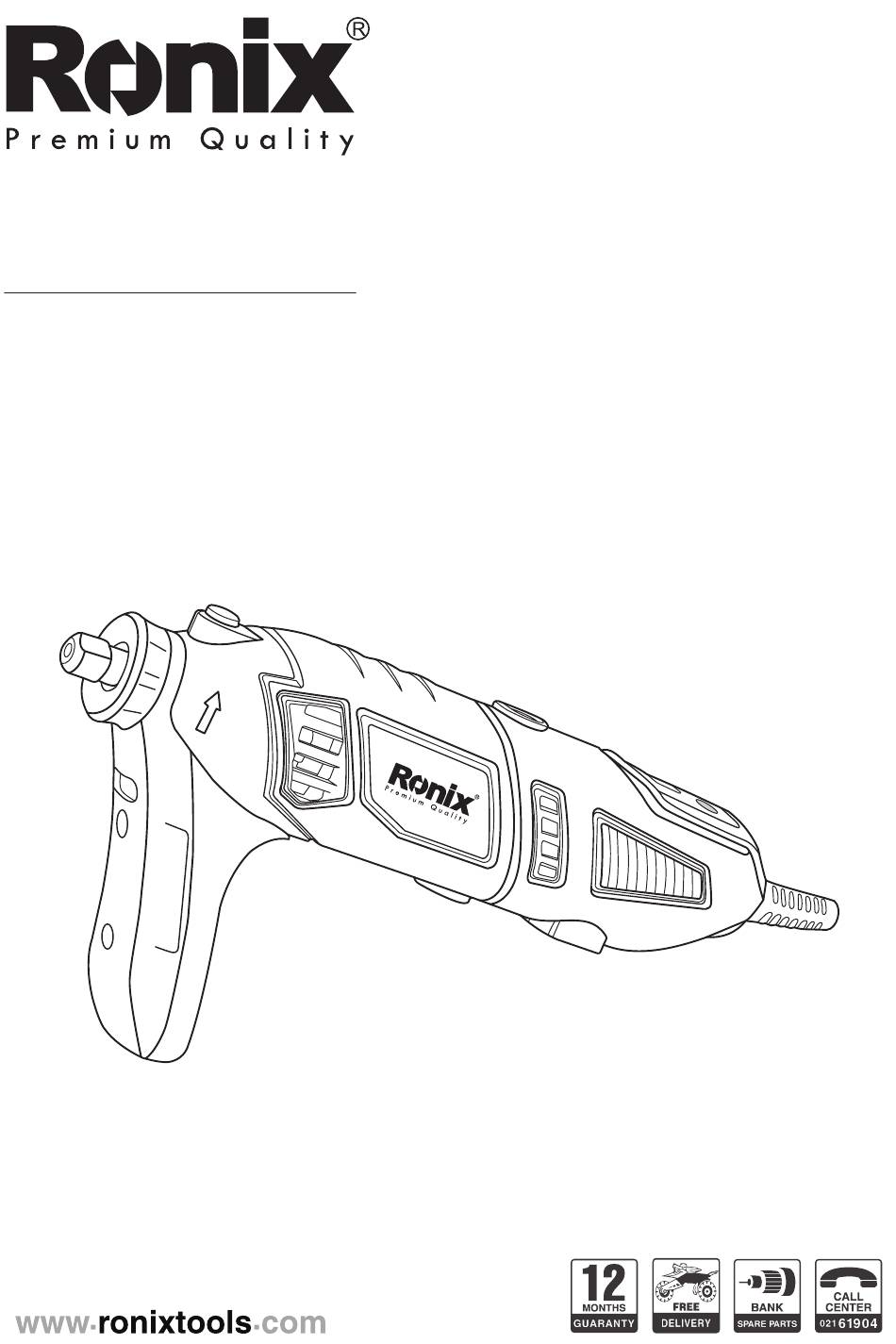

- Page 1 INSTRUCTION MANUAL 3401 Rotary Tool Kit...
-
Page 3: Specifications
USER MANUAL SPECIFICATIONS Rated voltage 220V-50 Hz Capacity 170 w Idle revolution 8000-35000 rpm Protection class Tool holder 3.2 mm Noise output level (LWA) 82 dB(A) Noise pressure level (LWA) 71 dB(A) Length of bending shaft Approximately 1050 mm PARTS LIST... -
Page 4: Intended Use
DIE GRINDER BEFORE YOU BEGIN... INTENDED USE When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction. The device is designed for use as a grinder, sandpaper sander, wire brush, polisher and abrasive cutting tool in the specified dimensional and power range. -
Page 5: Safety Instructions
USER MANUAL CAUTION: Possible risk of injury Dangerous situation that may lead to injuries NOTICE: Risk of damage to the device Situation that may lead to property damage NOTE: Information to help you reach a better understanding of the processes involved. These symbols identify the required personal protection equipment. -
Page 6: Electrical Safety
DIE GRINDER - Store all safety notes and safety instructions for future reference. The term power tool in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAFETY AT WORK - Keep work area clean and well lit. -
Page 7: Personal Safety
USER MANUAL - When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. - If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. - Page 8 DIE GRINDER - If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. POWER TOOL USE AND CARE - Do not force the power tool. Use the correct power tool for your application.
- Page 9 USER MANUAL the work to be performed. Use of the power tool for operations different from intended could result in hazardous situation. SERVICE - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
- Page 10 DIE GRINDER must fit precisely to the sanding spindle of your power tool. Tools that do not fit precisely to the sanding spindle of the power tool will rotate unevenly, vibrate heavily and may cause loss of control over the device. - Do not use damaged tools.
- Page 11 USER MANUAL - Keep the power cable away from rotating tools. If you lose control over the power tool, the power cable may be cut or caught and your hand or arm may be pulled into the rotating tool. - Never set the power tool down before the tool has come to a completed standstill.
- Page 12 DIE GRINDER rotation of the disc at the blocked point. This may also cause grinding discs to break. A kickback is a consequence of incorrect or faulty use of the power tool. It can be pre-vented by the use of suitable measures, as described below: - Hold the power tool securely with both hands and position your body and arms in such a way that you are able to absorb...
- Page 13 USER MANUAL SPECIAL SAFETY NOTES REGARDING GRINDING AND ABRASIVE CUTTING - Only use grinding tools permitted for use with your power tool and the protective hood designed for use with these tools. Grinding tools that have not be designed for use with the power tool cannot be sufficiently shielded and are thus unsafe.
- Page 14 DIE GRINDER operate the device in such a way that the cutting disc in the work piece is moved away from you, in the event of kickback, the power tool and the rotating disc may be thrown towards you. - If the cutting disc is jammed or you need to interrupt your work, switch the power tool off, and hold it motionless until the disc has come to a standstill.
-
Page 15: Additional Safety Notes
USER MANUAL SPECIAL SAFETY NOTES REGARDING POLISHING - Do not permit parts of the polishing hood to be loose, in particular, fixing cords. Conceal or shorten fixing cords. Loose, rotating fixing cords may catch your fingers or get trapped in the work piece. SPECIAL SAFETY NOTES REGARDING WORKING WITH WIRE BRUSHES - Please note that wire brushes will lose wire bristles during... - Page 16 DIE GRINDER - Secure the work piece. Use tensioning equipment or a vice to secure the work piece to help prevent kickback or uncontrolled flying of the work piece (e.g. when getting jammed in the work piece.) - Keep your workplace clean. Mixed contamination by various materials is particularly dangerous.
- Page 17 USER MANUAL Inform yourself before you start work about the regulations that apply at the site of the device. - Remember that moving parts may also be located behind ventilation and venting slots. - Symbols appearing on your product may not be removed or covered.
-
Page 18: Remaining Risks
DIE GRINDER - Avoid working at low temperatures. - When it is cold, make sure your body and your hands, in particular, are kept warm. - Take regular breaks and move your hands at the same time to promote circulation. REMAINING RISKS There will still be residual risks even when the device is used according to the instructions and under observation of all of the... -
Page 19: Operation
USER MANUAL - Bending shaft - Installation wrench - Tool stand - Additional handle - Depth stop - Collet chucks (various diameters) - Coupling nut - Locking pin for the bending shaft - Various sanding/grinding bodies - Polishing and cutting discs - Drill - Sanding/grinding bits NOTE:... - Page 20 DIE GRINDER INSERTING A TOOL CAUTION: Risk of injury Only use tools approved by the manufacturer. Never use damaged tools. Always check tools for tears and other dam-age before mounting. Only use tools that are appropriate for the material you are processing.
- Page 21 USER MANUAL USING THE BENDING SHAFT NOTICE: Risk of damage to the unit Do not fold the bending shaft or bend too tightly. 1) Fit a collet chuck with 02 mm in the tool holder. 2) Screw the coupling nut into place. 3) Fit the shaft of the bending shaft into the collet chuck.
-
Page 22: Inserting A Tool
DIE GRINDER INSERTING A TOOL 1) Fit the appropriate collect chuck for the tool into the tool holder. 2) Screw the coupling nut into place. 3) Fit the required tool into the collet chuck. 4) Fix the bending shaft with the locking pin. 5) Tighten the coupling nut with the sup-plied mounting wrench and remove the locking pin. - Page 23 USER MANUAL 1) Switching on: push the On/Off switch (3) to position (I). Switching off: push the On/Off switch (3) to position (0). 2) Regulating the revolutions: set the revolution regulator (2) to the required level. NOTES ON USING DEVICE WARNING! Risk of injury! Don’t tilt work piece and tool.
-
Page 24: Cleaning Overview
DIE GRINDER NOTE: Excessive pressure does not result in greater performance instead it cause greater wear on the tools. - Always hold work pieces securely or clamp into place. - Do not tilt work piece and tool. - When milling or engraving hold the device as if it were a writing implement. -
Page 25: Troubleshooting
In many cases, small defects can lead to a malfunction. You will usually be able to deal with yourself. Please refer to the table below before contacting your local Ronix store. This may save you a lot of effort and quite often money. -
Page 26: Disposal Of The Packaging
DIE GRINDER Through separate disposal you send old equipment Tor recycling or Tor other forms of reuse. You will thus help to avoid in some cases that damaging material gets into the environment. DISPOSAL OF THE PACKAGING - The packaging consists of cardboard and correspondingly marked plastics that can be recycled.
