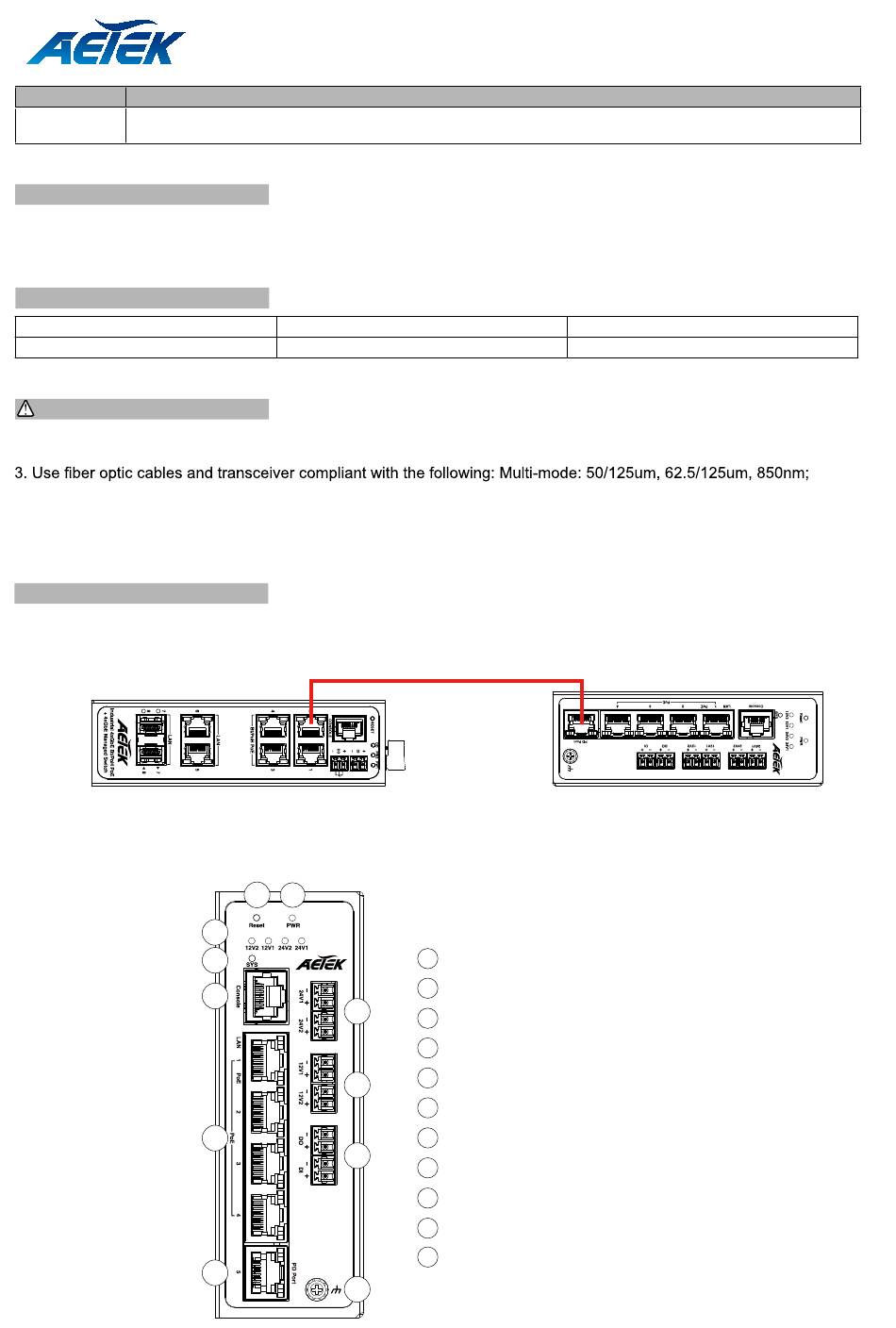

AETEK L2 PRO Quick Installation Manual

Model Description
D62-040-30 4xGbE 30W PoE + 1xGbE bt PoE PD RJ45 + 2x24VDC output + 2x12VDC output Managed Switch
INTRODUCTION
The D62-040-30 is a 4 port 10/100/1000BaseT at PoE switch capable of feeding 15.4/30W (54Vmax. per port)
power to Power over Ethernet (PoE) devices.
PACKAGE CONTENTS
* 1x PoE switch
* 1x DB9F-RJ45 console cable
IMPORTANT :
1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.
2. Make sure the ventilation openings on the converter are not blocked.
Single-mode): 9/125um ,1310nm.
4. bt PoE PD input.
5. Digital output (relay): ON/OFF, support 24VDC/1A. Digital input: level 0(Low), level 1(High).
CONNECTION
L2 PRO Gigabit PoE Switch
Quick Installation Guide
* 1x Quick Installation Guide
* 1x DIN rail bracket
D60-044-91
D62-040-30
F G
E
D
C
H
I
B
J
A
K
90W bt PoE
A
10/100/1000 bt PoE PD RJ45 port
B 10/100/1000 PoE RJ45 ports
C Console port
SYS LED
D
12V2 / 12V1 / 24V2 / 24V1 LED
E
Reset button
F
Power LED
G
24VDC output ports
H
12VDC output ports
I
DI / DO ports
J
GND
K
P/N: 5019039600
* 6 x 2-pin terminal block
D62-040-30
