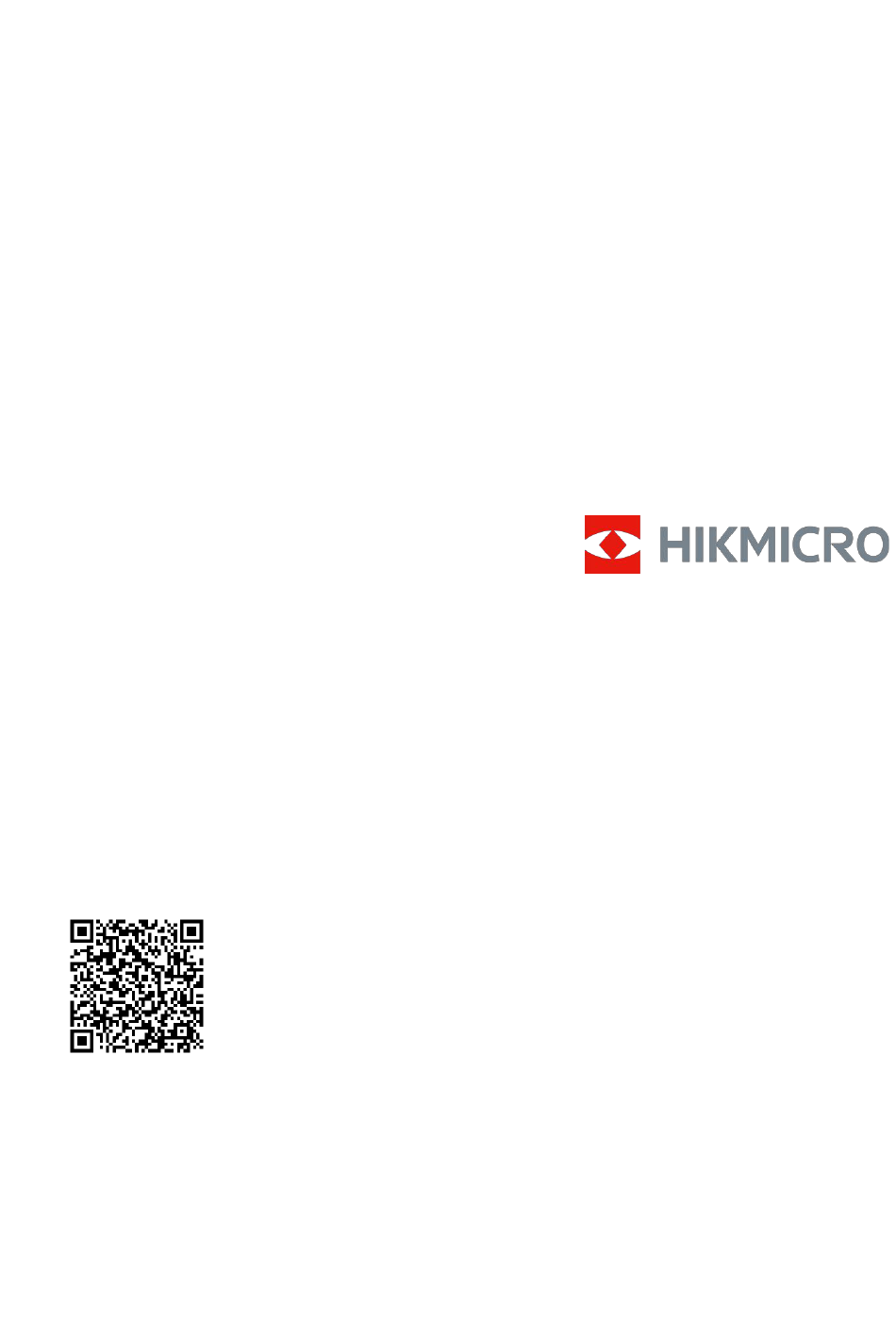

- Page 1 Handheld Screen For Handheld Monocular User Manual V5.5.74 202308 Contact Us...
-
Page 2: Table Of Contents
Handheld Screen User Manual Table of Contents Chapter 1 Overview ........................1 1.1 Brief Description ........................1 1.2 Appearance .......................... 1 Chapter 2 Preparation ......................4 2.1 Install Battery ........................4 2.1.1 Battery Instruction ....................4 2.1.2 Battery Installation ....................4 2.2 Power On/Off ........................ - Page 3 Handheld Screen User Manual Safety Instruction ........................14 Legal Information ........................17 Regulatory Information ......................19...
-
Page 4: Chapter 1 Overview
Handheld Screen User Manual Chapter 1 Overview 1.1 Brief Description The handheld screen integrates functions of extended display, parameter configuration, power supply, and so on. It can directly provide power for handheld monocular and extend display to show clear image and improve search efficiency. 1.2 Appearance The appearance may differ from the actual product. - Page 5 Handheld Screen User Manual Figure 1-1 Appearance Table 1-1 Components Description Function Tripod Screw To install the handheld monocular. Tripod To fix the handheld monocular. Adapter To connect the handheld monocular for image view or Type-C Cable connect to PC for device upgrade. Battery For holding the battery.
- Page 6 Handheld Screen User Manual Table 1-2 Button Description Button Description Function ● Press: Standby mode/Wake up device. Power ● Hold: Power on/off. Non-Menu Mode: Hold to turn on/off LED light. Menu Mode: Press to move up. Non-Menu Mode: Press to enter the menu. Menu Mode: Menu ●...
-
Page 7: Chapter 2 Preparation
Handheld Screen User Manual Chapter 2 Preparation 2.1 Install Battery 2.1.1 Battery Instruction ● The external rechargeable battery type is 18650, and the battery size should be 19 mm × 70 mm. The rated voltage and capacity are 3.6 VDC/3200 mAh. ●... -
Page 8: Connect Handheld Monocular
Handheld Screen User Manual Note ● Power-off countdown will appear when you power off the device. You can press any button or touch the screen to interrupt the countdown and cancel the power-off. ● Automatic low battery power-off cannot be canceled. 2.3 Connect Handheld Monocular 2.3.1 Connection Setting The device can be connected to the handheld monocular with Type-C cable to view the... -
Page 9: Install Handheld Monocular
Handheld Screen User Manual 2.3.2 Install Handheld Monocular Figure 2-2 Install Handheld Monocular Steps 1. Lift the type-C interface cover of handheld monocular, and connect the handheld monocular with the type-C cable. 2. Align the tripod mount interface of the handheld monocular to the tripod screw of device, and rotate the tripod adapter counterclockwise until it is tight to fix the handheld monocular. -
Page 10: Menu
Handheld Screen User Manual Figure 2-3 Live View Interface (Without Connecting Handheld Monocular) 2.4.2 Menu When device is not connected to a handheld monocular, in the live view interface, press to show the menu. You can adjust brightness, set USB connection or language, turn on reverse charging, restore device, and view the device version. -
Page 11: Upgrade Device
Handheld Screen User Manual Figure 2-5 Device Menu 2.5 Upgrade Device Before You Start http://www.hikmicrotech.com Please get the upgrade package from the official website Steps 1. Press to show the menu, and select 2. Press to enter the configuration interface, and press select USB Flash Drive. - Page 12 Handheld Screen User Manual 5. Open the detected disk, copy the upgrade file and paste it to the root directory of the device. 6. Disconnect the device from your PC. 7. Reboot the device. Result The device upgrades automatically. The upgrading process will be displayed in the interface.
-
Page 13: Chapter 3 Device Settings
Handheld Screen User Manual Chapter 3 Device Settings 3.1 Set Aspect Ratio You can set the aspect ratio to according to personal preference. Before You Start The device has been connected to the handheld monocular. Steps 1. Press to show the menu. 2. -
Page 14: Set Language
Handheld Screen User Manual Steps 1. Press to show the menu. 2. Press to select 3. Press to enable the reverse charging. 4. Hold to save and exit. Note ● Reverse charging is not supported when device battery is low. ●... - Page 15 Handheld Screen User Manual 3. Hold to save and exit.
-
Page 16: Chapter 4 Frequently Asked Questions
Handheld Screen User Manual Chapter 4 Frequently Asked Questions 4.1 Why is the power indicator off? Check whether the device is off-battery. 4.2 Why the PC cannot identify the device? ● Check whether the device is connected to your PC with supplied type-C cable. ●... -
Page 17: Safety Instruction
Handheld Screen User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations Use of the product must be in strict compliance with the local electrical safety regulations. Symbol Conventions The symbols that may be found in this document are defined as follows. -
Page 18: Maintenance
Handheld Screen User Manual ● For long-term storage of the battery, make sure it is fully charged every half year to ensure the battery quality. Otherwise, damage may occur. ● CAUTION: Risk of explosion if the battery is replaced by an incorrect type. ●... - Page 19 Handheld Screen User Manual Manufacture Address Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict, Binjiang District, Hangzhou, Zhejiang 310052, China Hangzhou Microimage Software Co., Ltd.
-
Page 20: Legal Information
The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the HIKMICRO website (www.hikmicrotech.com). - Page 21 Handheld Screen User Manual WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ILLEGAL HUNTING ANIMALS, INVASION OF PRIVACY OR ANY OTHER PURPOSE WHICH IS ILLEGAL OR DETRIMENTAL TO THE PUBLIC INTEREST. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE...
-
Page 22: Regulatory Information
Handheld Screen User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. EU Compliance Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD) and Directive 2011/65/EU (RoHS). - Page 23 Handheld Screen User Manual see: www.recyclethis.info. A급 기기: 이 기기는 업무용(A급) 전자파적합기기로써 판매자 또는 사용자는 이 점을 주의하시기바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.
- Page 24 Web: www.hikmicrotech.com E-mail: support@hikmicrotech.com UD34608B...
