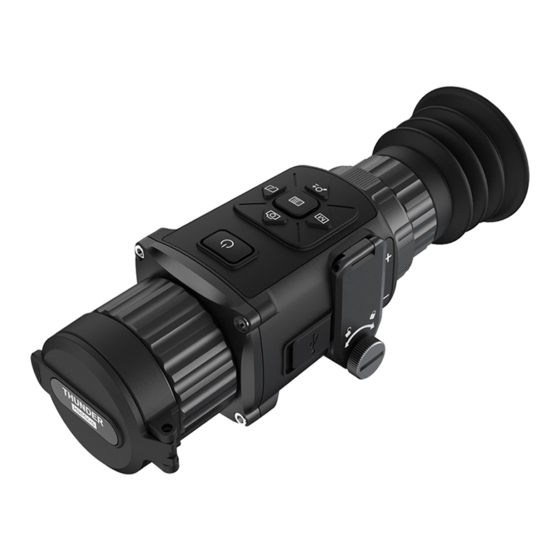

Hikmicro THUNDER User Manual

Thermal image scope
Hide thumbs
Table of Contents

Advertisement

Quick Links

Thermal Image Scope
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hikmicro THUNDER

Summary of Contents for Hikmicro THUNDER

  • Page 1 Thermal Image Scope User Manual...

  • Page 2: Legal Information

    INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Thermal Image Scope User Manual RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

  • Page 4: Regulatory Information

    Thermal Image Scope User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 Thermal Image Scope User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).

  • Page 6: Symbol Conventions

    Thermal Image Scope User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...

  • Page 7: Safety Instruction

    Thermal Image Scope User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
  • Page 8 Thermal Image Scope User Manual ● It is recommended to reboot the device every 2 hours when using it to ensure the device performance. Using Environment ● Make sure the running environment meets the requirement of the device. The operating temperature shall be -20°C to 55°C (-4°F to 131°F), and the operating humidity shall be 95% or less.

  • Page 9: Chapter 1 Overview

    Thermal Image Scope User Manual Chapter 1 Overview 1.1 Device Description The thermal image scope is equipped with high-sensitivity IR detector, and adopts advanced thermal imaging technology, to get clear view in poor visibility or dark environment. It helps to aim at the target, and measuring the distance. It can aim at the moving target and meets the outdoor condition.
  • Page 10 Thermal Image Scope User Manual 1.3 Appearance 1.3.1 Button Figure 1-1 Buttons on Device Table 1-1 Function of Buttons Icon Button Description ● Press: Standby Mode/Wake up Device ● Hold: Power On/Off Power ● Press: Switch Palettes Mode ● Press: Capture ●...
  • Page 11 Thermal Image Scope User Manual ● Press: Correct Non-uniformity of Display Shutter 1.3.2 Interface Figure 1-2 Interfaces of Handheld Camera Figure 1-3 Interfaces of Thermal Telescope...
  • Page 12 Thermal Image Scope User Manual Figure 1-4 Interfaces of Thermal Camera with Daylight Scope Table 1-2 Interface Description Component Function Adjust the distance between the lens and the sensor to view the target Objective Lens much clearer. Focus Ring Adjust the sight view. Bolt Loosen the bolt to install the batteries.

  • Page 13: Chapter 2 Preparation

    Thermal Image Scope User Manual Chapter 2 Preparation 2.1 Cable Connection Connect the device and power adaptor with a type-C cable to power on the device. Alternatively, connect the device and PC to export files. Figure 2-1 Cable Interface 2.2 Install Battery Insert the batteries into the battery compartment.
  • Page 14 Thermal Image Scope User Manual Figure 2-3 Install Batteries 3. Rotate the knob clockwise to tighten it. Take the battery away if the device is not used for a long time. 2.2.1 Select Battery Type You can change the battery type according to your need. Select the correct battery voltage in the device menu.
  • Page 15 Thermal Image Scope User Manual Figure 2-4 Tighten Screws 3. Tighten the knobs to secure the device as arrow 2. Figure 2-5 Secure the Device 2.4 Change Eyepiece The device can be used as a handheld observational camera or a clip-on scope. You can change the eyepiece to realize different use of the device.

  • Page 16: Power On/Off

    Thermal Image Scope User Manual Figure 2-6 Change Eyepiece 2.5 Install Daylight Scope You can use the device together with a daylight scope to view the target clear in daytime. Steps 1. Install the daylight scope into the transfer ring as arrow 1. 2.

  • Page 17: Menu Description

    Thermal Image Scope User Manual Power Off When the device is turned on, hold for 2 seconds to power off the device. 2.7 Menu Description When the device is turned on, press to display the OSD menu. ● Press to move the cursor up. ●...

  • Page 18: Chapter 3 Image Settings

    Thermal Image Scope User Manual Chapter 3 Image Settings 3.1 Adjust Diopter Steps 1. Power on the device. 2. Open the lens cover. 3. Hold the device and make sure the eyepiece covers your eye. 4. Adjust the focus ring until the OSD text or image is clear. Figure 3-1 Adjust Focus Ring Note When adjusting diopter, DO NOT touch the surface of lens to avoid smearing the lens.
  • Page 19 Thermal Image Scope User Manual 3.4 Select Scene You can select proper scene according to actual using scene to improve the display effect. Steps 1. Hold to go to the menu. 2. Select and press to switch scene. – refers to recognition mode and is recommended in normal scene. –...
  • Page 20 Thermal Image Scope User Manual Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.

  • Page 21: Flat Field Correction

    Thermal Image Scope User Manual 3.6 Correct Defective Pixel The device can correct the defective pixels on the screen which are not performed as expected. Steps 1. Hold to show the menu. 2. Select 3. Press , and to move the cursor to the position of dead pixel. 4.
  • Page 22 Thermal Image Scope User Manual Note When you select Upper Right as PIP type, the OSD will be blocked. Figure 3-3 Set Picture in Picture Mode 4. Hold to exit. If digital zoom is enabled, the PIP view also zooms. If the digital zoom ratio exceeds 4, the PIP does not zoom.

  • Page 23: Chapter 4 Highest Temperature Tracking

    Thermal Image Scope User Manual Chapter 4 Highest Temperature Tracking The device can detect the highest temperature spot in the scene and mark it on display. In the menu, select and press to mark the spot of highest temperature. When the function is enabled, displays in the spot of highest temperature.

  • Page 24: Chapter 5 Aiming Point Settings

    Thermal Image Scope User Manual Chapter 5 Aiming Point Settings 5.1 Correct Range Table Enable the range table to aim at the target. Steps 1. In the view mode, hold to show the menu. 2. Select . A crosshair shows in the center of the view. 3.
  • Page 25 Thermal Image Scope User Manual 5.3 Set Crosshair Color The function can change the color of the crosshairs in range table correction display, trajectory correction display, and distance measurement display. Before You Start Enable range table correction first. Steps 1. In the view mode, hold to show the menu.

  • Page 26: Chapter 6 Measure The Distance

    Thermal Image Scope User Manual Chapter 6 Measure the Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected.
  • Page 27 Thermal Image Scope User Manual Figure 6-2 Set the Edge of Target Bottom Result The left top of the image displays the distance measurement result and the height of the target. Figure 6-3 Measurement Result Note Go to distance measurement interface, and press to view the result of the previous measuring target.

  • Page 28: Chapter 7 Picture And Video

    Thermal Image Scope User Manual Chapter 7 Picture and Video You can manually record video or capture picture when displaying live view. 7.1 Capture Picture On the main live view page, press to capture picture. Note ● When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. For exporting captured pictures, refer to Export Files.

  • Page 29: Export Files

    Thermal Image Scope User Manual 7.3 Export Files This function is used to export recorded videos and captured pictures. Before You Start Turn off hot spot function. Steps 1. Connect the device and PC with cable. Note Make sure the device is turned off when connecting the cable. 2.

  • Page 30: Chapter 8 Client Software Connection

    Thermal Image Scope User Manual Chapter 8 Client Software Connection Connect the device to the T-Vision APP via hot spot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold to show the menu of device. 2.

  • Page 31: Chapter 9 Cvbs Output

    Thermal Image Scope User Manual Chapter 9 CVBS Output View the device image on the display unit for details. Before You Start Connect the device to the display unit via CVBS interface of the aviation plug. Steps 1. Hold to show the menu. 2.

  • Page 32: Chapter 10 Language Settings

    Thermal Image Scope User Manual Chapter 10 Language Settings Go to the device menu, select , and press to switch the device language.

  • Page 33: Chapter 11 Maintenance

    Thermal Image Scope User Manual Chapter 11 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 11.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select , and press .

  • Page 34: Chapter 12 Frequently Asked Questions

    Thermal Image Scope User Manual Chapter 12 Frequently Asked Questions 12.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 12.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear.

  • Page 35: Device Command

    Chapter 13 Appendix 13.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for Hikmicro thermal cameras. 13.2 Device Communication Matrix Scan the following QR code to get device communication matrix.
  • Page 36 UD20125B...
