Summary of Contents for Hikmicro HM-TS06-35XF/W-OQ35

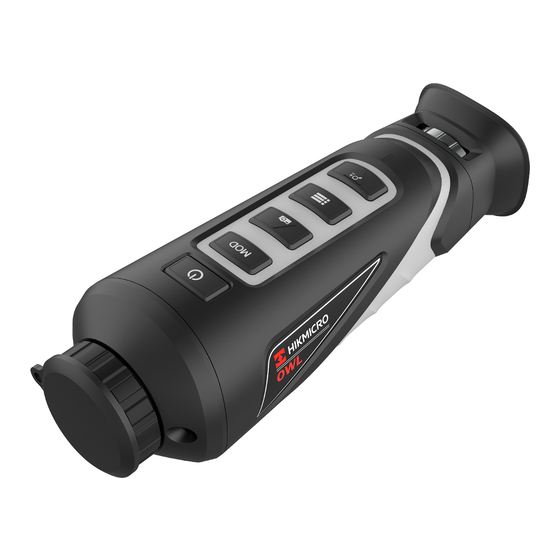

- Page 1 Handheld Thermal Monocular Camera User Manual...
- Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
- Page 3 Handheld Thermal Monocular Camera User Manual CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
- Page 4 Handheld Thermal Monocular Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Handheld Thermal Monocular Camera User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
- Page 6 Handheld Thermal Monocular Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
- Page 7 Handheld Thermal Monocular Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
- Page 8 Handheld Thermal Monocular Camera User Manual ● DO NOT expose the device to high electromagnetic radiation or dusty environments. ● DO NOT aim the lens at the sun or any other bright light. Emergency ● If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the power cable, and contact the service center.
-
Page 9: Table Of Contents
Handheld Thermal Monocular Camera User Manual Table of Contents Chapter 1 Overview........................1 1.1 Brief Description ........................1 1.2 Function ..........................1 1.3 Appearance ..........................2 1.3.1 Button ......................... 2 1.3.2 Interface ........................3 Chapter 2 Preparation ........................ 4 2.1 Charge Device ........................4 2.2 Power On/Off ........................ - Page 10 Handheld Thermal Monocular Camera User Manual Chapter 8 Client Software Connection ..................20 Chapter 9 CVBS Output ......................21 Chapter 10 Language Settings ....................22 Chapter 11 Maintenance ......................23 11.1 View Device Information ....................23 11.2 Upgrade Device ......................... 23 11.3 Restore Device ........................
-
Page 11: Chapter 1 Overview
The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality. Client Software Connection The device can capture snapshots, record videos, and set parameters by HIKMICRO Sight App after being connected to your phone via hotspot. Storage... -
Page 12: Appearance
Handheld Thermal Monocular Camera User Manual 1.3 Appearance 1.3.1 Button Figure 1-1 Buttons on the Device Table 1-1 Function of Button Icon Button Function Power Hold: power on/off Press: palettes Mode Hold: FFC Press: capture Capture Hold: start/stop recording Press: standby mode on/off Menu Hold: display menu or not Zoom... -
Page 13: Interface
Handheld Thermal Monocular Camera User Manual 1.3.2 Interface Figure 1-2 Overview of Interfaces ● Lens Cover: protect the lens from dust or scratch. ● Diopter Adjustment Knob: adjust the view according to your degree of myopia. ● Cable Interface: charge the device or export files with the supplied cable. ●... -
Page 14: Chapter 2 Preparation
Handheld Thermal Monocular Camera User Manual Chapter 2 Preparation 2.1 Charge Device After the device starts up, the OSD (on-screen display) shows the battery status. When the battery is low, charge the device and ensure it works properly. Before You Start ●... -
Page 15: Menu Description
Handheld Thermal Monocular Camera User Manual When the device is connected to cable or the battery is enough, press for 2 seconds to power on the device. Power Off When the device is turned on, hold for 2 seconds to power off the device. Auto Power Off You can set the auto power off time for your device. - Page 16 Handheld Thermal Monocular Camera User Manual ● Press to move the cursor down. ● Press to confirm and hold it to exit the menu.
-
Page 17: Chapter 3 Image Settings
Handheld Thermal Monocular Camera User Manual Chapter 3 Image Settings You can set palettes, brightness, scenes, FFC (flat field correction), and DPC (defective pixel correction) to display the best image effect. 3.1 Adjust Diopter Make sure the eyepiece covers your eye and aims at the target. Adjust the diopter adjustment knob until the OSD text or image is clear. -
Page 18: Focus Lens
Handheld Thermal Monocular Camera User Manual Figure 3-2 Adjust Diopter 3.2 Focus Lens Slightly rotate the focus wheel to focus the objective lens. Figure 3-3 Adjust Objective Lens... -
Page 19: Adjust Brightness
Handheld Thermal Monocular Camera User Manual Note DO NOT touch the lens directly with your finger, or place any sharp objects near them. This function varies according to different camera models 3.3 Adjust Brightness In the menu mode, select and press to adjust brightness. - Page 20 Handheld Thermal Monocular Camera User Manual Black Hot The hot part is black-colored in view. The higher the temperature is, the darker the color is. Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion...
-
Page 21: Adjust Digital Zoom
Handheld Thermal Monocular Camera User Manual From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple. 3.7 Adjust Digital Zoom You can zoom the image by using this function. Press in the view mode, the live view switches between 1 ×, 2 ×, 4 ×, and 8 ×. Note This function varies according to different camera models. -
Page 22: Correct Defective Pixel
Handheld Thermal Monocular Camera User Manual 3.9 Correct Defective Pixel The device can correct the defective pixels on the screen which are not performed as expected. Steps 1. Hold to show the menu. 2. Select 3. Press to select the offset. The offset refers to the moving length of cursor. 4. -
Page 23: Brand Logo
Handheld Thermal Monocular Camera User Manual 3.10 Brand Logo You can add brand logo on the live view interface, captures, and videos. Steps 1. Hold to show the menu. 2. Select 3. Press to enable Brand Logo. 4. Hold to save the settings and exit. Result The brand logo is displayed at the bottom right of the image. - Page 24 Handheld Thermal Monocular Camera User Manual press to change the number. 5. Hold to save settings and exit.
-
Page 25: Chapter 4 Measure The Distance
Handheld Thermal Monocular Camera User Manual Chapter 4 Measure the Distance The device can detect the distance between the target and the observation position. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. -
Page 26: Chapter 5 Burning Prevention
Handheld Thermal Monocular Camera User Manual Chapter 5 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When this function is enabled, the shield will close if the grey scale of the detector reaches a certain value. Steps 1. -
Page 27: Chapter 6 Hot Tracking
Handheld Thermal Monocular Camera User Manual Chapter 6 Hot Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. Hold to show the menu. 2. Select , and press to mark the spot of highest temperature. Result When the function is enabled, displays in the spot of highest temperature. -
Page 28: Chapter 7 Picture And Video
Handheld Thermal Monocular Camera User Manual Chapter 7 Picture and Video You can manually record video or capture picture when displaying live view. 7.1 Capture Picture On the main live view page, press to capture picture. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. For exporting captured pictures, refer to Export Files. -
Page 29: Export Files
● The device displays images when you connect it to PC. But functions such as recording, capturing and hotspot are disabled. ● When you connect the device to PC for the first time, it installs the drive program automatically. ● You can also use the HIKMICRO Sight App to export files. -
Page 30: Chapter 8 Client Software Connection
Handheld Thermal Monocular Camera User Manual Chapter 8 Client Software Connection Connect the device to the HIKMICRO Sight App via hotspot, and then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold to show the menu of device. -
Page 31: Chapter 9 Cvbs Output
Handheld Thermal Monocular Camera User Manual Chapter 9 CVBS Output You can view the image on the display unit for details with this function. Before You Start Connect the device and the display unit via USB to CVBS cable. Make sure the device is turned off when connecting the cable. -
Page 32: Chapter 10 Language Settings
Handheld Thermal Monocular Camera User Manual Chapter 10 Language Settings You can select the device language in this function. Steps 1. Hold to show the menu. 2. Select , and press to enter the language configuration interface. 3. Press to select the language as required, and press to confirm. -
Page 33: Chapter 11 Maintenance
Handheld Thermal Monocular Camera User Manual Chapter 11 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 11.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select and press . -
Page 34: Chapter 12 Frequently Asked Questions
Handheld Thermal Monocular Camera User Manual Chapter 12 Frequently Asked Questions 12.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 12.2 What should I do if I forget the login password? Reset the password after initializing the device. -
Page 35: Chapter 13 Appendix
Chapter 13 Appendix 13.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 13.2 Device Communication Matrix Scan the following QR code to get device communication matrix. - Page 36 UD27840B...
