Summary of Contents for Hikmicro HM-TP21-6VF W-M10

  • Page 1 Handheld Thermography Camera User Manual...
  • Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
  • Page 3 Handheld Thermography Camera User Manual RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 4 Handheld Thermography Camera User Manual 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 5 Handheld Thermography Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
  • Page 6 Handheld Thermography Camera User Manual Battery ● Improper use or replacement of the battery may result in explosion hazard. Replace with the same or equivalent type only. Dispose of used batteries in conformance with the instructions provided by the battery manufacturer. ●...
  • Page 7 Handheld Thermography Camera User Manual burning of skin or inflammable substances. Prevent eyes from direct laser. Before enabling the Light Supplement function, make sure no human or inflammable substances are in front of the laser lens. The wave length is 650 nm, and the power is less than 1 Mw. The laser meets the IEC60825-1:2014 standard.
  • Page 8: Table Of Contents

    Handheld Thermography Camera User Manual Contents Chapter 1 Overview........................9 1.1 Device Description ......................... 9 1.2 Main Function ........................9 1.3 Appearance .......................... 10 Chapter 2 Preparation ......................12 2.1 Charge Device ........................12 2.1.1 Charge Device via Charging Base ................12 2.1.2 Charge Device via Cable Interface ................
  • Page 9 Chapter 7 Light Settings ......................30 7.1 Set LED Light ........................30 7.2 Set Laser ..........................30 Chapter 8 HIKMICRO Viewer APP Connection ................31 8.1 Connect via Wi-Fi ......................... 31 8.2 Connect via Hot Spot ......................32 Chapter 9 Maintenance ......................33 9.1 View Device Information ....................
  • Page 10: Chapter 1 Overview

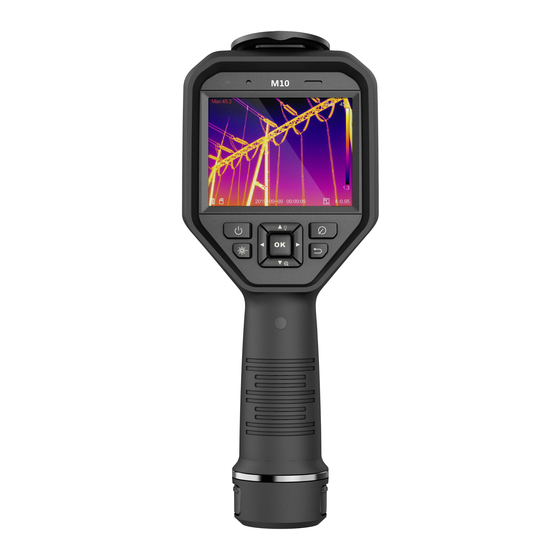

    Chapter 1 Overview 1.1 Device Description HM-TP21-6VF_W-M10 handheld thermography camera is a device with both optical images and thermal images. It can do thermography, video recording, snapshot capturing, alarm, and it can connect to Wi-Fi, hotspot and Bluetooth. The built-in high-sensitivity IR detector and high-performance sensor detects the variation of temperature and measure the real-time temperature.
  • Page 11: Appearance

    Digital Zoom Device supports 1×, 2×, 4×, and 8× digital zoom. LED Light LED light supplement makes the device a torch in required scenarios. Laser Light Long-distance laser light supplement. 1.3 Appearance Figure 1-1 Appearance Focus Knob Lens Cover Thermal LED Light Lens Laser...
  • Page 12 Component Function Laser Button Hold the button to turn on laser, and release the button to turn off laser. Menu Mode: ● Press to select parameters. ● Press to confirm. Navigation Button Non-Menu Mode: ● Press to turn on/off the LED light supplement. ●...
  • Page 13: Chapter 2 Preparation

    Chapter 2 Preparation 2.1 Charge Device 2.1.1 Charge Device via Charging Base Steps Note  Please charge the device with the cable and power adapter supplied by the manufacturer (or according to the input voltage from the specifications).  For the first charge, charge the device for 48 to 72 hours when the device is turned on. 1.
  • Page 14: Charge Device Via Cable Interface

    Figure 2-2 Charge Battery 4. When the battery is fully charged, draw the battery from the charging base. 5. Align the ribbed piece on battery with the notch of the device, and insert battery into the device. Figure 2-3 Insert Battery 2.1.2 Charge Device via Cable Interface Before You Start Please make sure the battery is installed before charging.
  • Page 15: Set Auto Power-Off Duration

    Power Off When the device is turned on, hold for three seconds to power off the device. 2.2.1 Set Auto Power-off Duration Go to Local Settings → Device Settings → Auto Power-off Duration Settings to set the automatic shutdown time for device as required. 2.3 Operation Method The device supports both touch-screen control and button control.
  • Page 16: Menu Description

    Figure 2-5 Button Control ● Press , and to move the cursor up/down/left/right. ● Press to confirm. 2.4 Menu Description In the observation interface, tap the screen or press to show the menu bar. Figure 2-6 Menu UD21457B-A...
  • Page 17: Chapter 3 Display Settings

    Chapter 3 Display Settings 3.1 Focus Lens Adjust the lens focal length properly before you set any other configurations, or it may affect the image display and temperature accuracy. Steps 1. Power on the device. 2. Aim the device lens to the appropriate scene. 3.
  • Page 18: Set Palettes

    2. Tap on the icons to select a view mode. In thermal mode, the device displays the thermal view. In fusion mode, the device displays the combined view of thermal channel and optical channel. Note You can press to set the fusion distance. Or go to Local Settings → Image Settings →...
  • Page 19: Adjust Digital Zoom

    Figure 3-2 Palette 2. Tap on the icons to select a palette type. White Hot The hot part is light-colored in view. Black Hot The hot part is black-colored in view. Rainbow The target displays multiple colors, it is suitable for scene without obvious temperature difference.
  • Page 20: Display Osd Info

    3.6 Display OSD Info Go to Local Settings → Image Settings → Display Settings to enable the corresponding icons. Then you can view the device status, time, and target emissivity in live view interface. UD21457B-A...
  • Page 21: Chapter 4 Temperature Measurement

    Chapter 4 Temperature Measurement The thermography (temperature measurement) function provides the real-time temperature of the scene and display it on the left of your screen. The thermography function is turned on by default. 4.1 Set Thermography Parameters You can set thermography parameters to improve the accuracy of temperature measurement. Steps 1.
  • Page 22: Set Unit

    Note You can go to Local Settings → Device Settings → Device Initialization → Measurement Tool Initialization to initialize the temperature measurement parameters. 4.1.1 Set Unit Go to Local Settings → Device Settings → Unit to set the temperature unit and distance unit. Note You can go to Local Settings →...
  • Page 23: Set Point Rule

    2. Set the point, line, or frame rules. See figure below. Figure 4-1 Set Thermography Rule 4.3.1 Set Point Rule You can set four types of point thermography rules. Table 4-1 Icon Description Icon Description Center Point Thermography High-temperature Point Thermography Low-temperature Point Thermography Custom Point Thermography The setting method of center point, high-temperature, and low-temperature point thermography...
  • Page 24: Set Line Rule

    The temperature of custom point (e.g. P1) displays P1: XX. 5. Repeat step 1 to 3 to set other custom points. Note At most ten custom points supported. 4.3.2 Set Line Rule Steps 1. Select 2. Press to generate a default line. 3.
  • Page 25: Delete Rules

    4.3.4 Delete Rules and press to clear all temperature rules. Or tap and choose the single rule you want to delete. 4.4 Set Temperature Alarm Set the alarm rules and the device will alarm when the temperature triggers the rule. Before You Start Set the palette.
  • Page 26: Chapter 5 Picture And Video

    Chapter 5 Picture and Video Insert memory card into the device, then you can record videos, capture snapshots, and mark and save important data. Note ● Device does not support capturing or recording when the menu is shown. ● When the device is connected to your PC, it does not support capturing or recording. ●...
  • Page 27: Record Video

    Figure 5-1 Capture Picture 8. The live view freezes and device displays the capture editing interface. 1) Tap to add text remarks. Tap the screen to show the keypad interface, enter the comment and confirm. 2) Tap to add voice remarks. Hold to start recording and release the button to stop recording.
  • Page 28: View Recorded Files

    Figure 5-2 Record Video 2. When you finish, pull the trigger again to stop recording. The recording video will be saved automatically and exit. Note You can also press to stop recording. 3. Refer to Export Files to export the snapshots. 5.3 View Recorded Files Steps 1.
  • Page 29 captured snapshots. Steps 1. Open the cover of cable interface. 2. Connect the device to your PC with cable and open the detected disk. 3. Select and copy the videos or snapshots to PC to view the files. 4. Disconnect the device from your PC. Note For the first time connection, the driver will be installed automatically.
  • Page 30: Chapter 6 Connect Bluetooth

    Chapter 6 Connect Bluetooth You can record and hear the sound contained in the videos or images via bluetooth headsets after pairing the device with bluetooth headsets successfully. Steps 1. Select from the main menu. 2. Go to Local Settings → Device Settings → Bluetooth. 3.
  • Page 31: Chapter 7 Light Settings

    Chapter 7 Light Settings 7.1 Set LED Light Go to Local Settings → Device Settings → Light Supplement. Tap to enable LED light, or press in the live view to enable/disable the LED light. 7.2 Set Laser In the live view interface, hold to enable/disable the laser light.
  • Page 32: Chapter 8 Hikmicro Viewer App Connection

    Chapter 8 HIKMICRO Viewer APP Connection The device supports both Wi-Fi connection and WLAN hot spot. Connect the device to HIKMICRO Viewer client software, and you can control the device via mobile client. 8.1 Connect via Wi-Fi Before You Start Download and install client software on your phone.
  • Page 33: Connect Via Hot Spot

    8.2 Connect via Hot Spot Before You Start Download and install client software on your phone. Steps 1. Go to Local Settings → Device Settings → Wi-Fi Hotspot Settings. 2. Tap to enable WLAN hot spot function. 3. Tap Set Hot Spot to set the WLAN hot spot. The hot spot name and password display automatically.
  • Page 34: Chapter 9 Maintenance

    Chapter 9 Maintenance 9.1 View Device Information Go to Local Settings → Device Information to view the device information. 9.2 Set Date and Time Steps 1. Go to Local Settings → Device Settings → Time and Date. 2. Set the date and time. 3.
  • Page 35: Chapter 10 Appendix

    Chapter 10 Appendix 10.1 Common Material Emissivity Reference Material Emissivity Human Skin 0.98 Printed Curcuit Board 0.91 Concrete 0.95 Ceramic 0.92 Rubber 0.95 Paint 0.93 Wood 0.85 Pitch 0.96 Brick 0.95 Sand 0.90 Soil 0.92 Cloth 0.98 Hard Paperboard 0.90 White Paper 0.90 Water...
  • Page 36 UD21457B-A...
