Summary of Contents for Hikmicro GRYPHON GH35L
- Page 1 Handheld Thermal Monocular Camera User Manual...
- Page 2 INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
- Page 3 Handheld Thermal Monocular Camera User Manual NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
- Page 4 Handheld Thermal Monocular Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Handheld Thermal Monocular Camera User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
- Page 6 Handheld Thermal Monocular Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance...
- Page 7 Handheld Thermal Monocular Camera User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Laws and Regulations ● Use of the product must be in strict compliance with the local electrical safety regulations. Transportation ●...
- Page 8 Handheld Thermal Monocular Camera User Manual consistent with that of the device. Maintenance ● If the product does not work properly, please contact your dealer or the nearest service center. We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.
- Page 9 Handheld Thermal Monocular Camera User Manual different countries. viii...
-
Page 10: Table Of Contents
Handheld Thermal Monocular Camera User Manual Table of Contents Chapter 1 Overview........................1 1.1 Device Description ......................... 1 1.2 Main Function ........................1 1.3 Appearance ..........................1 Chapter 2 Preparation ........................ 5 2.1 Connect Device ........................5 2.2 Install Battery ........................5 2.3 Power On/Off ........................ - Page 11 Handheld Thermal Monocular Camera User Manual Chapter 8 Client Software Connection ..................19 Chapter 9 CVBS Output ......................20 9.1 Cable Connection ......................... 20 Chapter 10 Language Settings ....................21 Chapter 11 Maintenance ......................22 11.1 View Device Information ....................22 11.2 Upgrade Device .........................
-
Page 12: Chapter 1 Overview

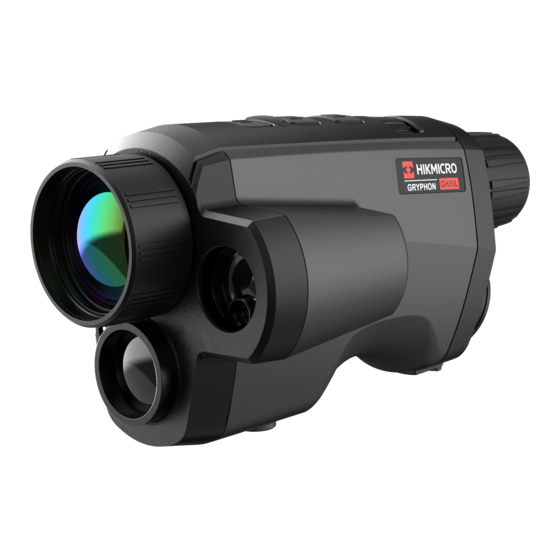

Handheld Thermal Monocular Camera User Manual Chapter 1 Overview 1.1 Device Description The handheld thermal monocular camera has both thermal observation function and target searching function, and adopts the thermal imaging technology, to get clear view in poor visibility or dark environment. It helps to view the target, and measure the distance in outdoor condition. - Page 13 Handheld Thermal Monocular Camera User Manual Figure 1-1 Appearance I of the Device...
- Page 14 Handheld Thermal Monocular Camera User Manual Figure 1-2 Appearance II of the Device Table 1-1 Buttons and Component of Two Appearances Description Function Thermal Lens ● View the thermal image Optical Lens ● View the optical image Laser Range ● Measure the distance with laser. Finder ●...
- Page 15 Handheld Thermal Monocular Camera User Manual Description Function ● Press: Capture Measure Key ● Hold: Measure the distance with laser ● Press: Palettes Menu Key ● Hold: Enter/exit the menu ● Adjust the digital zoom Wheel ● Select functions in menu mode ●...
-
Page 16: Chapter 2 Preparation
Handheld Thermal Monocular Camera User Manual Chapter 2 Preparation 2.1 Connect Device Before You Start Turn on the device after connecting it to your PC, and keep the device on for 10 to 15 seconds before other operations. Steps 1. Lift the cable interface cover. 2. -
Page 17: Power On/Off
Handheld Thermal Monocular Camera User Manual Figure 2-2 Install the Battery 3. Align the marks on the battery cover and the device, and put the battery cover on the battery. Figure 2-3 Install the Battery Cover 4. Rotate the battery cover clockwise to fix it. Note ●... -
Page 18: Menu Description
Handheld Thermal Monocular Camera User Manual When the device is turned on, hold for 2 seconds to power off the device. Note ● See the battery icon for the electricity quantity. means the battery is fully charged, and means that the battery is low. ●... -
Page 19: Chapter 3 Image Settings
Handheld Thermal Monocular Camera User Manual Chapter 3 Image Settings 3.1 Set Focus Steps 1. Power on the device. 2. Hold the device and make sure the eyepiece covers your eye. 3. Adjust the focus ring until the image is clear. Note When focusing, do not touch the surface of lens to avoid smearing the lens. -
Page 20: Set Palettes
Handheld Thermal Monocular Camera User Manual 3. Hold to save settings and exit. 3.5 Set Palettes You can select different palettes to display the same scene in different effects. Press in live view interface to switch palettes. Optical The image of optical channel is displayed in this mode. White Hot The hot part is light-colored in view. - Page 21 Handheld Thermal Monocular Camera User Manual Red Hot The hot part is red-colored in view. The higher the temperature is, the redder the color is. Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple.
-
Page 22: Set Fusion Level
Handheld Thermal Monocular Camera User Manual this mode. 3.6 Set Fusion Level When the palette is set as image fusion, you can adjust the fusion level according to the actual observation distance to obtain better image fusion effect. Steps 1. Hold to show the menu. -
Page 23: Image Calibration
Handheld Thermal Monocular Camera User Manual mirrored to the top of the interface. ● The selected defective pixel can be magnified and displayed at the bottom right of the interface. Figure 3-2 Correct Defective Pixel 3.9 Image Calibration This function can correct non-uniformity of display. Steps 1. -
Page 24: Synchronize Time
Handheld Thermal Monocular Camera User Manual 3.10.1 Synchronize Time Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to enter the time setting interface. 3. Press to switch the time system, and rotate the wheel to select the time and date to be synchronized. -
Page 25: Chapter 4 Burning Prevention
Handheld Thermal Monocular Camera User Manual Chapter 4 Burning Prevention This function can prevent the detector of the thermal channel from being burned. When enabling this function, the shield will close if the grey scale of the detector reaches a certain value. Steps 1. -
Page 26: Chapter 5 Highest Temperature Tracking
Handheld Thermal Monocular Camera User Manual Chapter 5 Highest Temperature Tracking The device can detect the highest temperature spot in the scene and mark it on display. Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to mark the spot of highest temperature. -
Page 27: Chapter 6 Measure Distance
Handheld Thermal Monocular Camera User Manual Chapter 6 Measure Distance The device can detect the distance between the target and the observation position with laser. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. -
Page 28: Chapter 7 Picture And Video
Handheld Thermal Monocular Camera User Manual Chapter 7 Picture and Video You can manually record video or capture picture when displaying live view. 7.1 Capture Picture In the main live view interface, press to capture picture. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. For exporting captured pictures, refer to Export Files. -
Page 29: Export Files
Handheld Thermal Monocular Camera User Manual 7.3 Export Files This function is used to export recorded videos and captured pictures. Before You Start ● Turn off the hotspot function. ● Turn on the device after connecting it to your PC, and keep the device on for 10 to 15 seconds before other operations. -
Page 30: Chapter 8 Client Software Connection
Handheld Thermal Monocular Camera User Manual Chapter 8 Client Software Connection Connect the device to the T-Vision App via hotspot, then you can capture picture, record video, or configure parameters on your phone. Steps 1. Hold to show the menu of device. 2. -
Page 31: Chapter 9 Cvbs Output
Handheld Thermal Monocular Camera User Manual Chapter 9 CVBS Output View the device image on the display unit for details. Before You Start Connect the device to the display unit via CVBS interface of the aviation plug. Refer to Section Cable Connection. -
Page 32: Chapter 10 Language Settings
Handheld Thermal Monocular Camera User Manual Chapter 10 Language Settings You can select the device language in this function. Steps 1. Hold to show the menu. 2. Rotate the wheel to select , and press to enter the language configuration interface. 3. -
Page 33: Chapter 11 Maintenance
Handheld Thermal Monocular Camera User Manual Chapter 11 Maintenance This part introduces the operation of checking device information, upgrading device, and restoring to defaults, etc. 11.1 View Device Information Steps 1. Hold to show the menu of device. 2. Select , and press . -
Page 34: Chapter 12 Frequently Asked Questions
Handheld Thermal Monocular Camera User Manual Chapter 12 Frequently Asked Questions 12.1 Why is the monitor off? Check whether the device is off-battery. Check the monitor after charging the device for 5 minutes. 12.2 The image is not clear, how to adjust it? Adjust the diopter adjustment knob until the image is clear. -
Page 35: Chapter 13 Appendix
Chapter 13 Appendix 13.1 Device Command Scan the following QR code to get device common serial port commands. Note that the command list contains the commonly used serial port commands for HIKMICRO thermal cameras. 13.2 Device Communication Matrix Scan the following QR code to get device communication matrix. - Page 36 UD25396B...
