Wyrestorm TX-35-IWC-KVM Quick Start Manual page 3

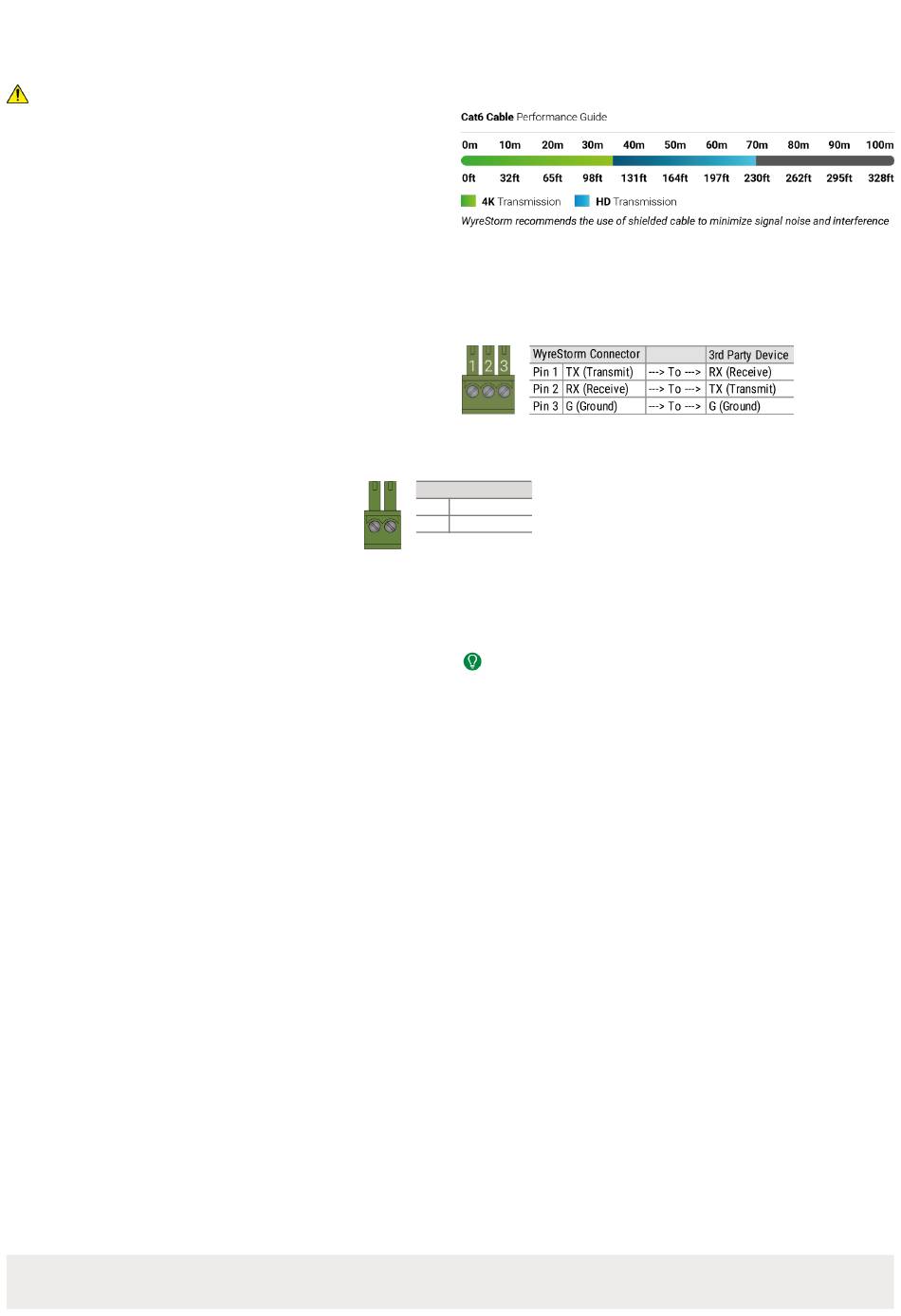

Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the transmitter. Read through this section in its
entirety before running or terminating any wires to ensure proper operation and to avoid damaging the equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable transmitters, kinks in cables, and
electrical or environmental interference will have an adverse effect on signal
transmission which may limit performance. Steps should be taken to
minimize or remove these factors completely during installation for best
results.
Communication Connections
RS-232 Wiring
The TX-35-IWC-KVM uses a 3-pin RS-232 with no hardware flow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary from
device to device. Refer to the documentation for the connected device for pin
functionally to ensure that the correct connections can be made.
Power Wiring
The TX-35-IWC-KVM uses a 2-pin Terminal Connector if not
powereed by PoH from receiver (12v 3a PSU not included)
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that the HDMI inputs and HDMI output connections are not loose and
are functioning property.
• Verify that the output resolution of the source and display is supported by
this transmitter.
• If transmitting 4K, verify that the HDMI cables used are 4K rated.
Copyright © 2024 WyreStorm ProAV Corporation | Copyright © 2024 WyreStorm ProAV Corporation |
TX-35-IWC-KVM Quickstart Guide | 241003 TX-35-IWC-KVM Quickstart Guide | 241003
WyreStorm Connector
1 2
Pin 1 PWR
Pin 2 PWR - (Negative)
wyrestorm.com wyrestorm.com
3 of 4
3-Pin Phoenix
(Positive)
+
No or Intermittent 3rd party Device Control
Verify that the RS-232 cables are properly terminated.
Troubleshooting Tips:
WyreStorm recommends using a cable tester or connecting the cable to other
devices to verify functionality.
