Wyrestorm TX-SW-IW-0201 Quick Start Manual

2x1 HDMI/VGA over HDBaseT™ Auto-Switching 2-Gang
In Wall Transmitter (100m/328ft)
TX-SW-IW-0201
A PoH compatible HDBaseT transmitter with VGA & HDMI inputs, fitting into a decora 2-Gang wall box.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.

In the Box

1 x TX-SW-IW-0201 HDBaseT Wall Plate Transmitter
1 x 3-pin Plug-in Phoenix Connector
2 x 2pin-plug-in phoenix connectors
1 x Decorative Wall Plate with 4 screws
4 x 6-32x20mm Installation Screws

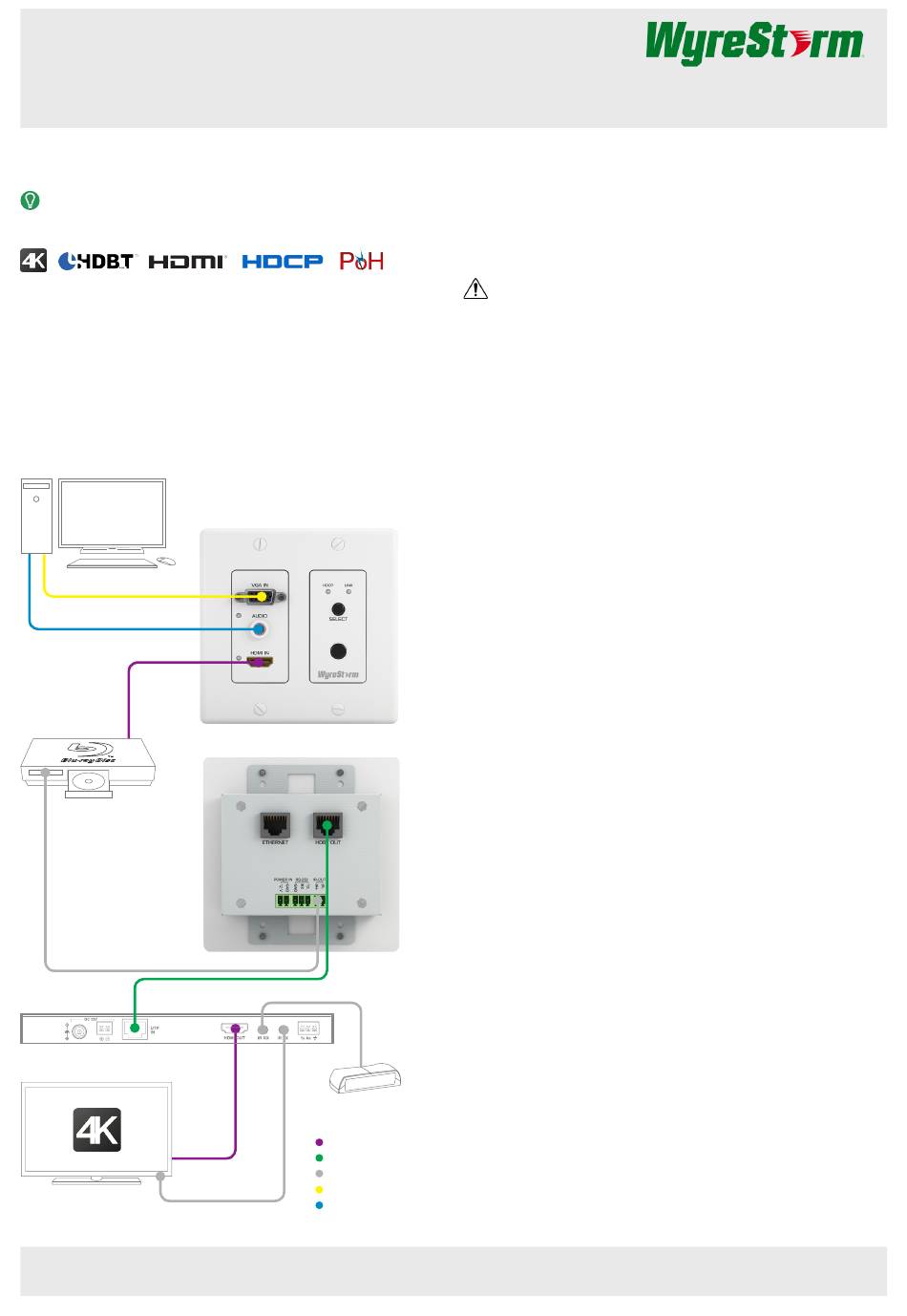

Basic Wiring Diagram
VGA Source
VGA from Source
Audio from Source
HDMI from Source
HDMI Source
HDBaseT Cat5e/6
4K HDMI Display
Copyright © 2015 WyreStorm Technologies |
TX-SW-IW-0201 Quickstart Guide | 150828

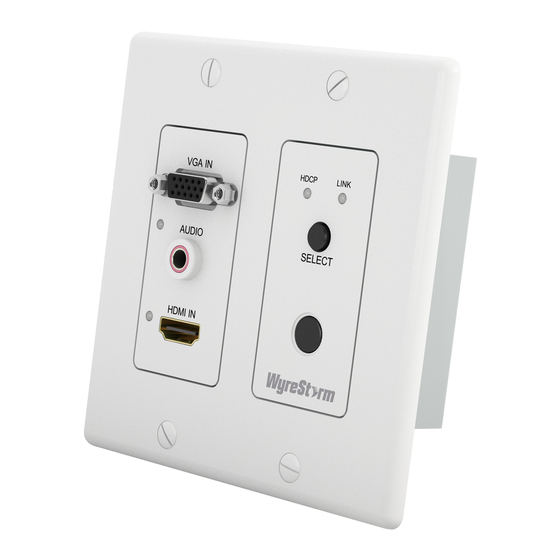

TX-SW-IW-0201 Front (with wall-plate)
TX-SW-IW-0201 Rear
IR Out to Source
IR RX (IR to Transmitter)
HDMI to
Display
KEY
HDMI
HDBaseT Cat5e/6
IR TX and RX
Analog Video (VGA)
IR TX to Display
Analog Audio
wyrestorm.com

Installation

IMPORTANT! Do not connect or disconnect (hot plug) the HDMI, or
HDBaseT connections while the transmitter is powered on. Doing so may
cause damage to the transmitter or connected devices.
1. Verify that all items are included in the packaging per the list under
the In the Box section.
2. Run a Cat5/5e/6 cable from the transmitter location to the receiver
location. Terminate the cable per the
connect to the HDBT Out on the transmitter.
3. (Optional) Terminate an IR emitter or cable per the
and connect to the IR Out on the transmitter. Place the IR emitter
onto the source device near the IR receiver or connect to an IR port
on the source.
4. (Optional) Terminate a cable per the
connect to the RS-232 pass-through on the transmitter. Connect the
opposite end to a port on a control system.
5. Connect the opposite end of the HDBaseT cable to a
HDBaseT receiver, switcher, or 3rd party display device with built-in
HDBaseT receiver. Power on the receiver.
6. (Optional) If power for the transmitter is not being supplied by the
receiver via PoH, connect a 12V DC 1A power supply (not included)
to the Power In connection on the transmitter. See
Wiring.
7. Install the TX-SW-IW-0201 in a dual-gang wall box located near the
source.
8. Connect up to 2 sources to the transmitter.
• Connect a VGA source to the VGA In on the transmitter.
• Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as
Express.
9. Power on the HDBaseT receiver or connect the power supply to an
AC outlet.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
Hdbaset Wiring section and
Ir Wiring section
Rs-232 Wiring section and
WyreStorm
Power Supply
WyreStorm
